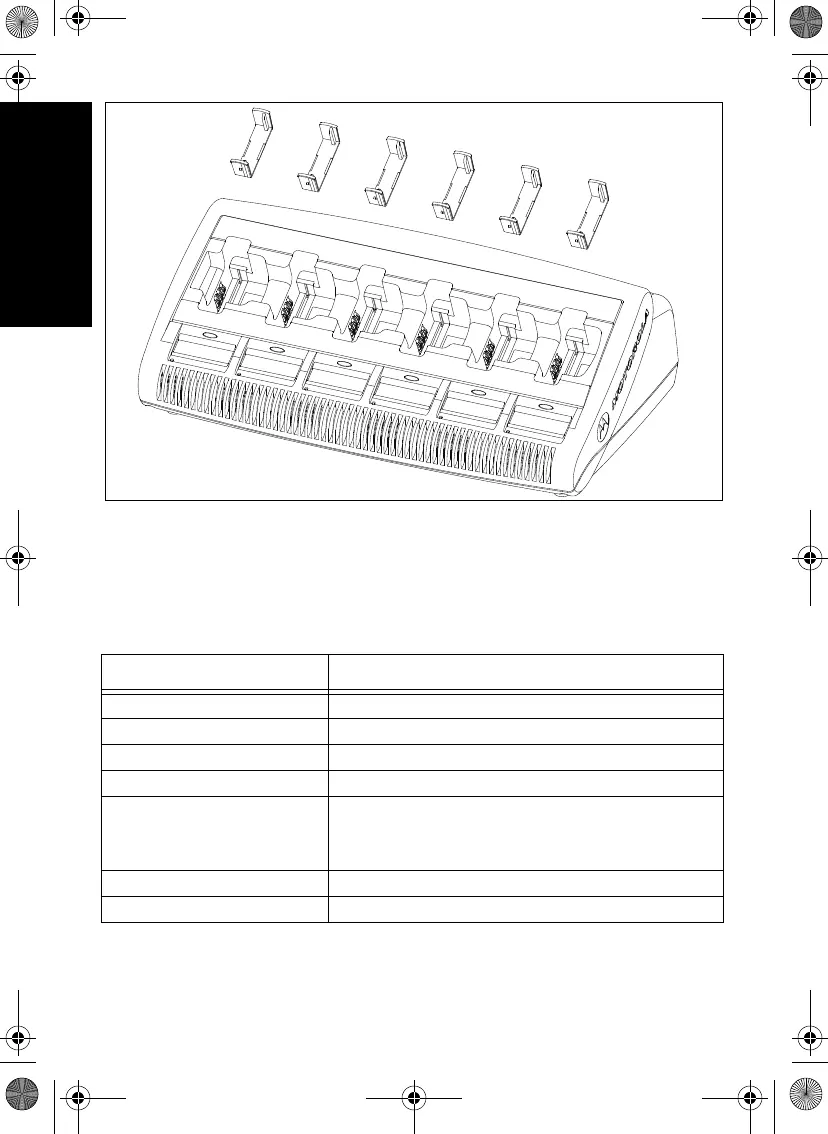

Figure 2: Battery Locating Rail Removed
TROUBLESHOOTING
When troubleshooting, always observe the charging indicators in Table 3:
Table 3: Battery Charging Indicators
Charger Indicator Description
No indication Battery is inserted incorrectly.
Single green blink Successful charger power-up.
Blinking red Battery is unchargeable or not making proper contact.
Steady red Battery is in rapid-charge mode.
Blinking Orange Battery is recognized by charger but is waiting to charge.
(Either the battery voltage is too low or the battery temperature
is too low or too high to allow charging. When this condition is
corrected, the battery will automatically begin charging).
Blinking green Battery is charged (to 90% or greater capacity).
Steady green Battery is fully charged.
