Chapter 2 Theory of Operation
2.1 Introduction
This section provides a detailed theory of operation for the radio and its components.
2.2 Radio Power Distribution

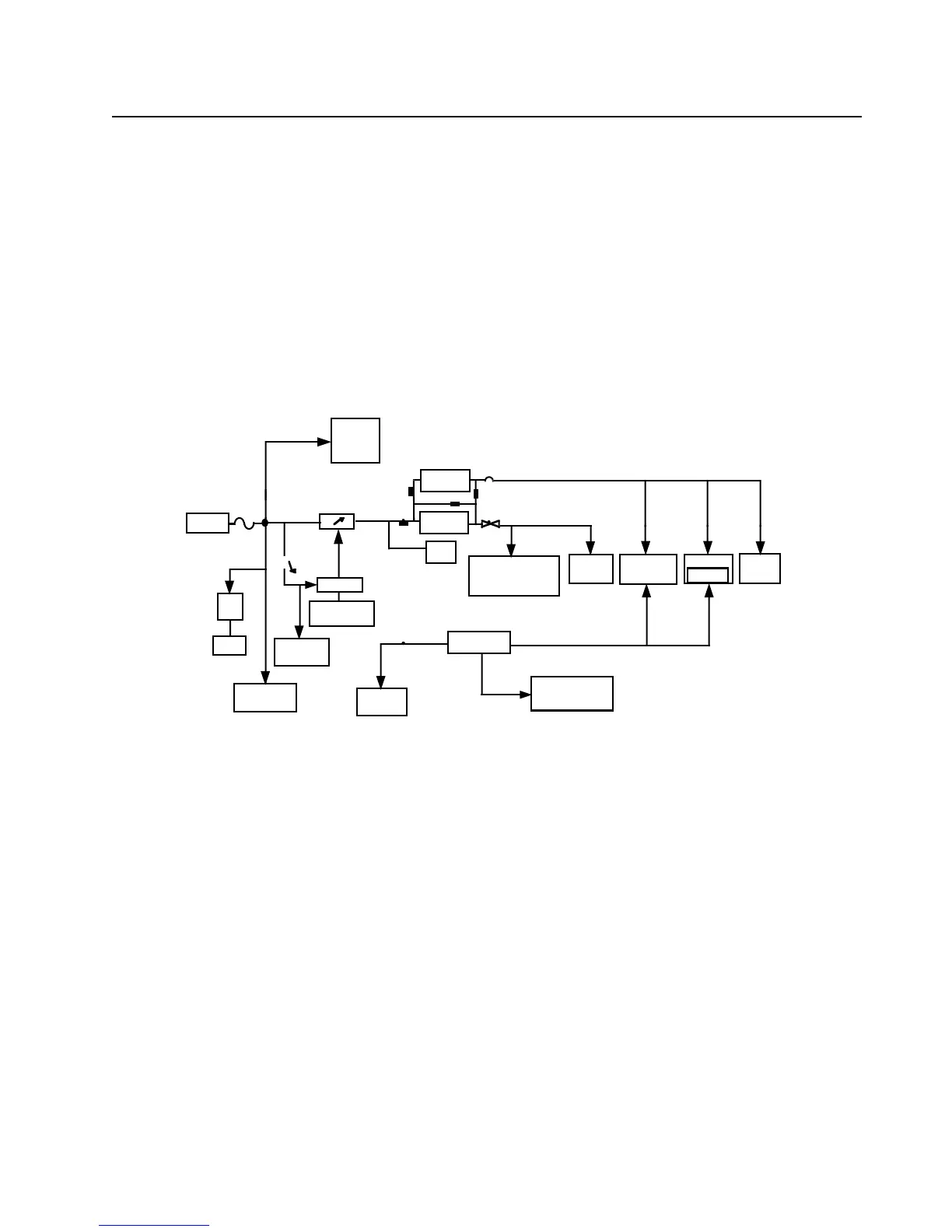

Figure 2-1. DC Power Distribution Block Diagram
A Block diagram of the DC power distribution throughout the radio board is shown in Figure 2-1. A
7.5V battery (BATT 7.5V) supplies power directly to the electronic ON/OFF control as UNSWB+.
When the radio is turned on, MECH_SWB+ (ON/OFF volume control) will trigger the electronic ON/
OFF control (momentary-on path), then SWB+ is distributed. Vdda from 3.3V Vdda regulator will then
supply the microprocessor. Data is then sent to ASFIC_CMP to turn on GCB4(DAC). GCB4 will take
over the momentary-on path within 12ms. SWB+ will continue to support the whole board until the
radio is turned off.
Radio will be turned-off on two conditions;
1. MECH_SWB+ turned off
2. Low battery
When low battery level is detected by the microprocessor through both conditions above, it will store
the radio personality data to EEPROM before turning off.
