4-4 RF - Controller Interconnect Flex
4.2.5 Universal Connector Flex Plain

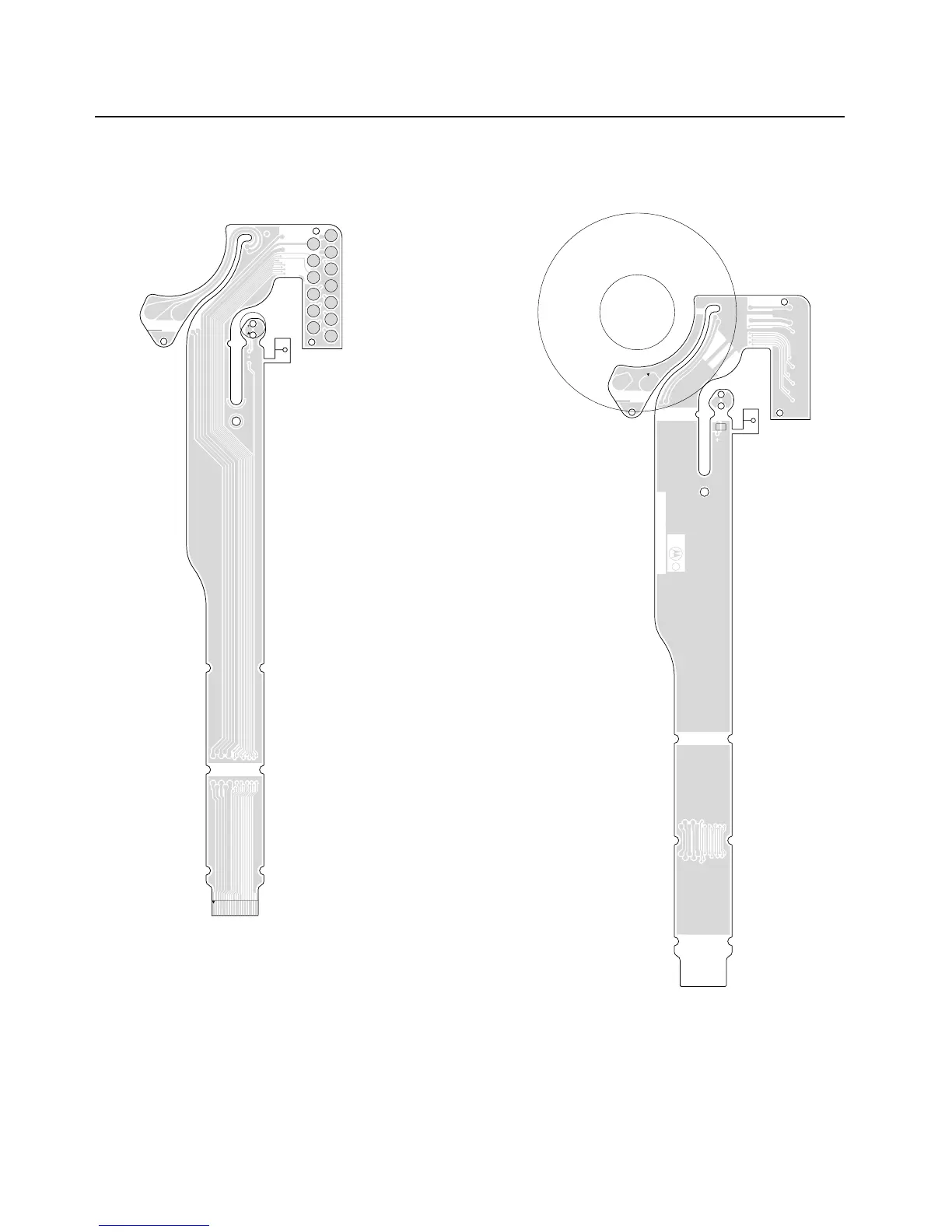

Figure 4-5. Universal Flex Connector Plain
Back Metal
View From Top Side
c
98
8480549Z03 rev B
C402
M400
20
J403
J404
J405
J406
J407
J408
J409
J410
J411
J412
J413
J414
J415
J416
M401
Front Metal
View From Top Side
