Motorola RFS6000 Configuration Guide

Motorola: RFS 6000 Wireless Switch with AP300
PN: 1725-36197-001_A.doc
11

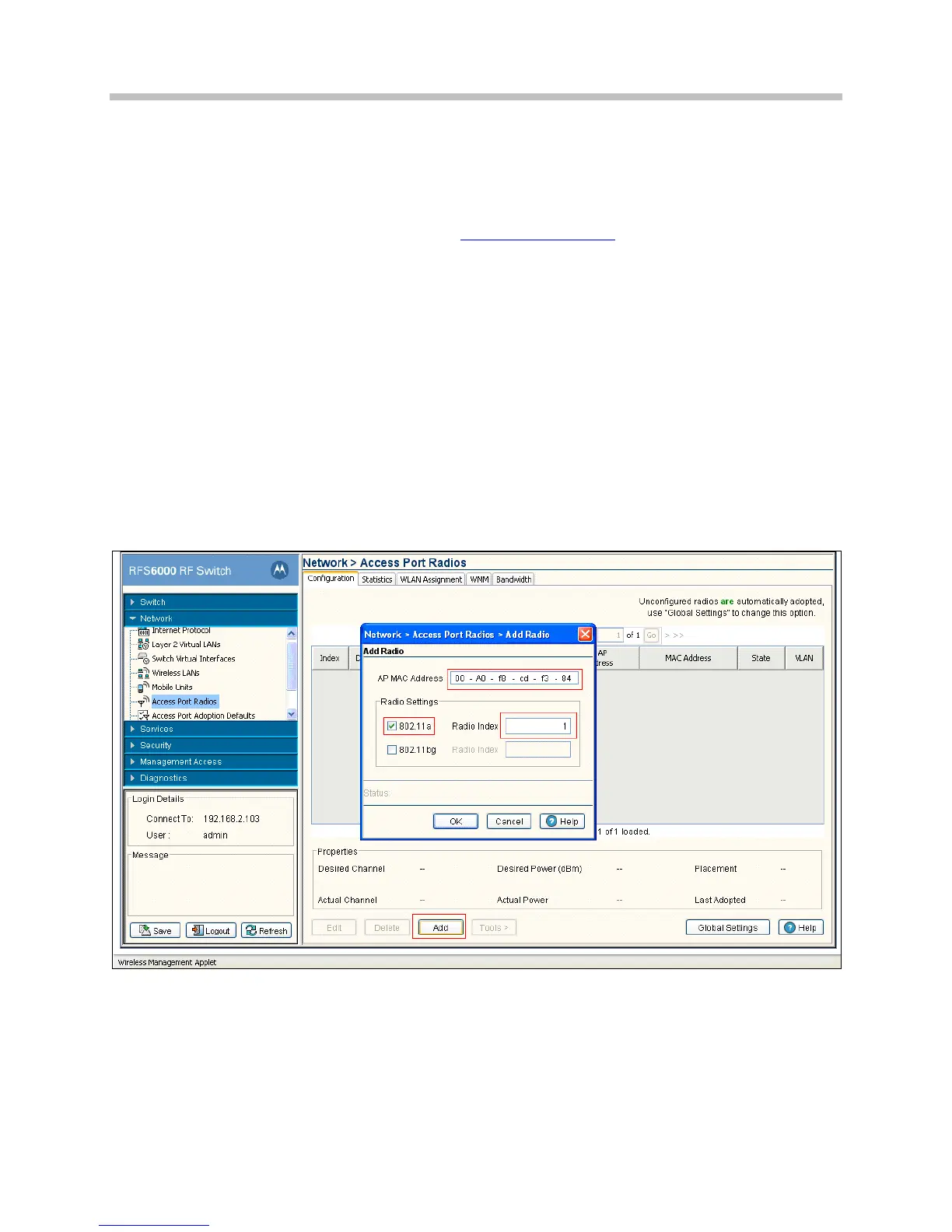

Configuring radio settings through the Web interface
1. Open the RFS6000 applet by entering the IP address of the
wireless switch: http://192.168.2.103
2. In the navigation pane under
Network, click Access Port Radios.
3. In the
Configuration screen, click the Add button.
4. In the
Add Radio dialog box, set the AP MAC Address
(same for 802.11a and 802.11bg).
5. Select the appropriate
Radio Setting to match the radio setting on
the SpectraLink Wireless Telephones:
a. Select the
802.11a check box if the handsets are configured for
802.11a.
b. Select the
802.11bg check box if the handsets are configured
for 802.11g only or 802.11b & b/g mixed mode.
6. Click
OK.
