2-4 Overview
MB*/* Installation and Operation Manual

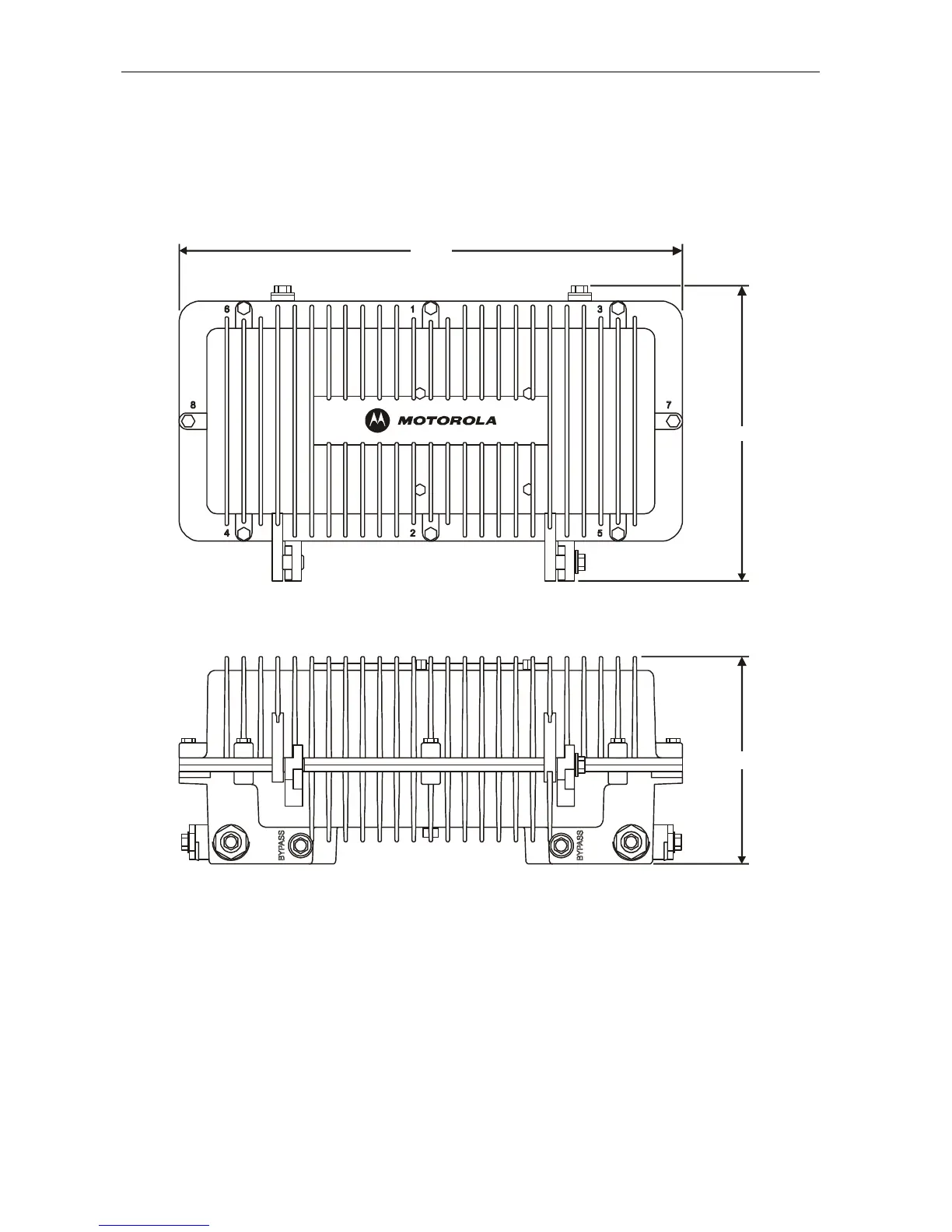

Figure 2-5 provides top and side view dimensions of the optional MBP-HSG bypass housing:
Figure 2-5
MBP-HSG dimensions
17.7
10.4
7.3
Coaxial cable connections to the housing are made using conventional 5/8 × 24 threads per-inch
stinger-type connectors. Five port plugs in the cover enable access to internal test points
without opening the housing.
The interior platform assembly of the 15A MB-HSG differs from the platform assembly of the
10A MB-HSG (earlier models MB-550D-H, MB-750D-H, and MB-75SH, AH, and JH). However,
you can upgrade the 10A MB*/* to a 15A MB*/* using existing housings. To upgrade the
MB-550D-H or MB-750D-H, use the MB-15A kit P/N 951941-005-00. To upgrade the MB-75SH,
AH, or JH, use the MB-15AII platform assembly kit P/N 951941-007-00. Both kits can be used
in either the standard or bypass housing. Replacing the housing cover brings the test ports in
line with the output test points for both the forward and return signal path.
