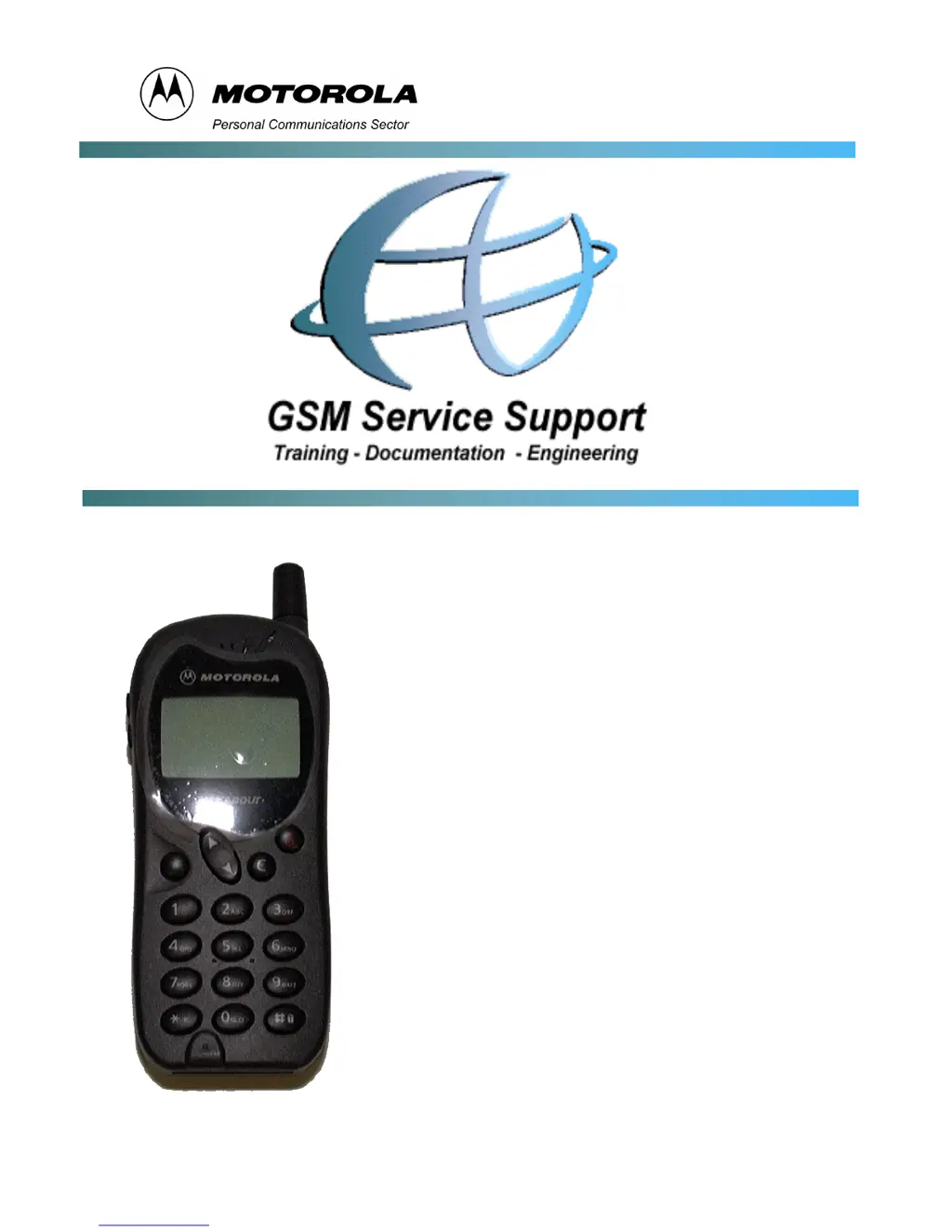

Motorola T200 - User Manual

Questions and Answers

M
Michelle MillerAug 14, 2025
Why my Motorola Cell Phone will not turn on?
- J
  Jacob MilesAug 14, 2025
  If your Motorola Cell Phone won't turn on or stay on, there are a few potential causes. First, the battery pack may be discharged or defective; measure the battery voltage. If it's less than 3.6V dc, recharge it with the appropriate charger. If it won't recharge, replace the battery. Second, the battery connectors might be open or misaligned. Visually inspect the four battery connectors on both the battery and the phone. If necessary, replace the battery. Finally, the Logic/RF Board Assembly could be defective. In this case, remove the Logic/RF Assembly and substitute it with a known good one to test if the unit turns on and stays on.
W
William CurryAug 18, 2025
What to do if my Motorola T200 has poor reception?
- B
  Billy WolfAug 18, 2025
  If your Motorola Cell Phone has poor reception or erratic operation, like dropped calls or distorted audio, the antenna might be defective. Check to make sure the antenna pin is properly connected to the Logic/RF assembly. Alternatively, the Logic/RF Board Assembly may be defective, in which case it should be replaced.
S
Shawn SmithAug 21, 2025
Why is the sound weak on my Motorola T200 Cell Phone?
- J
  Jennifer HowellAug 21, 2025
  If the audio from your Motorola Cell Phone's speaker is weak or distorted, check the connections to and from the speaker and the Logic/RF circuit board. Check the contact springs on the Logic/RF circuit board and clean the pads if necessary. Another potential cause is a defective earpiece speaker. Remove the speaker from the front housing and insert a known good speaker to test for improvement. Also, check to ensure that the antenna pin is properly connected into the Logic/ RF assembly. If none of these steps resolve the issue, the Logic/RF Board Assembly may be defective and require replacement.
J
Jessica ClarkAug 25, 2025
How to fix Motorola T200 if it doesn't recognize SIM card?
- T
  Travis CalhounAug 25, 2025
  If your Motorola Cell Phone doesn't recognize the SIM card, first check if the card's contacts are dirty and that the SIM retention latch is fully pushed across. Clean the contacts if needed and check if the problem is resolved. If not, the SIM retention latch may be defective, and you should replace the rear housing with a known good one, ensuring the latch is fully pushed across. As a last resort, the Logic/RF Board Assembly could be defective, and it should be replaced.
P
paynesarahAug 28, 2025
What to do if internal charger is not working on Motorola T200?
- D
  David EwingAug 28, 2025
  If the internal charger on your Motorola Cell Phone isn't working, first try charging the unit with a known good charger. If it charges okay, then the original charger is faulty and should be replaced. If the problem persists, the Logic/RF Board Assembly may be defective and require replacement.
J
John AlexanderAug 31, 2025
Why is the display erratic on my Motorola Cell Phone?
- J
  joel08Aug 31, 2025
  If the display on your Motorola Cell Phone is erratic, partial, or completely blank, the Logic/RF Board Assembly may be defective and require replacement.
A
angelacoleSep 4, 2025
How to fix weak vibrate function on Motorola T200?
- A
  Amanda DonaldsonSep 4, 2025
  If your Motorola Cell Phone has a weak or non-existent vibrate function, the vibrate motor may be defective. Access the vibrate motor, unplug it, and replace it with a known good assembly to resolve this. Alternatively, the Logic/RF Board Assembly may be defective.
G
George RodriguezSep 7, 2025
What causes distorted incoming call alert on Motorola T200 Cell Phone?
- G
  Gabriel StevensonSep 7, 2025
  If the incoming call alert audio on your Motorola Cell Phone is distorted or the volume is too low, the Logic/RF Board Assembly may be defective and require replacement.
S
Stephanie DavisSep 12, 2025
Why is transmit audio weak on Motorola T200 Cell Phone?
- M
  mthompsonSep 12, 2025
  If the transmit audio on your Motorola Cell Phone is weak, meaning people have trouble hearing you, the Logic/RF Board Assembly may be defective and require replacement.

Summary

General Information

Introduction

Motorola Service Policy

Details warranty terms, out-of-box failure policy, and product support.

General Safety Information

Guidelines for safe portable and general operation, including RF exposure.

T200 Description

Specifications of T200

Technical specifications for frequency, channels, modulation, power, and dimensions.

Disassembly & Parts

Disassembly Introduction

Guidance on phone disassembly, including screw locations and ESD precautions.

Recommended Tools

Disassembly Procedure

Step-by-step instructions and diagrams for taking the phone apart.

Assembly Procedure

SIM Cards and Security

Manual Test Mode

GSM Test Commands

List of keypad commands for accessing engineering and test modes.

Repair and Test Procedures

Basic Modular Troubleshooting

Guide to identifying common malfunctions and their probable causes.

Testing on DM TOOLS

Level 3 Circuit Description

Receive Signal Path

Detailed explanation of how incoming RF signals are processed.

Transmit Signal Path

Detailed explanation of how outgoing signals are processed for transmission.

Power Up Sequence

L3 Audio Logic Schematic

L3 RF Schematic

Test Mode Commands

Topaz T2688 Test Commands

List of special keypad commands for accessing device test and engineering modes.

Motorola T200 Specifications

General

Network Technology	GSM
2G bands	GSM 900 / 1800
EDGE	No
Status	Discontinued
SIM	Mini-SIM
Type	Monochrome graphic
Call records	10 dialed, 10 received, 10 missed calls
Loudspeaker	No
3.5mm jack	No
Messaging	SMS
Clock	Yes
Alarm	Yes
Removable battery	Yes
Phonebook	100
Alert types	Vibration; Monophonic ringtones
