Level 1 and 2 Service Manual Disassembly

3. Use the disassembly tool to release the antenna assembly as shown in Figure 8.

4. Carefully lift the antenna assembly away from the phone.

5. To replace, assembly starts from right to left. Align the antenna assembly to the phone.

6. Carefully press the antenna assembly into position until the antenna assembly latches snap

into position.

7. Reinstall the rubber antenna assembly grommets into their slots.

8. Replace the rear housing assembly, USIM, battery and battery cover as described in the

procedures.

061428o

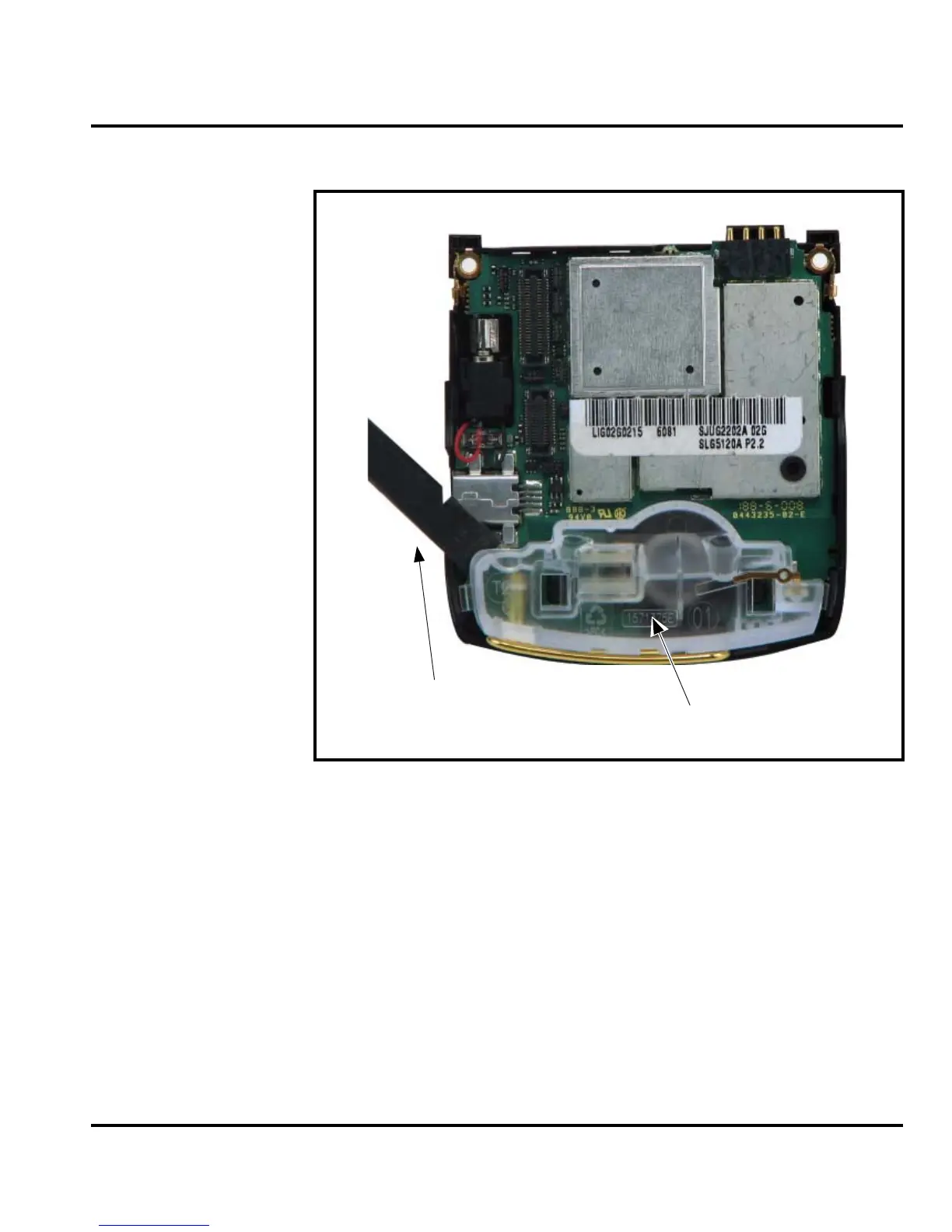

Figure 8. Removing the Antenna Assembly

Antenna

Assembly

Disassembly Tool
