6809505A63-O September 26, 2006 23

Level 1 and 2 Service Manual Disassembly

Removing and Replacing the Flip Assembly Cover

1. Remove the battery cover, battery, USIM, memory card, rear housing, and transceiver

board assembly as described in the procedures.

2. Remove the 4 flip assembly screw caps.

3. Use the T-5 driver to remove the 4 screws from the flip assembly (see Figure 10). Retain

the screws for re-assembly.

4. Before removing the flip cover, note the locations of the smart buttons on the sides of the

flip assembly.

5. Use the disassembly tool to gently pry off the flip cover (see Figure 11).

061431o

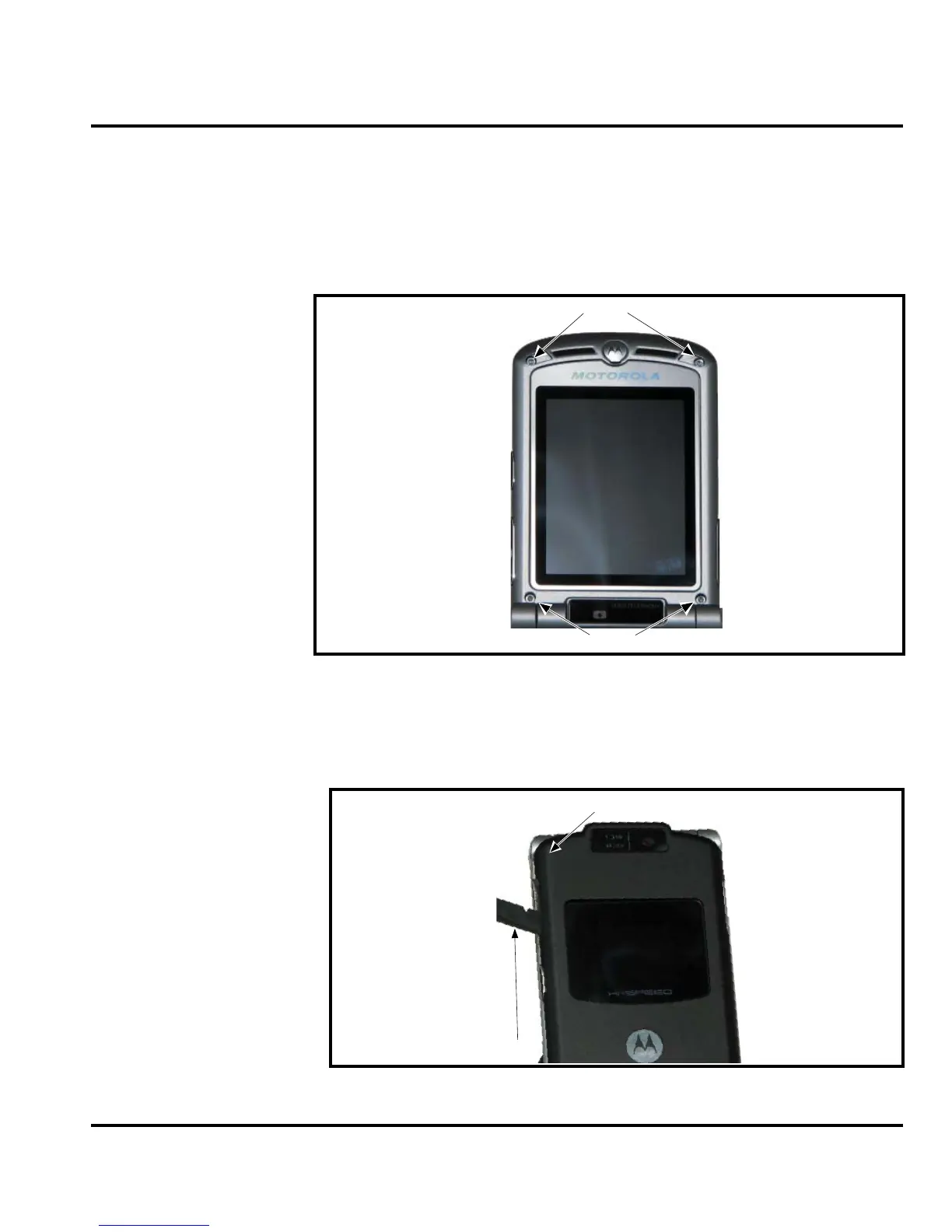

Figure 10. Removing the Flip Assembly Screws

040722o

Figure 11. Separating the Flip Assembly Cover

Screws

Flip Assembly Cover

Disassembly Tool
