Disassembly V3xx

6. Remove the smart buttons on the side of the flip assembly. Set them aside for reassembly.

7. Lift the flip cover away from the flip assembly. Be careful not to damage the display flex

cable (see Figure 12).

8. To replace, insert the smart buttons into the phone. Ensure the buttons contact their

respective switches on the display assembly.

9. Align the flip cover to the flip assembly, gently press the flip cover onto the flip assembly

until the flip cover latches engage.

10. Insert the 4 screws, tighten to a final torque setting of 1.7 inch pounds, to secure the flip

cover to the flip assembly. Avoid damage to the flex cable.

11. Insert the 4 rubber screw covers over the flip assembly screws.

12. Replace the transceiver board assembly, rear housing, antenna assembly, USIM, battery,

and battery cover as described in the procedures.

040723o

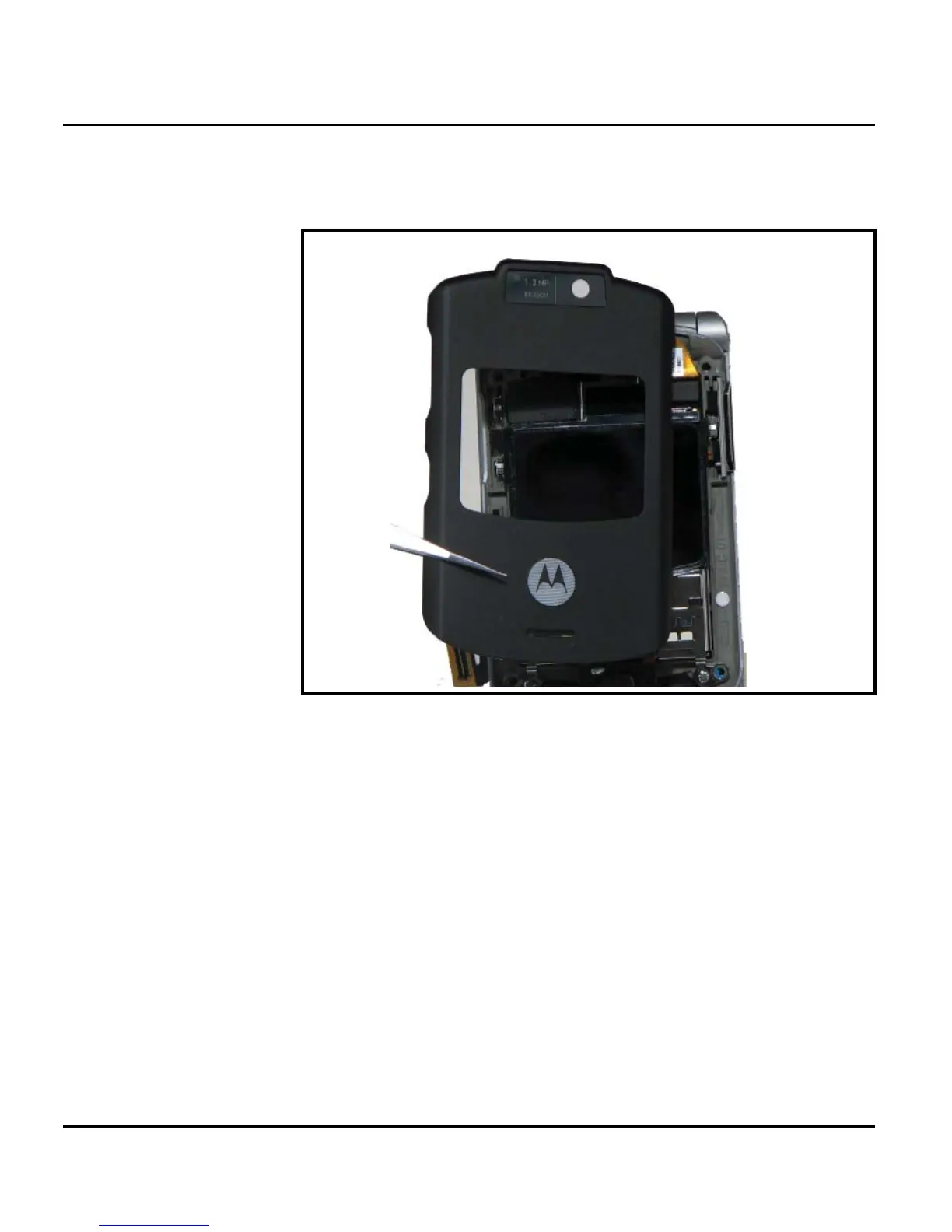

Figure 12. Removing the Flip Assembly Cover
