Installation
Installing the Desiccant Door
1. Open the desiccant package and remove the six desiccant bags.
2. Place three desiccant bags in the desiccant well.
3. Place the other three desiccant bags in the back of the desiccant door.
4. Ensure that the door seal is in place.
5. Carefully place the desiccant door onto the back housing. Ensure that
the desiccant bags do not interfere with door seal.
6. Secure the door to the back housing using the four screws. Torque to
9 ± 0.5 kgf.cm (7.8 ± 0.4 in-lbs).
NOTE Motorola recommends installing the desiccant bags in
environments where extreme temperature changes occur, such
as applications where the device may be continuously moved
between a freezer and a hot/humid area. Temperature changes
would occur more often in the hot/humid months of summer
and less frequently in cold/dry months of winter. If desiccant is
not used, the desiccant door must still be installed and secured.
CAUTION Ensure to torque the screws to seal the device properly.
Otherwise, sealing can be compromised.

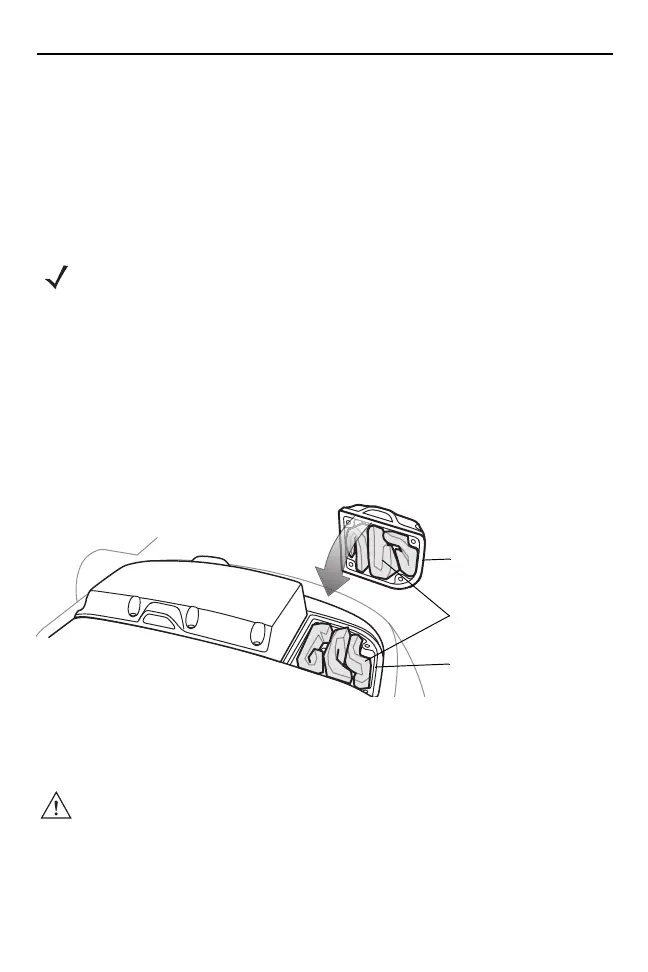

Desiccant Bags
Desiccant Door
Desiccant Well
