Quick Reference Guide 9

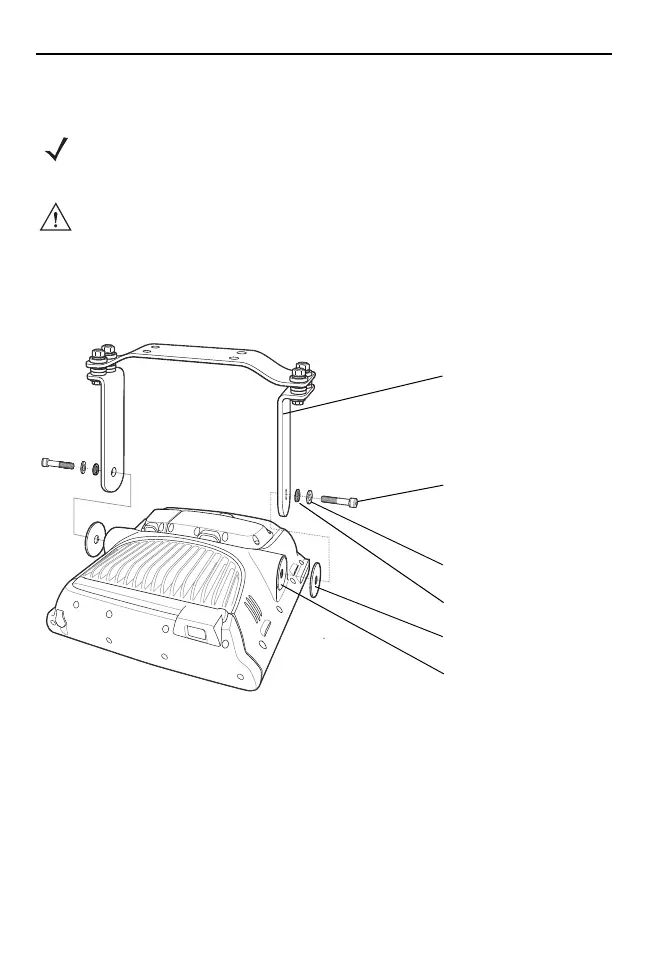

Mounting Bracket Installation
Assemble the mounting bracket onto the vehicle computer as shown
below.
Torque cap screws to 276 ± 8.7 kgf.cm (239.6 ± 7.6 in-lbs).
NOTE The vehicle computer and bracket must be firmly secured to a
surface that can support the vehicle computer’s weight.
CAUTION Motorola requires that the supplied mounting bracket be
used when mounting the vehicle computer.
Mounting Bracket
Lock Washer
Flat Washer
Friction Pad
Cap Screw
Friction Pad
Mounting Area
