Mounting Dream MD2380 - Wall Plate Installation on Concrete Wall

To avoid potential personal injury or property damage:
1. Make sure the BOLT HEAD on the wall plate is upward as the picture shows.
2. Solid concrete wall's thickness should be more than 100mm/4", and the wall must be
capable of supporting five times the weight of the TV plus the mount.
3. All anchors/lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate.
Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
Concrete wall

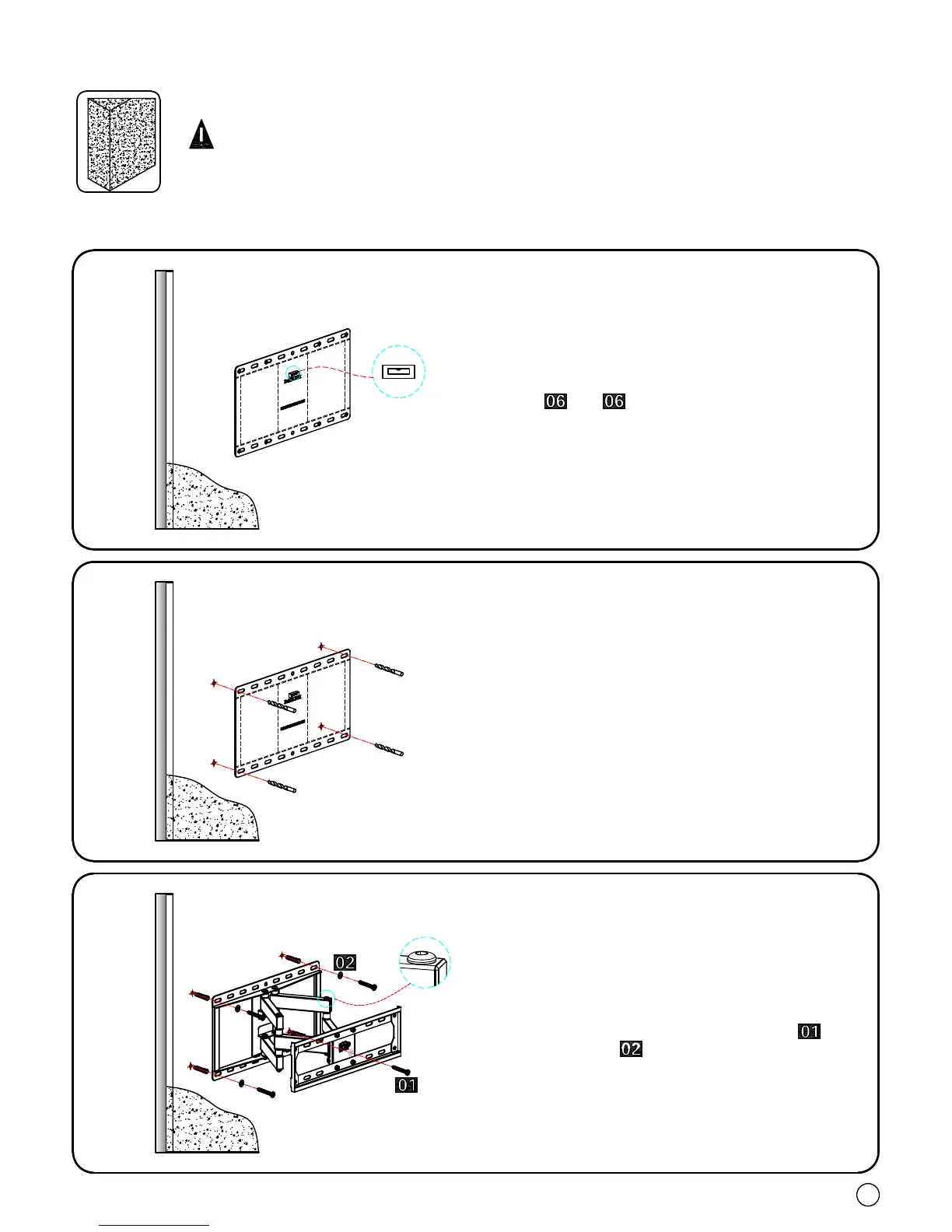

Option 2 Wall plate installation on concrete wall
①
②
③
CAUTION
Make sure the BOLT HEAD on the wall plate is upward
Stick the bubble level on the Mounting
template , put on your desire position,
adjust it make it level and stick it on the wall.
Use 3/8" diameter drill bit to drill 4 holes
at marked positions to a depth of 2.5".
3/8"
Take down the Mounting template, put 4 Concrete Wall
Anchors into drilled holes, and tap each anchor flush with
the wall by using a hammer. Then put 4 lag bolts
through the washers into the anchors, and tighten each
bolt by using a socket wrench to mount the wall plate
securely. Before totally tightening the lag bolt please attach
the bubble level on the wall plate to check whether it is
level.
UP
