5.9

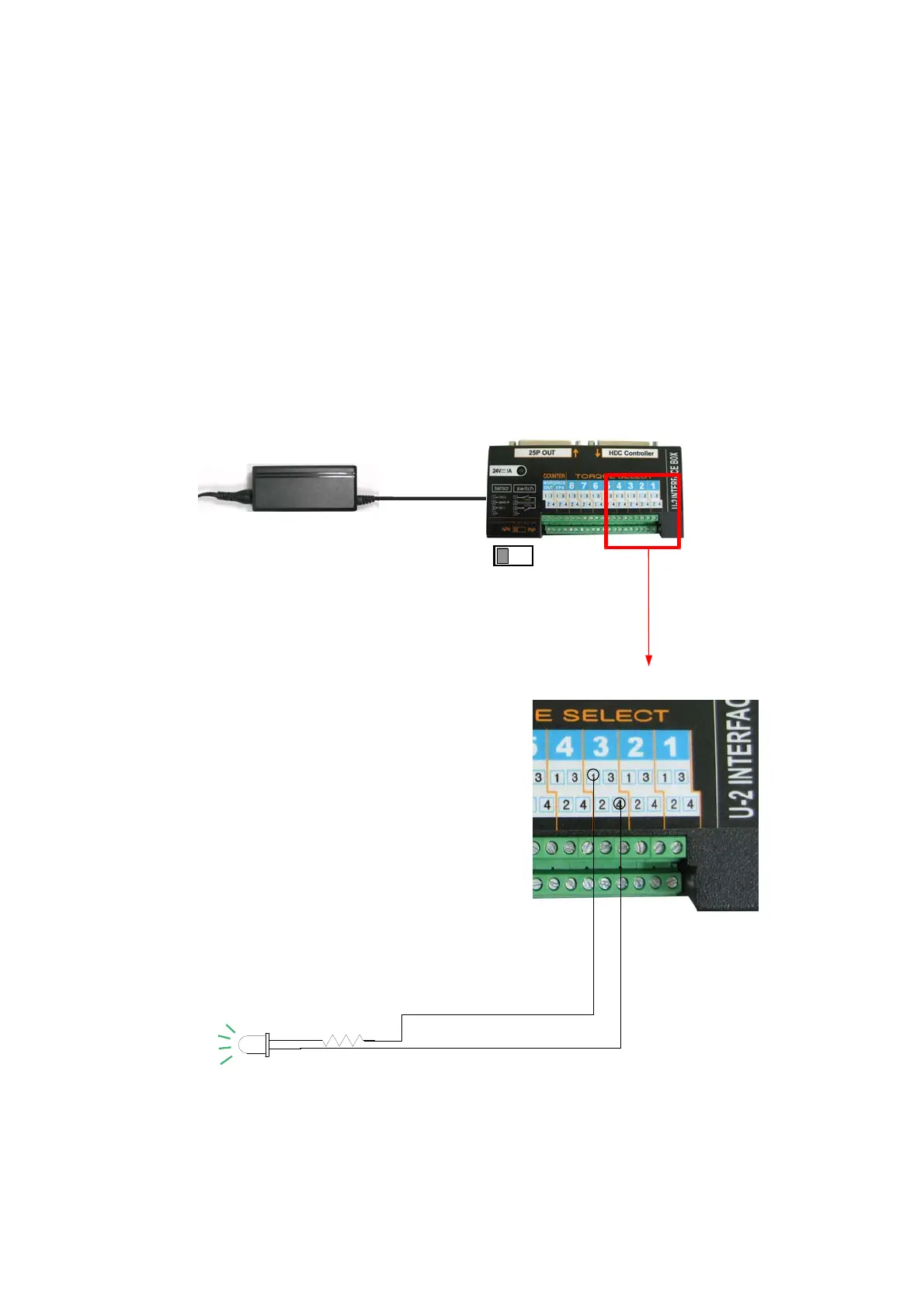

Wiring example of check out signal output
The pin no.4
(
status check out signal) of each sensor port
1
to
8
is useful to check
which preset number is selected by the LED, if LED is wired. The LED will require
the external or internal DC power source for lighting.
The wirings for both power sources are as below
[
P64 Setting
]
Select
"0"
U-2 Interface Box
DC24V,
1
A(max)
AC Adapter
Power
NPN PNP
LED or Lamp
DC(+)
4KΩ,1/4W
(-)
Caution
:
Do not short pin1(+)
& 3(-)
Depend on the LED or lamp, the resistance value should be
calculated for protection of LED
max
100
mA
