5.10
Preset number selecting by
25P
I/O port
The
25P
I/O port is useful interface with the PLC. The PLC can select one of the
8
preset numbers through
3
pins. It can not be used together with the direct sensor port
For
25P
I/O port, choose
"1"
on the parameter P64.
By binary coding with
3
pins
(
pin no.1,2 and
3)
among
25
pins, it make
1
to
8
decimal
preset number. The torque selecting code should be before the Start signal.
1)
Binary coding with
3
pins

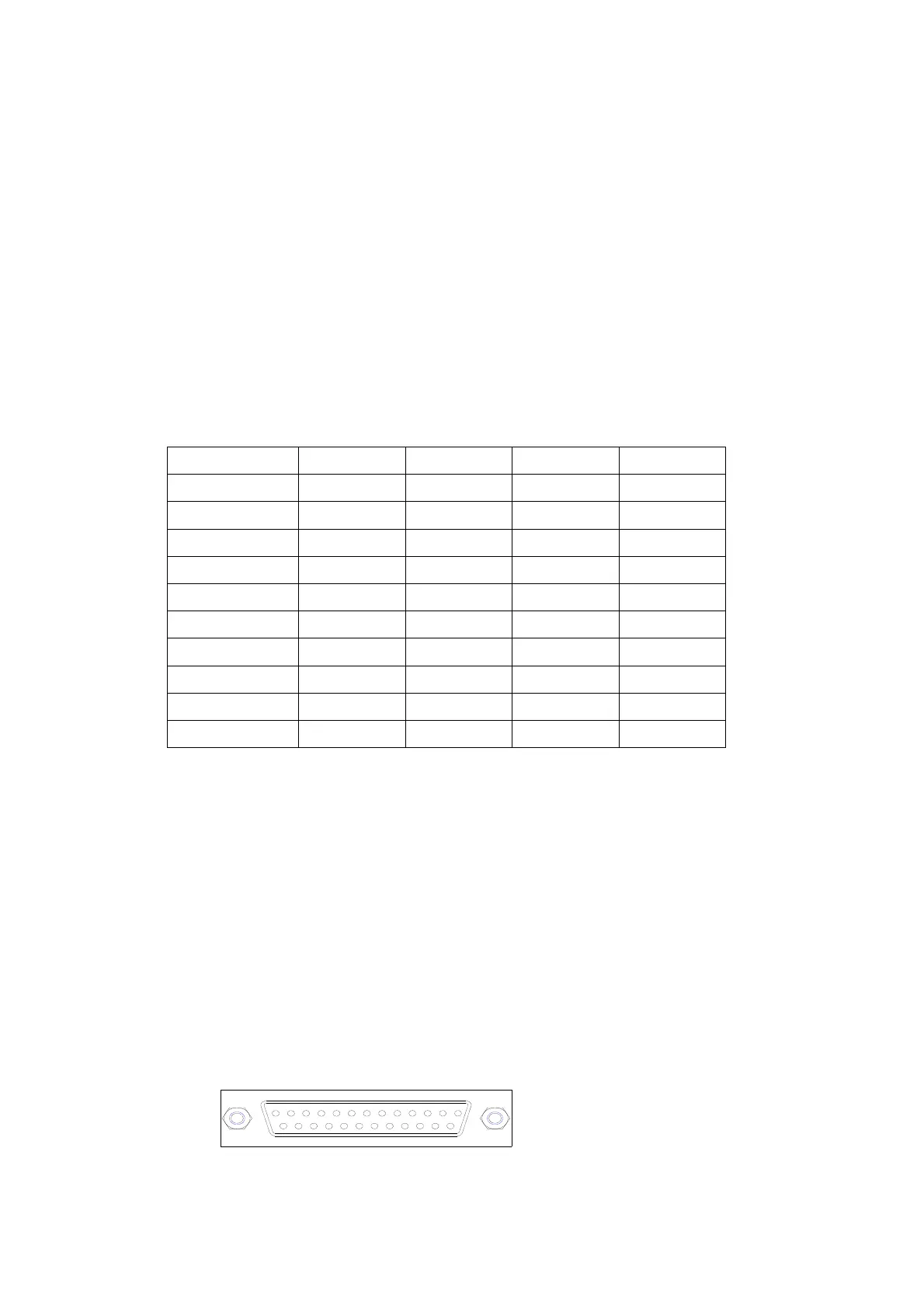

Preset no. pin ③ pin ② pin ① pin ⑧
1 000
2 001
3 010
4 011
5 100
6 101
7 110
8 111
Multi
A01
Multi
B11
5.11 25
PIN I/O configuration
The configuration of
25P
I/O port is different by the setting on P64.
[
P64 Setting
]
"0" :
Torque selector by Sensor
"1" :
Remote control I/O for PLC
"2" :
Torque selector by Sensor
(
Input)
+
Remote control I/O for PLC
(
Output)
1
13
1425
25P
D-SUB connector
