INSTALLATION (cont.)
Mounting through the wall
1) Shrink the exhaust air duct.
2) Insert the duct into the square adapter. Rotate the duct (2-3 rounds).
3) Insert the other end of the duct into the window exhaust adapter 1.
Rotate the duct (2-3 rounds). Attach the window exhaust adapter 2.
4) Fix the square end of the duct to the exhaust terminal of the unit.

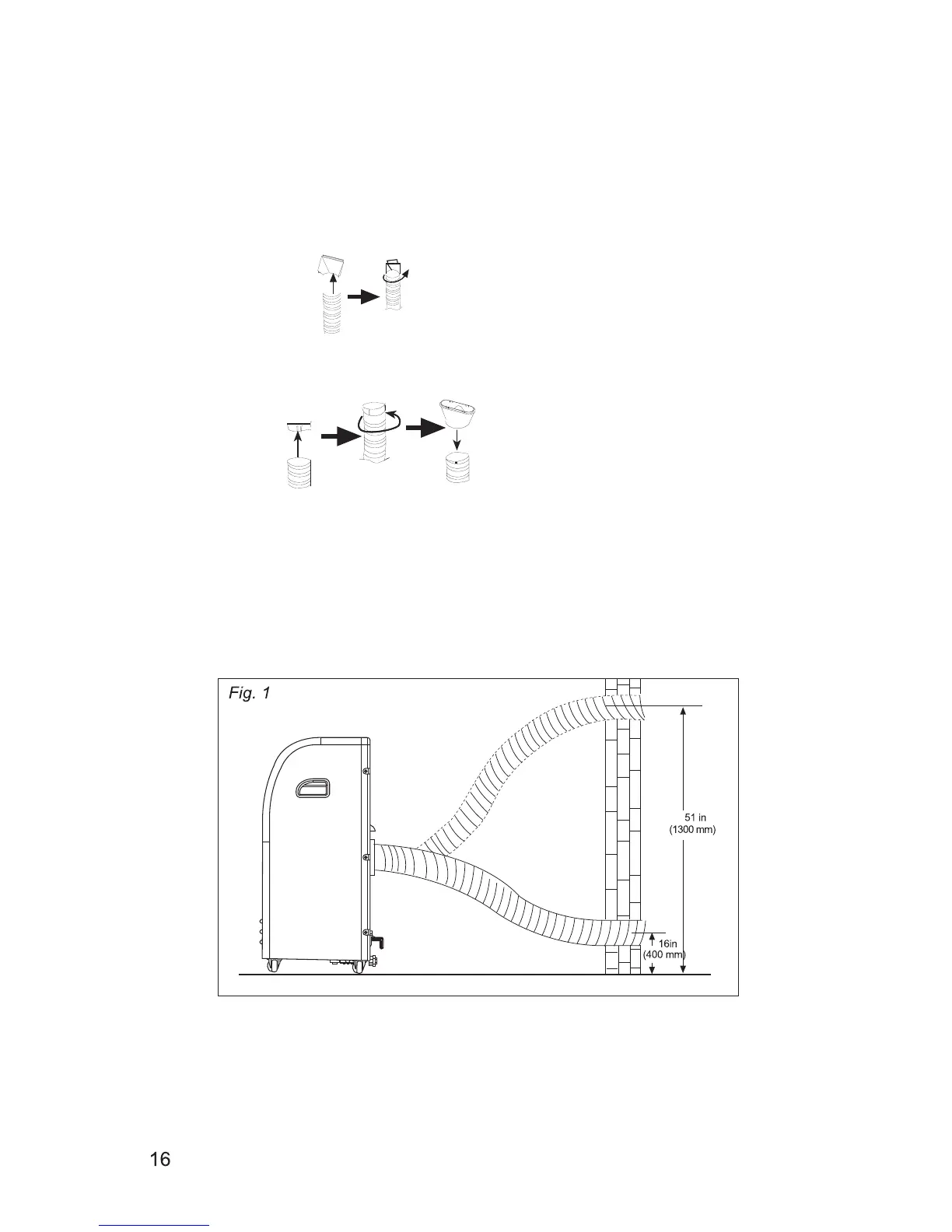

Correct mounting is shown below. The height of the hole from the floor should be 16
inch (400mm) - 51 inch (1300 mm).
