For DYM 1560EDQ

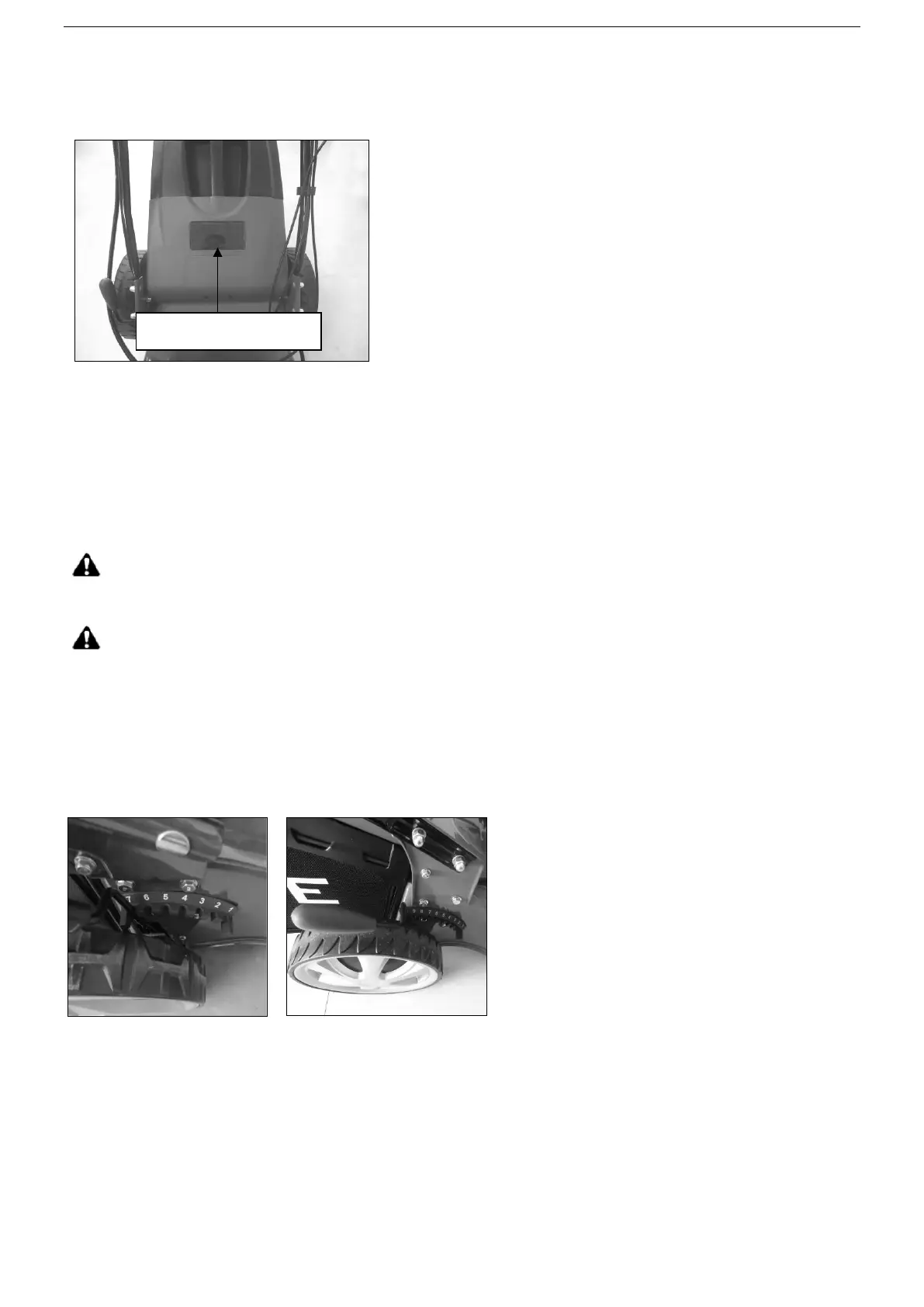

There is a transparent window on the rear cover which you can see the grass condition in the grass catcher.
If the grass catcher is full of grass, you will need to empty and clean the grass catcher, make sure it is clean
and ensure its meshwork is ventilated. (Fig.15C)
Fig.15C
7.8 DECK
The underside of the mower deck should be cleaned after each use to prevent a buildup of grass clippings,
leaves, dirt or other matter. If this debris is allowed to accumulate, it will invite rust and corrosion, and may
prevent proper mulching. The deck may be cleaned by tilting the mower and scraping clean with a suitable
tool (make certain the spark plug wire is disconnected).
7.9 HEIGHT ADJUSTMENT INSTRUCTIONS
CAUTION: Do not at any time make any adjustment to lawnmower without first stopping the engine and
disconnecting the spark plug wire.
CAUTION: Before changing mowing height, stop mower and disconnect spark plug cable.
Your mower is equipped with a central height adjustment lever offering 7 height positions.
The height (the blade to the ground) can be adjusted from 25mm to 75mm (7 height positions and 10 height
positions only for DYM1560EDQ). (Fig.15D/15E)
1. Stop mower and disconnect spark plug cable before changing mower cutting height.
2. The central height adjustment lever offers you 7 different height positions.
To change the height of cut, squeeze adjuster lever toward the wheel, moving up or down to selected height.
Fig.15D Fig.15E (Only for DYM1560EDQ)
8. MAINTENANCE INSTRUCTIONS
SPARK PLUG
Use only original replacement spark plug. For best results, replace the spark plug every 100 hours of use.
BRAKE PADS
Check and/or replace the engine brake pads in service agent regularly, only original parts can be used as
replacement.
