9. LUBRICATION INSTRUCIONS
CAUTION: DISCONNECT SPARK PLUG BEFORE SERVICING.
1. WHEELS-Lubricate the ball bearings in each wheel at least once a season with a light oil.
2. ENGINE-Follow engine manual for lubrication instructions.
10. CLEANING
CAUTION: Do not hose engine. Water can damage engine or contaminate the fuel system.
1. Wipe deck with dry cloth.
2. Hose under deck by tilting the mower so that the spark plug is up.
10.1 ENGINE AIR CLEANER
CAUTION: Do not allow dirt or dust to clog the air filter foam element. The engine air cleaner element
must be serviced (cleaned) after 25 hours normal mowing. The foam element must be serviced regularly if the
mower is used in dry dusty conditions.
To CLEAN AIR FILTER
1. Press down the two tabs on top of the filter cover. (Fig.16A)
2. Lift the tab on top of the filter cover. (Fig.16B) (Only for DYM1560EDQ)
3. Remove the filter cover. (Fig.16A/16B)
4. Wash filter element in soap water. (Fig.16C/16D/16E/16F) DO NOT USE GASOLINE!
5. Air dry filter element.
6. Place a few drops of SAE30 oil on the foam filter and squeeze tightly to remove any excess oil.
7. Reinstall filter.
NOTE: Replace filter if frayed, torn, damaged or unable to be cleaned.

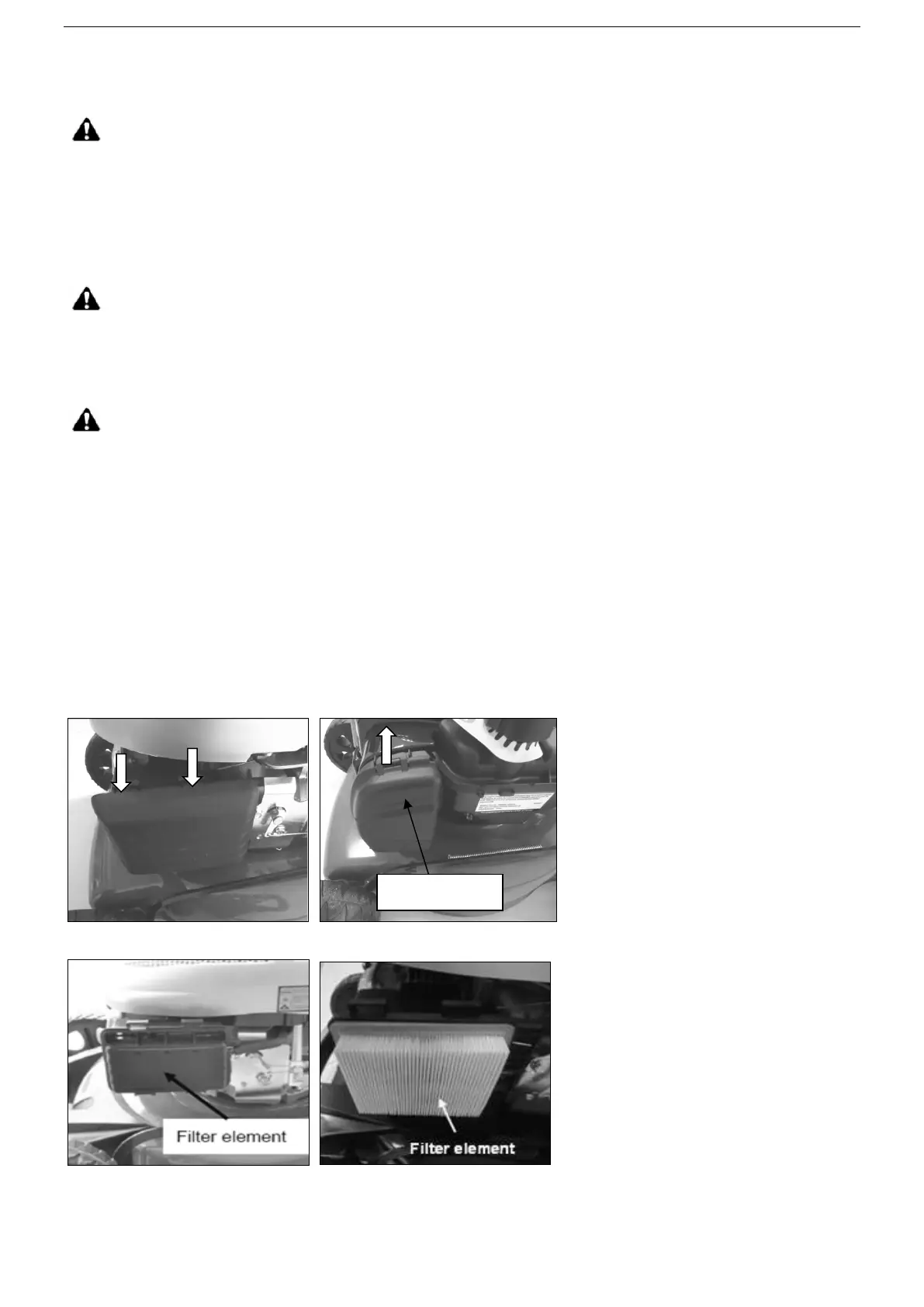

Fig.16A Fig.16B
（DYM1560EDQ）
Fig.16C （DYM1676CD-3） Fig.16D (DYM1678D-3)
To Next Page
