DIN-Rail Mounting
The aluminum DIN-rail attachment plate should already be fixed to the
back panel of the EDS when you take it out of the box. If you need to
reattach the DIN-rail attachment plate, make sure the stiff metal spring is
situated towards the top, as shown in the figures below.

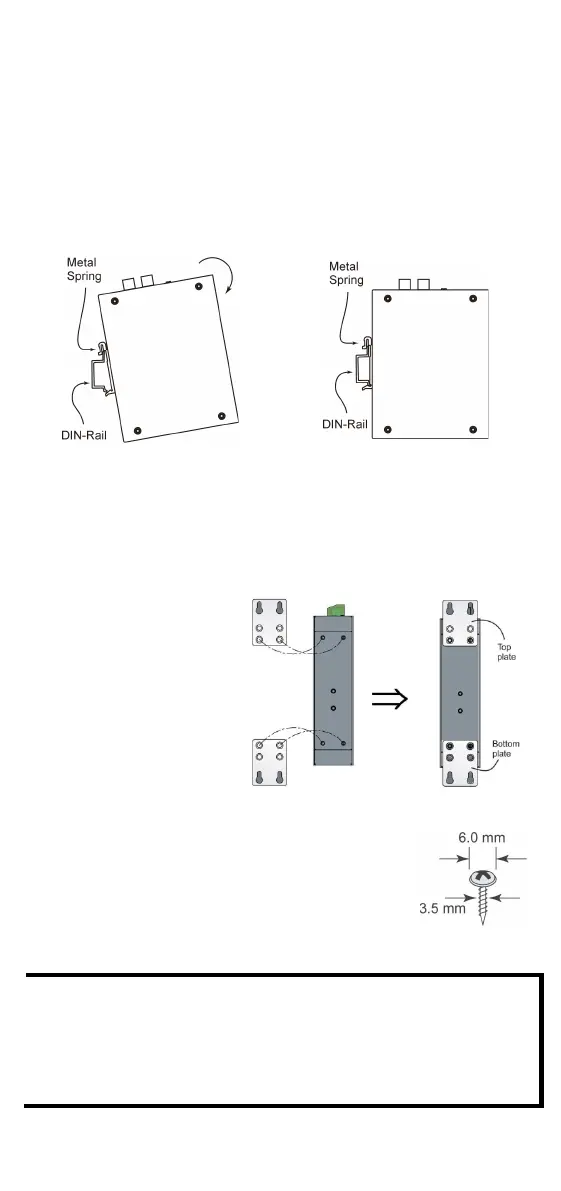

STEP 1: Insert the top of the
DIN
-rail into the slot just below
the stiff m
etal spring.
STEP 2: The DIN-Rail attachment
unit will snap into place as shown
below.
To remove the EDS from the DIN-rail, simply reverse Steps 1 and 2
above.
Wall Mounting (optional)
For some applications, you will find it convenient to mount the
EDS-G205A-4PoE on a wall, as shown in the following figures.
STEP 1:
Remove the aluminum
DIN
-rail attachment plate
from
the EDS-G205A-
4PoE’s
rear panel, and then attach
the wall mount plates as
shown
in the diagram at
the
right.
STEP 2:
Mounting
the EDS-G205A-
4PoE on the wall requires 4
screws. Use the
switch, with wall mount plates
attached, as a guide to mark the correct locations of
the 4 screws. The heads of the screws should be less
than 6.0 mm in diameter, and the shafts should be less
than 3.5
mm in diameter, as shown in the figure at
the
right.
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw into one
of the keyhole
-shaped apertures of the wall mounting plates.
Do
not screw the screws in completely—leave about 2 mm to
allow room for sliding the wall mount panel between the wall and
the screws
