Moxa Technologies ioLogik E1260 Quick Installation Guide

– 4 – – 5 – – 6 –
www.moxa.com/support
The Americas:
+1-714-528-6777 (toll-free: 1-888-669-2872)
Europe:
+49-89-3 70 03 99-0
Asia-Pacific:
+886-2-8919-1230
China:
+86-21-5258-9955 (toll-free: 800-820-5036)
 2011 Moxa Inc., All Rights Reserved
NOTE
For safety reasons, the wires attached to the power should
be at least 2 mm in diameter.
Jumper Settings
The models with DIO or AI channels require configuring the
jumpers inside the enclosure. Remove the screw located on the
back panel and open the cover to configure the jumpers.
DIO mode configuration is
shown to the right (default: DO
Mode).
Analog mode configuration is
shown to the right
(default:
Voltage Mode).
Mounting
The ioLogik E1200 is designed with a vertical form factor, and can
be used with both DIN-Rail and wall mounting applications. When
mounting on a rail, release the bottom mounting kit, install the
ioLogik on the rail, and then restore the bottom mounting kit to fix
the ioLogik to the rail. When using wall mounting, release both the
upper and bottom DIN-Rail kits.
The ioLogik E1200 has two built-in Ethernet switch ports for
connecting either a standard direct or cross-over Ethernet cable to
either RJ45 port.
LED Indicators
Type
Color
Description
Power
Amber
System power is ON
Off
System power is OFF
Ready
Green
System is ready
Flashing
Flashes every 1 sec when the “Locate” function is
triggered
Flashing
Flashes every 0.5 sec when the firmware is being
upgraded
Flashing
An on/off period cycle: 0.5 second shows “Safe
Mode”
Off
System is not ready.
Port 1
Green
Ethernet connection enabled
Flashing
Transmitting or receiving data
Port 2
Green
Ethernet connection enabled
Flashing
Transmitting or receiving data

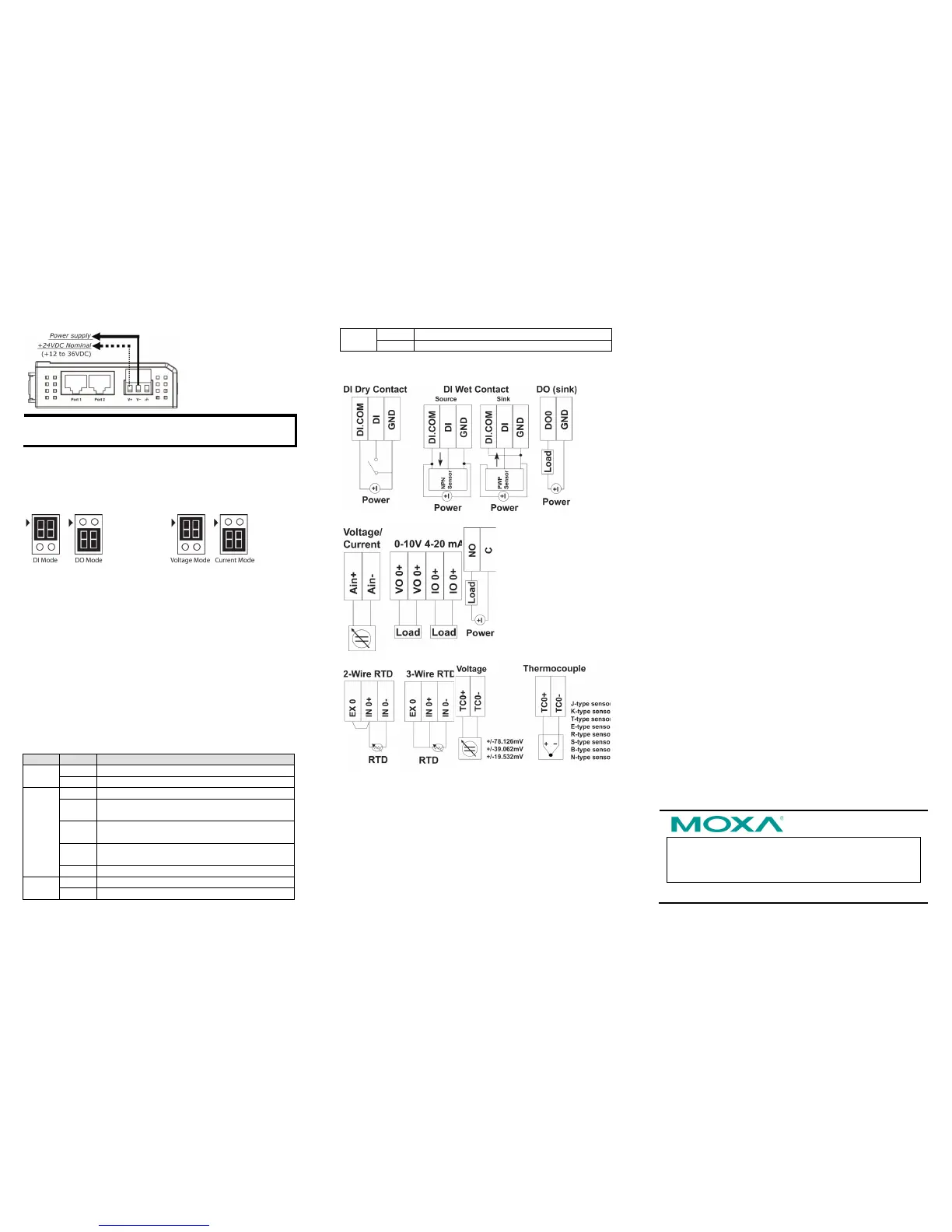

4. I/O Wiring
Digital Input/Output (Sink Type)
Analog Input
Relay Output (Form A)
RTD Input
TC input
5. System Configuration
Configuration via Web Console
Main configuration of an ioLogik E1200 is via its web console.
• Default IP Address: 192.168.127.254
• Subnet Mask: 255.255.255.0
Note: Be sure to configure the host PC’s IP address to the same
subnet as the ioLogik E1200. For example, 192.168.127.253
ioSearch Utility
ioSearch is a search utility that helps users locate an ioLogik E1200
on the local network. The utility can be found in the Document and
Software CD  Software  ioSearch; the latest version can be
downloaded from Moxa’s website.
Load Factory Default Settings
There are three ways to restore the ioLogik E1200 to the factory
default settings.
1. Hold the RESET button for 5 seconds.
2. Right click the specified ioLogik in the ioSearch utility and
select “Reset to Default.”
3. Select “Load Factory Default” from the web console.
Modbus Address Table
Please refer to the user’s manual for details of the ioLogik’s
Modbus address, or refer to the start address of the I/O channels in
web console  User-defined Modbus Addressing  Default
Address.
Active OPC Server Connection
Take the following steps to connect the ioLogik E1200 to an Active
OPC Server:
1. Disable the user-defined Modbus address function.
2. Install the Active OPC Server Lite Package from Document and
Software CD  Software  AOPC Lite  ActiveOPCSetup 
Install.exe
3. Install from Web console  Active OPC Server Settings 
AOPC & I/O Settings; specify the IP address where the Active
OPC Server is installed. Specify the I/O channels that need to
be added to Active OPC Server Lite. Submit the settings and
then Save/Restart.
4. From web console  Active OPC Server Settings  Create
AOPC Tag, click the “Create Tag” button.
5. Launch Active OPC Server Lite from Start  Programs  MOXA
 IOServer  ActiveOPC  ActiveOPC. Save the configuration
before exiting the Active OPC Server Lite program.

Moxa Technologies ioLogik E1260 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	660260 h
Certification	UL/cUL Class I Division 2, ATEX Zone 2
Product color	Silver
LED indicators	Yes
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.110 A
AC input voltage	24 V
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
