LED Indicators
Name
Color
Function
Ready
Red
Steady on: Power is on and unit is booting up.
Blinking: Indicates an IP conflict, or the DHCP or BOOTP server is not
responding properly.
Green
Steady on: Power is on and unit is functioning normally.
Blinking: Unit is responding to software Locate function.
Off
Power is off, or power error condition exists.
Ethernet
Amber
10 Mbps Ethernet connection.
Green
100 Mbps Ethernet connection.
Off
Ethernet cable is disconnected, or has a short.
P1, P2, P3, P4
Amber
Serial port is receiving data.
Green
Serial port is transmitting data.
Off
No data is being transmitted or received through the serial port.

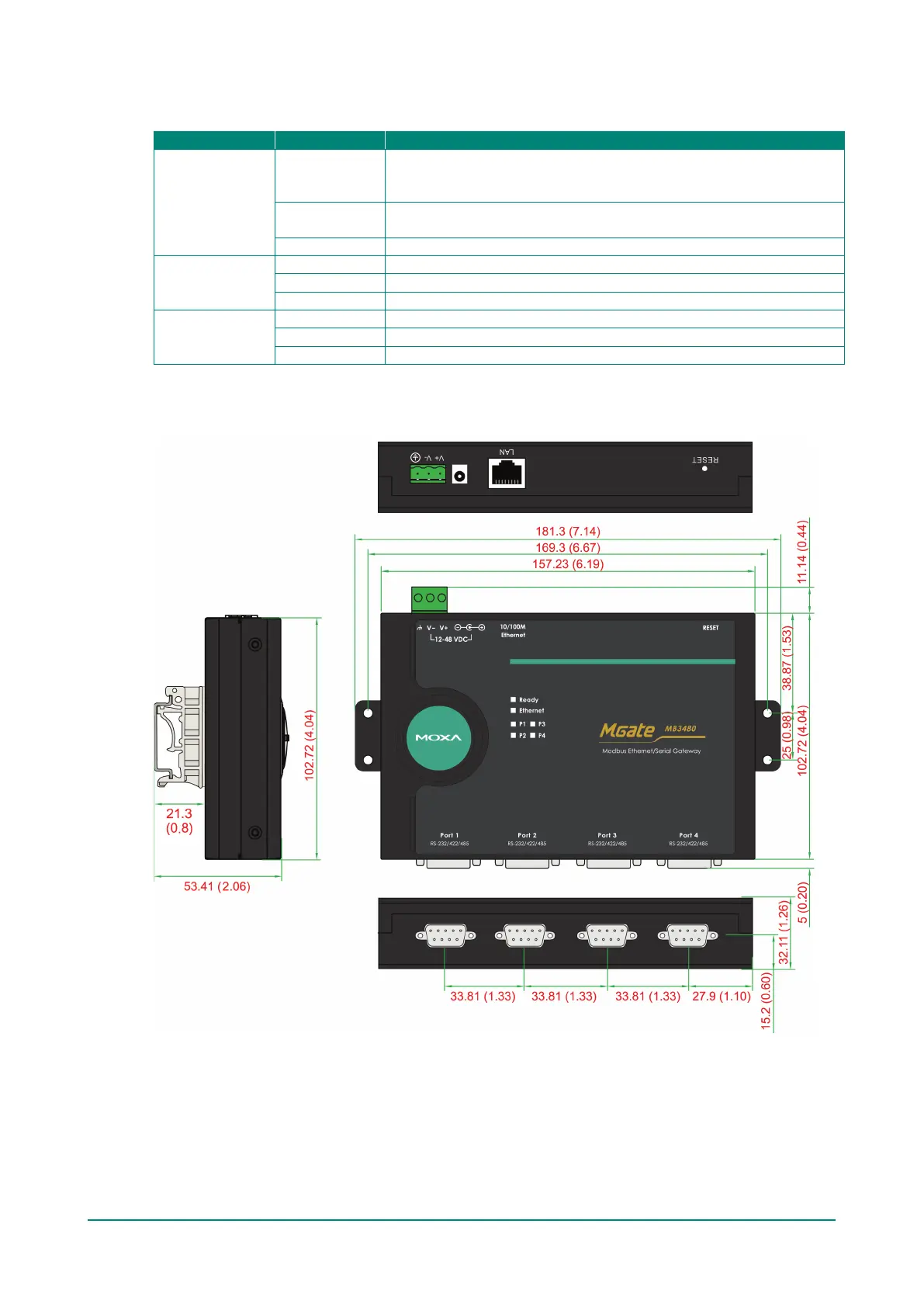

Dimensions

Moxa Technologies MGate MB3000 Specifications

General

Brand	Moxa Technologies
Model	MGate MB3000
Category	Gateway
Language	English
