DIN-Rail and Wall Mounting

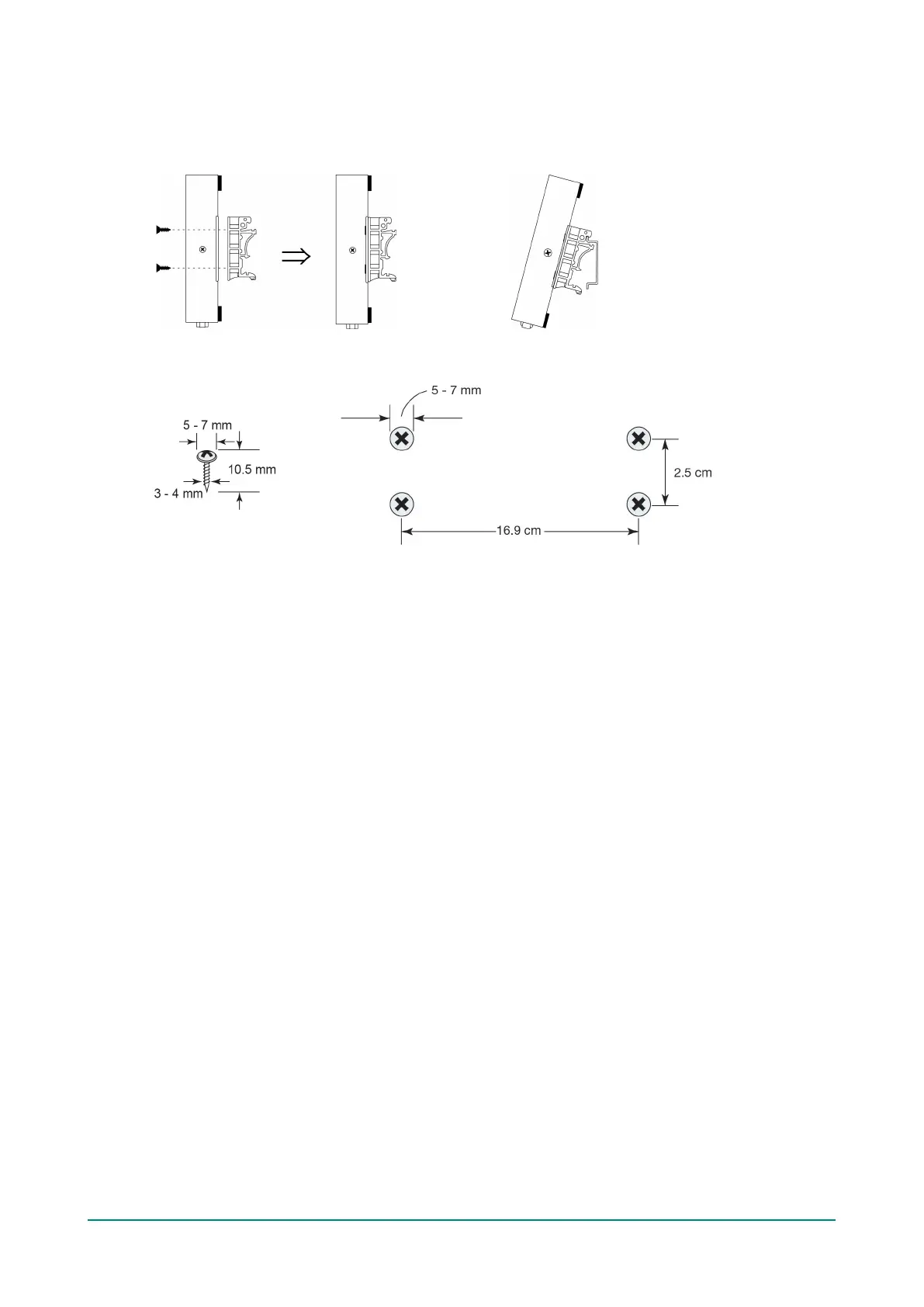

Mounting on a DIN-rail: Attach the DIN-rail accessories and latch the unit onto the DIN-rail as shown.
The DIN-rail kit is ordered separately.
Mounting on the wall: You will first need to attach the mounting plates to the unit. Place four screws in
the wall and slide the unit onto the screws as shown.
The head of the screws should be 5 to 7 mm in diameter, the shaft should be 3 to 4 mm in diameter, and
the length of the screws should be at least 10.5 mm. Make sure to leave about 5 mm of space between the
head and the wall.
Specifications
LAN
Ethernet
10/100 Mbps, RJ45, Auto MDI/MDIX
Protection
Built-in 1.5 kV magnetic isolation
Serial Interface
Interface
RS-232/422/485
No. of Ports
4 ports
Connector Type
DB9 (male)
Signals
RS-232:
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422:
Tx+, Tx-, Rx+, Rx-, GND
RS-485 (2-wire):
Data+, Data-, GND
RS-485 (4-wire):
Tx+, Tx-, Rx+, Rx-, GND
Serial Line Protection
15 kV ESD for all signals
RS-485 Data Direction
Patented ADDC™
Serial Communication Parameters
Parity
None, Even, Odd, Space, Mark
Data Bits
7, 8
Stop Bits
1, 2
Flow Control
RTS/CTS
Transmission Speed
50 bps to 921.6 Kbps
Software Features
Operation Mode
RTU Slave, RTU Master, ASCII Slave, ASCII Master
Utilities
MGate Manager
Multi-Masters and Multi-
Request
16 simultaneous TCP masters, 32 simultaneous requests for each TCP master
