MGate MB3000 Modbus Gateway User Manual
Filter Traffic Information

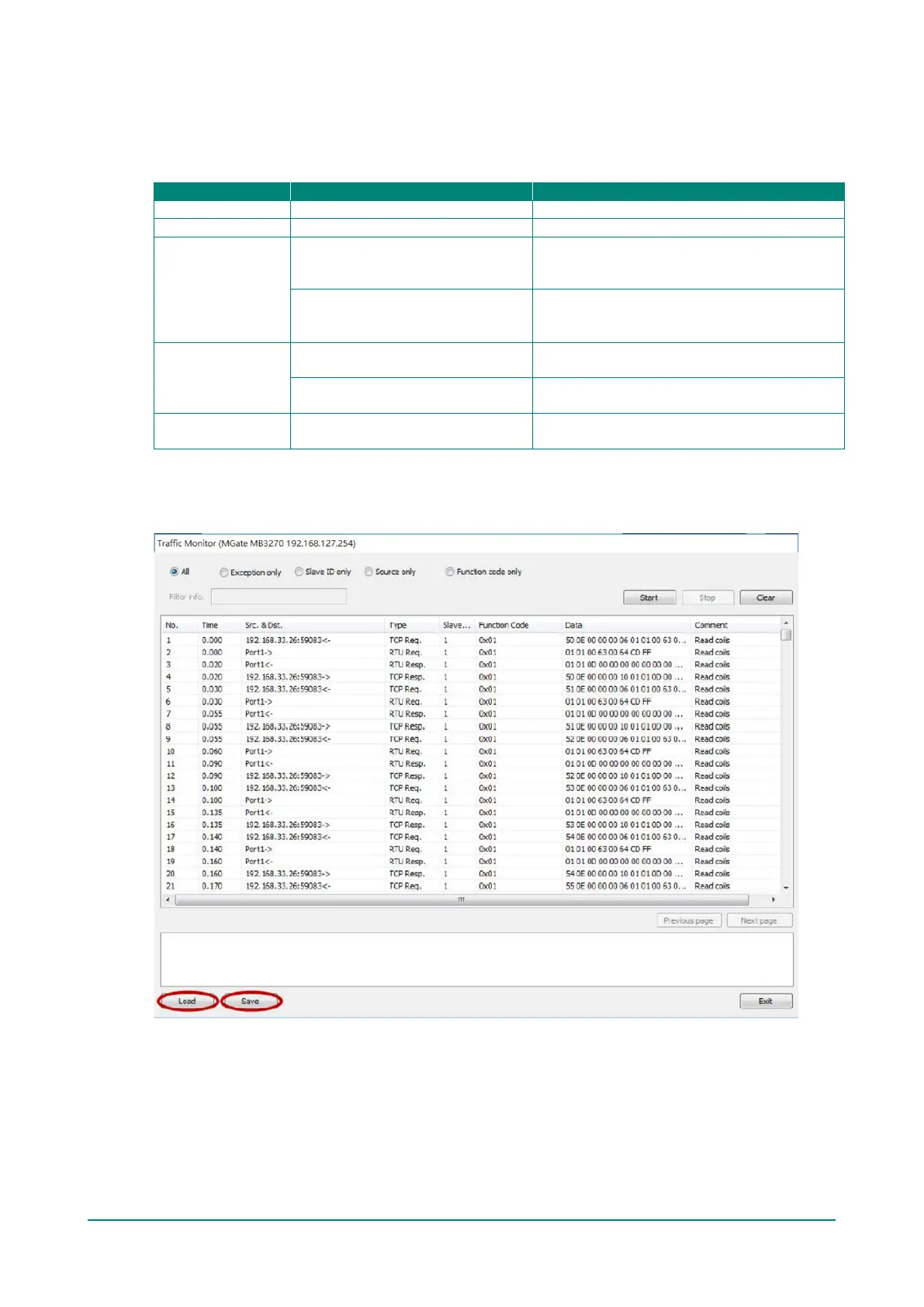

By default, all events are displayed in the traffic monitor window. MGate Manager also allows the data to be
filtered so only the relevant information is displayed. The filter is selected, using the radio buttons, and
customized, using the Filter info field, as follows:
SID only
VSID=< virtual slave ID>
(e.g., “VSID=1”)
Show only traffic to and from the specified
“virtual” slave ID (as assigned in the MGate’s
slave ID table)
RSID=< actual slave ID>
(e.g., “RSID=1”)
Show only traffic to and from the specified
“actual” slave ID (as assigned on the device
itself)
Source only
(e.g., “IP=192.168.1.2”)
Show only traffic sent from the specified IP
address
PORT=< MGate serial port number>
(e.g., “PORT=1”)
Show only traffic sent from the specific serial
port on the MGate
Function code only
FCODE=<Modbus function code>
(e.g., “FCODE=3”)
Show only traffic for a specific function code
Save Log to File
To save the data log to a file, click Save. You may retrieve a saved log by clicking Load.
