Overview

NPort 5100A series device servers are compact, palm-sized data

communication devices that allow you to control RS-232 (NPort 5110A),

RS-422/485 (NPort 5130A), and RS-232/422/485 (NPort 5150A) serial

devices over a TCP/IP-based Ethernet.

NOTE

“-T” indicates an extended temperature model.

Package Checklist

Before installing the NPort 5100A series device server, verify that the

package contains the following items:

• 1 NPort 5100A serial device server

• 100 to 240 VAC power adapter (excluding T models)

• 4 stick-on pads

• Quick Installation Guide

• Product Warranty Statement

Optional Accessories

• DK-35A: DIN-Rail Mounting Kit (35 mm)

NOTE

Notify your sales representative if any of the above items are

missing or damaged.

NOTE

The operating temperature of the power adapter in the box is

from 0 to 40°C. If your application is out of this range,

please

use a power adapter supplied by UL Listed External Power

Supply (The power output meets SELV and LPS and rated 12

48 VDC, minimum current 0.73 A). Moxa has power adapters

with wide temperature range (

-40 to 75°C, -40 to 167°F), the

PWR-12150-(plug type)-SA-T series, for your reference.

Hardware Introduction

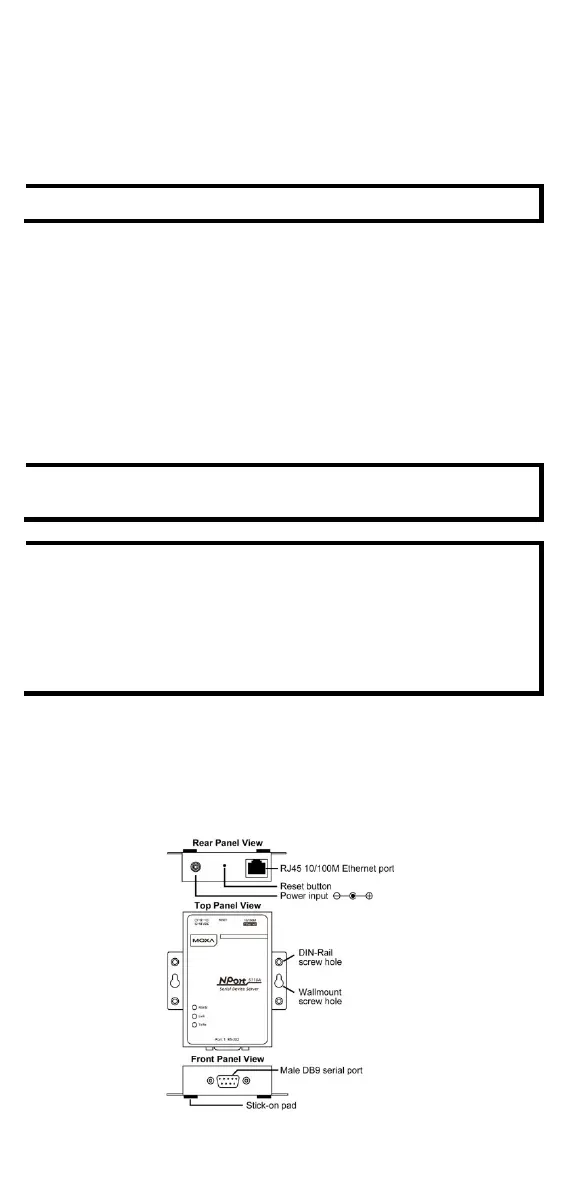

As shown in the following figures, NPort 5100A series device servers

have one male DB9 port for transmitting RS-232 (NPort 5110A), RS-

422/485 (NPort 5130A), or RS-232/422/485 (NPort 5150A) serial data.
