Moxa Technologies NPort 5130A Quick Installation Guide

- 5 -
NOTE
For the NPort with DB Male serial ports, you may refer to DB9
Male Ports pin assignment section to loop back pin 2 and pin 3
for the RS-232 interface to carry out a self test on the device.

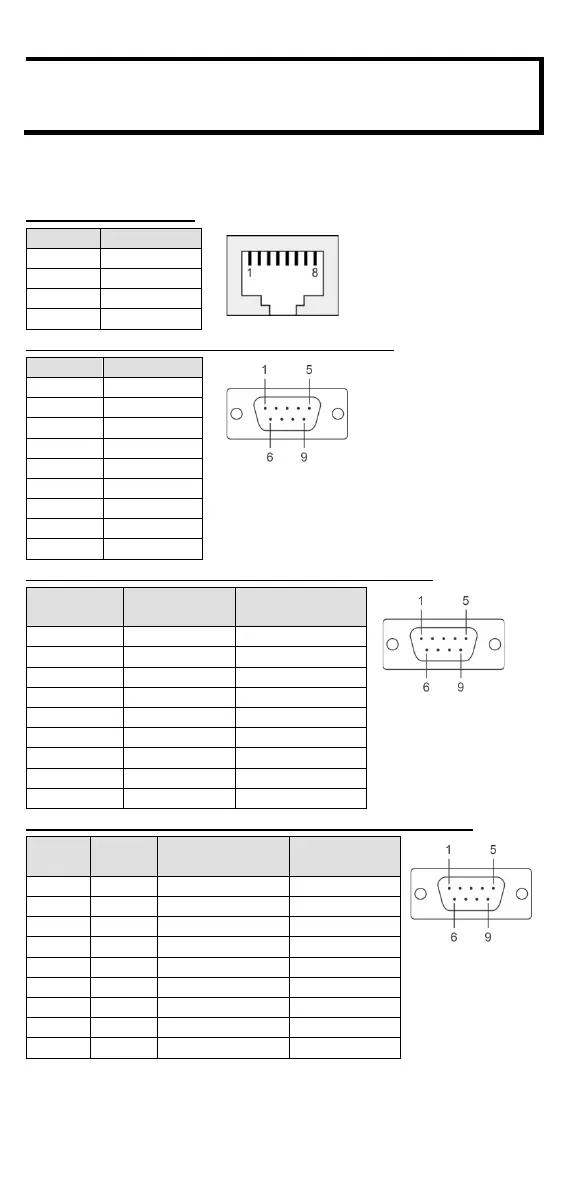

Pin Assignments
Ethernet Port Pinouts
Pin No.
Ethernet
1
Tx+
2
Tx-
3
Rx+
6
Rx-
NPort 5110A—DB9 male (RS-232) port pinouts
Pin No.
RS-232
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
–
NPort 5130A—DB9 male (RS-422/485) port pinouts
Pin No.
RS-422/485-
4W
RS-485-2W
1
TXD-(A)
–
2
TXD+(B)
–
3
RXD+(B)
Data+(B)
4
RXD-(A)
Data-(A)
5
GND
GND
6
–
–
7
–
–
8
–
–
9
–
–
NPort 5150A—DB9 male (RS-232/422/485) port pinouts
Pin No.
RS-232
RS-422/485-
4W
RS-485-2W
1
DCD
TXD-(A)
–
2
RxD
TXD+(B)
–
3
TxD
RXD+(B)
Data+(B)
4
DTR
RXD-(A)
Data-(A)
5
GND
GND
GND
6
DSR
–
–
7
RTS
–
–
8
CTS
–
–
9
–
–
–

Moxa Technologies NPort 5130A Specifications

General

Isolation	1.5 kV
Certification	CE, FCC
Serial interface type	RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, IGMP v1/2
Compatible operating systems	SCO Unix, OpenServer UnixWare v2.1, v7 Unix SVR 4.2 Unix QNX 4.25, QNX 6 Solaris 10 FreeBSD AIX 5.x HP-UX 11i Mac OS v10.3 Linux v2.4.x, v2.6.x
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL, LVD

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	52 x 80 x 22 mm
