MP PUMPS FLOMAX 8 - Page 13

FLOMAX 8 BZ AL (en) Page 13 of 24

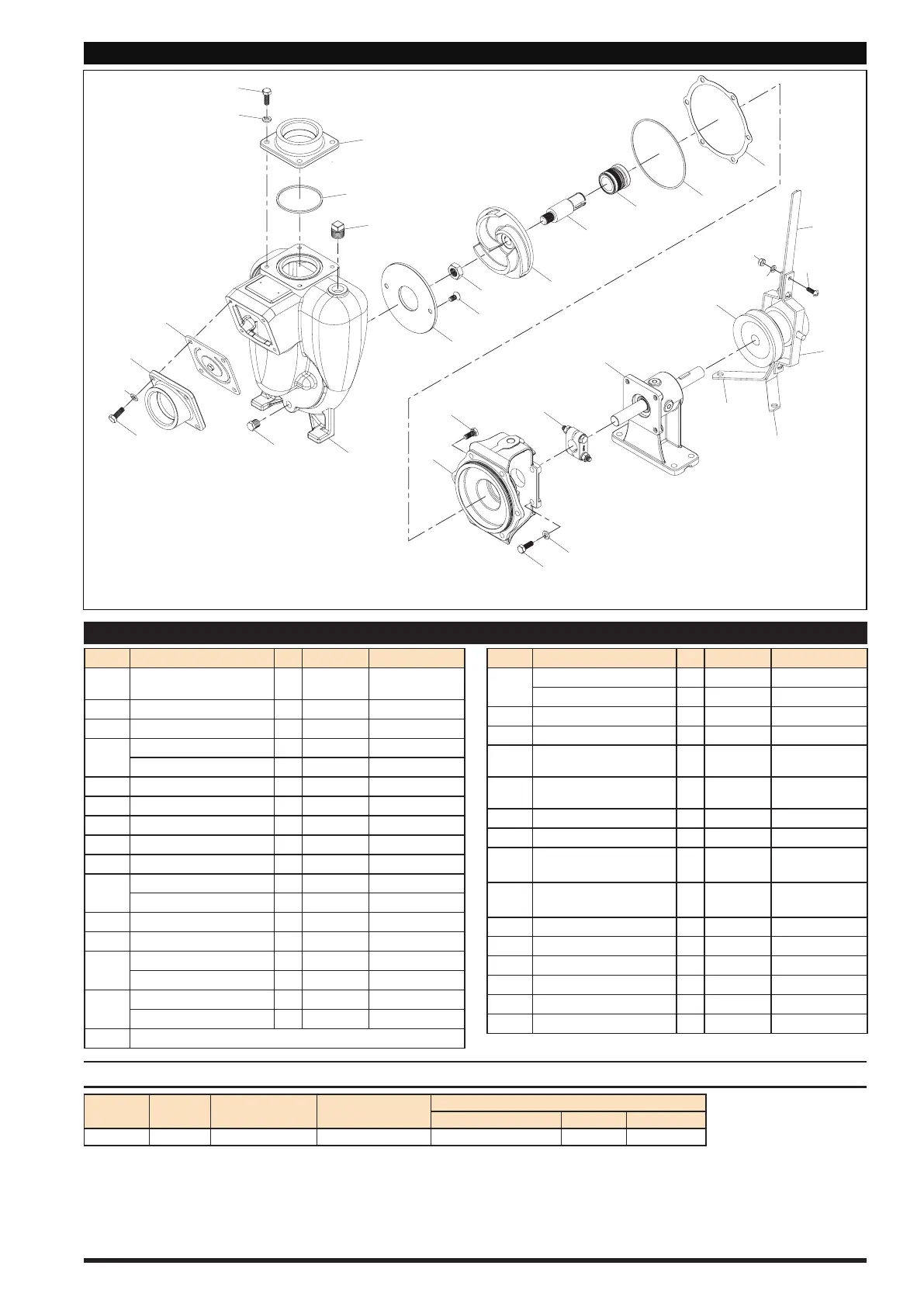

PARTS LIST / FLOMAX 8 CLUTCH (BRONZE)
5
10
11
12
13
14
15
16
17
18
19
21
20
2
1
7
8
9
2
6
1
4
3
2
22
26
27
29
23
24
28
25
30
Figure 10
PARTS LIST / FLOMAX 8 CLUTCH (BRONZE)
Item Description
(size)
Qty Part No. Mtl
1
Cap Screw
(HH 5/16” - 18” x 7/8”)
8 MP21242 304 SS
2 Lockwasher
(5/16” x 18”)
14 MP21238 304 SS
3 Suction Flange 1 MP22386 Federalloy I-836
4
Flapper Assembly 1 MP23022 Buna
Flapper Assembly 1 MP26097 EPDM
5 Pipe Plug
(HH 1/4” NPT)
1 MP21267 316 SS
6 Housing 1 MP22250 Federalloy I-836
7 Discharge Flange 1 MP22310 Federalloy I-836
8 O-Ring
(AS-568-149)
1 MP37142 Epdm
9 Pipe Plug 1 MP22656 303 SS
10
Wear Plate 1 MP22259 Brass
Wear Plate 1 MP27978 316 SS
11 Screw
(FHS 5/16” - 18” x 5/8”)
2 MP37137 304 SS
12 Hex Jam Nut 1 MP22655 304 SS
13
Impeller
(5.0”)
1 MP22292 Federalloy I-836
Impeller
(5.0”)
1 MP22294 316 SS
14
Drive Sleeve 1 MP22286 303 SS
Drive Sleeve 1 MP33592 Duplex 2205
15 See Table for seal options
Item Description
(size)
Qty Part No. Mtl
16
O-Ring
(AS-568-158)
1 MP34555 Viton
O-Ring
(AS-568-158)
1 MP36911 EPDM
17 Gasket 1 MP22255 Lexide Ni-2085
18 Adapter 1 MP22246 Federalloy I-836
19
Cap Screw
(5/16” - 18” x 3/4” Patch)
6 MP24965 304 SS
20
Cap Screw
(SS HH 5/16” - 24” x 0.88”)
4 MP21278 304 SS
21 Clamp Assembly 1 MP23002 303 SS
22 Pedestal Assembly 1 MP26289 Cast Iron
23 Clutch Bracket
(Right)
1 MP24434
Cold Rolled
Steel
24 Clutch Bracket
(Left)
1 MP24433
Cold Rolled
Steel
25 Yoke 2 MP24430 Zinc Plated Steel
26 Clutch
(A-B Belt)
1 MP28905 Steel
27 Hexnut
(1/4” - 20”)
3 MP21241 304 SS
28 Lockwasher
(1/4")
3 MP33564 304 SS
29 Screw
(1/4” - 20” x 3/4”)
3 MP21247 304 SS
30 Handle 1 MP24431 Zinc Plated Steel
SEAL TYPE OPTIONS
Seal PN Seal Type Shaft Dia. Mating Ring
Material
Primary Ring Elastomer Components
MP22273 21 1" Ceramic Carbon Viton 316 SS
