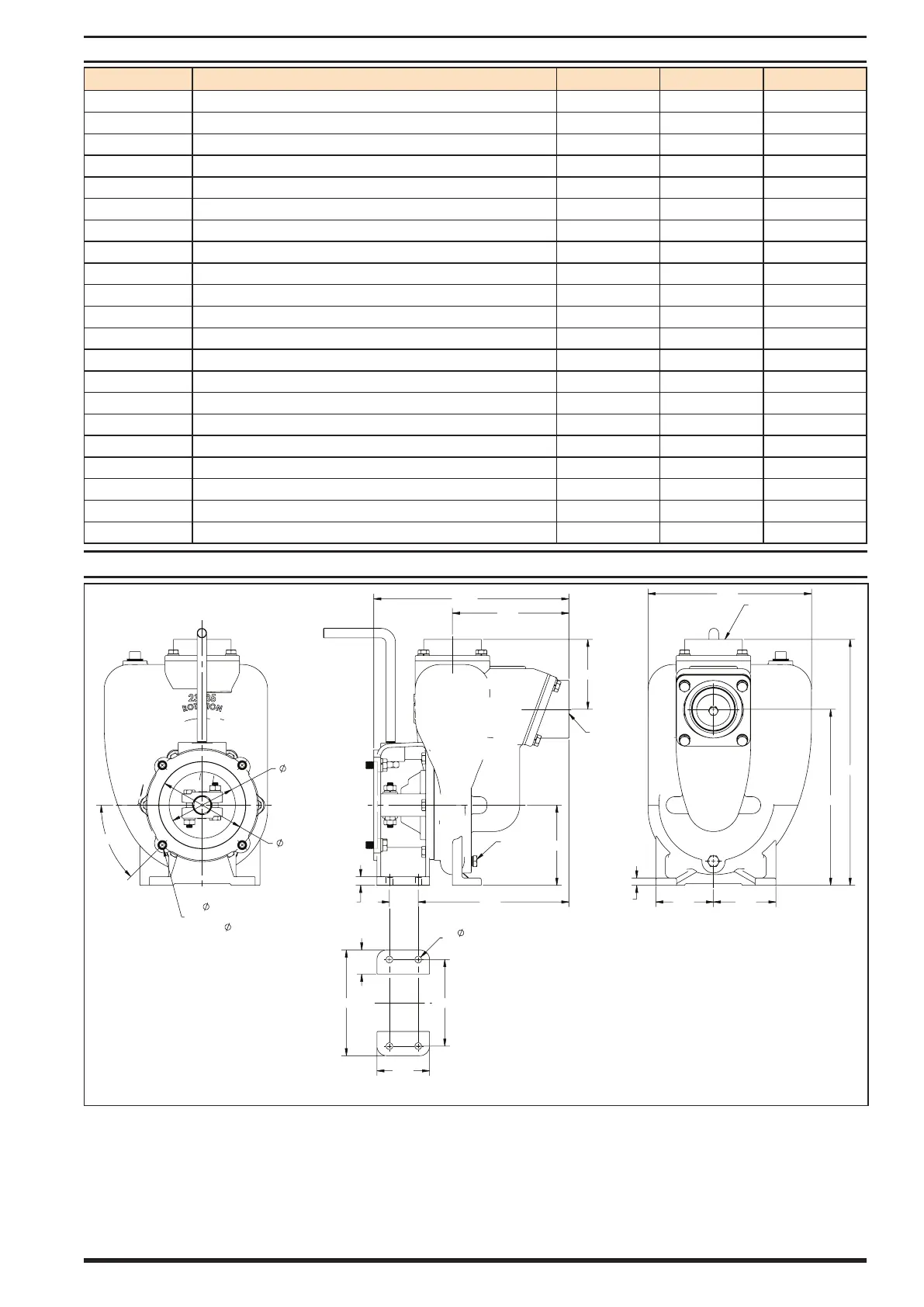

MP PUMPS FLOMAX 8 - Service Kits; Dimensional Data

FLOMAX 8 BZ AL (en) Page 19 of 24
SERVICE KITS
PUMP MODEL PUMP DESCRIPTION SEAL KIT IMPELLER KIT BEARING KIT
MP36503 FM8PMP A:1.5-3 56C FA 4.1 WBA MP51310 ---- ----
MP38702 FM8PMP A:3-1 56C MTO FA 5.0 WBA MP51310 ---- ----
MP21336 FM8PMP A:PED 5.0 MP51310 ---- MP51315
MP37945 FM8PMP A:PED 5.0 SSC ---- ---- MP51315
MP51157 FM8PMP A:PED/HYD .45 DISP W/FC 5.0 MP51310 ---- #N/A
MP51083 FM8PMP B: 3-3 182T XP 5.0SI SSWP WBA ---- ---- MP51315
MP35752 FM8PMP B:3-1 182T 5.0 WBA ---- ---- MP51315
MP30675 FM8PMP B:3-3 182T 5.0 WBA ---- ---- MP51315
MP21338 FM8PMP B:PED 5.0 ---- ---- MP51315
MP37003 FM8PMP B:PED 5.0SI EP SSWP DUP S-FLG ---- ---- MP51315
MP34138 FM8PMP B:PED 5.0SI T-21 EPDM SSWP DUP ---- ---- MP51315
MP33695 FM8PMP B:PED 5.0SSI SSWP ---- ---- MP51315
MP26858 FM8PMP B:PED/CL .50 SAE 5.0 RD ---- ---- MP51315
MP24550 FM8PMP B:PED/CL 5.0 ---- ---- MP51315
MP29726 FM8PPK A:7/8 SL CC MTR 4.63CAI MP51310 ---- ----
MP39967 FM8PPK A:CCMTR 5/8FA 4.62 MP51310 ---- ----
MP26266 FM8PPK A:CCMTR 7/8 FA 5.0 MP51310 ---- ----
MP21325 FM8PPK A:PEM 3/4 5.0 MP51310 ---- ----
MP21330 FM8PPK A:PEM 3/4 5.0 BCF MP51310 ---- ----
MP30040 FM8PPK A:PEM 3/4 5.0 CI FLANGE MP51310 ---- ----
MP39032 FM8PPK A:PEM 3/4 5.0HF-SI MP51310 ---- ----
DIMENSIONAL DATA
FM8 BZ CC
9.16
12.79
.38
3.00 3.25
8.50
2" NPT
DISCHARGE
1.50 7.84
3.63
10.15
6.06
4.17
.45
1/4" NPT
PIPE PLUG
2" NPT
SUCTION
1.26
5.50
2.74
4.50
(4)
.344
HOLES
3.450
4.506
4.502
45° TYP.
(4)
.438 THRU HOLES
EQ. SPACED AS SHOWN
ON A
5.875 B.C.
Figure 16
