MP PUMPS FLOMAX 8 - Page 18

Page 18 of 24 FLOMAX 8 BZ AL (en)

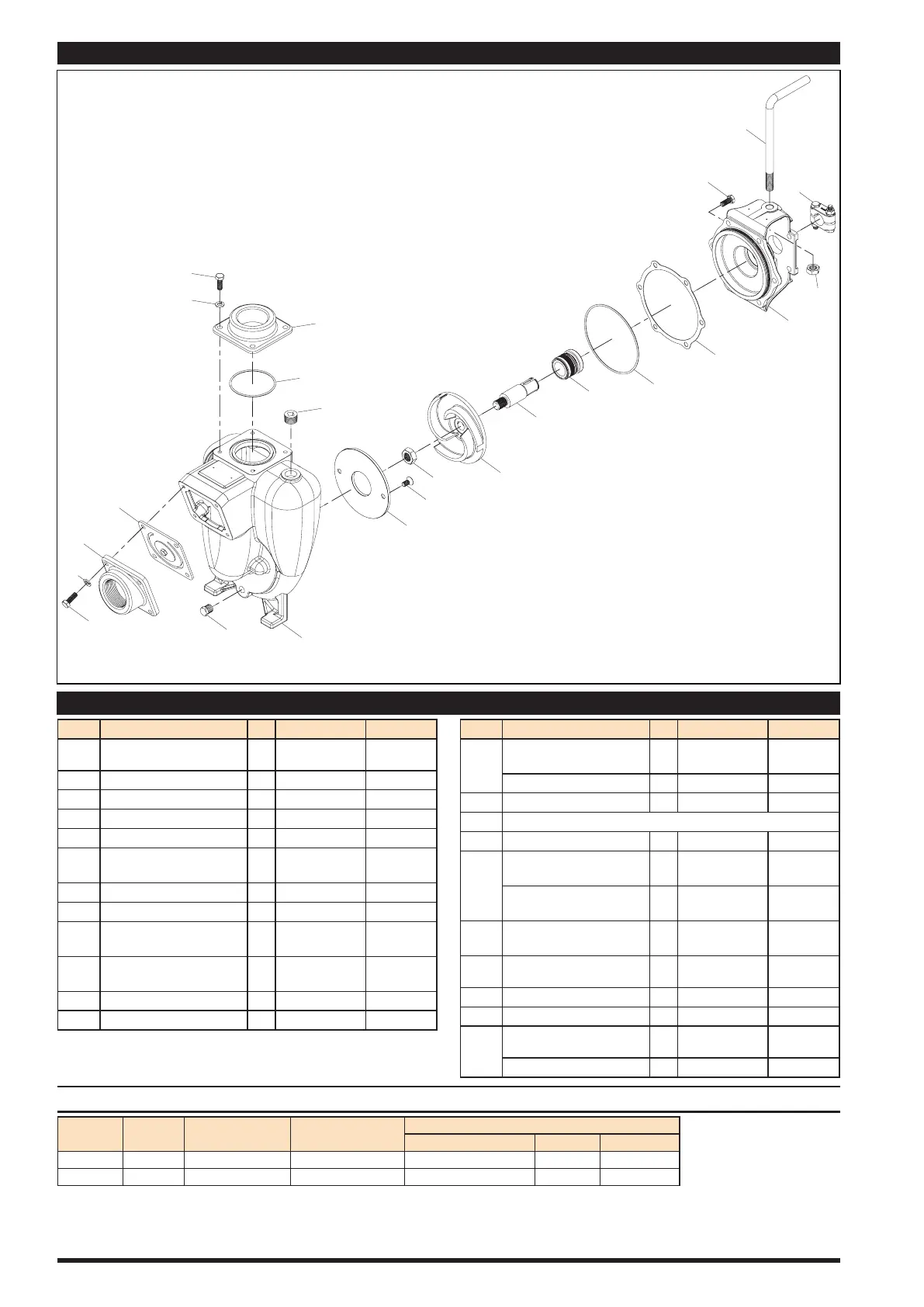

PARTS LIST / FLOMAX 8 PEDESTAL ENGINE MOUNT (ALUMINUM)
1
7
8
9
2
10
6
5
1
11
12
13
14
15
16
17
18
21
19
20
22
4
3
2
Figure 15
PARTS LIST / FLOMAX 8 PEDESTAL ENGINE MOUNT (ALUMINUM)
Item Description
(size)
Qty Part No. Mtl
1
Cap Screw
(HH 5/16” - 18” x 7/8”)
8 MP21242 304 SS
2 Lockwasher
(5/16” x 18”)
10 MP21238 304 SS
3 Suction Flange 1 MP22387 Cast Iron
4 Flapper Assembly 1 MP23022 Buna
5 Pipe Plug
(HH 1/4” NPT)
1 MP21267 316 SS
6 Housing 1 MP22248
Aluminum
T356
7 Flange 1 MP22311 Cast Iron
8 O-Ring
(AS-149)
1 MP37141 Viton
9 Pipe Plug
(1/2" NPT )
1 MP37140
Zinc Plated
Steel
10 Wear Plate 1 MP22258
Aluminum
#6061
11 Screw
(FHS 5/16” - 18” x 5/8”)
2 MP37137 304 SS
12 Hex Jam Nut 1 MP22655 304 SS
Item Description
(size)
Qty Part No. Mtl
13
Impeller
(5.0”)
1 MP22291
Aluminum
T-6 Cast
Impeller
(5.0”) (5BL)
1 MP33333 CF8M
14 Drive Sleeve 1 MP22286 303 SS
15 See table for seal options
16 O-Ring
(AS-568-158)
1 MP34555 Viton
17
Gasket 1 MP22255
Lexide Ni-
2085
Gasket 1 MP35722
Klingersil
C-44332
18 Adapter 1 MP22245
Aluminum
356 T-6 Cast
19
Cap Screw
(5/16” - 18” x 3/4” Patch)
6 MP24965 304 SS
20 Handle 1 MP21938 Steel
21 Hex Jam Nut
(1/2” - 13”)
1 MP22637 Steel
22
Clamp Assembly
(3/4” and 5/8”)
1 MP23002 303 SS
Clamp Assembly
(7/8”)
1 MP35612 Brass
SEAL TYPE OPTIONS
Seal PN Seal Type Shaft Dia. Mating Ring
Material
Primary Ring Elastomer Components
MP22273 21 1" Ceramic Carbon Viton 316 SS
MP35610 2 1" Silicon Carbide Carbon Viton 18-8 SS
