MP PUMPS FLOMAX 8 - Page 17

FLOMAX 8 BZ AL (en) Page 17 of 24

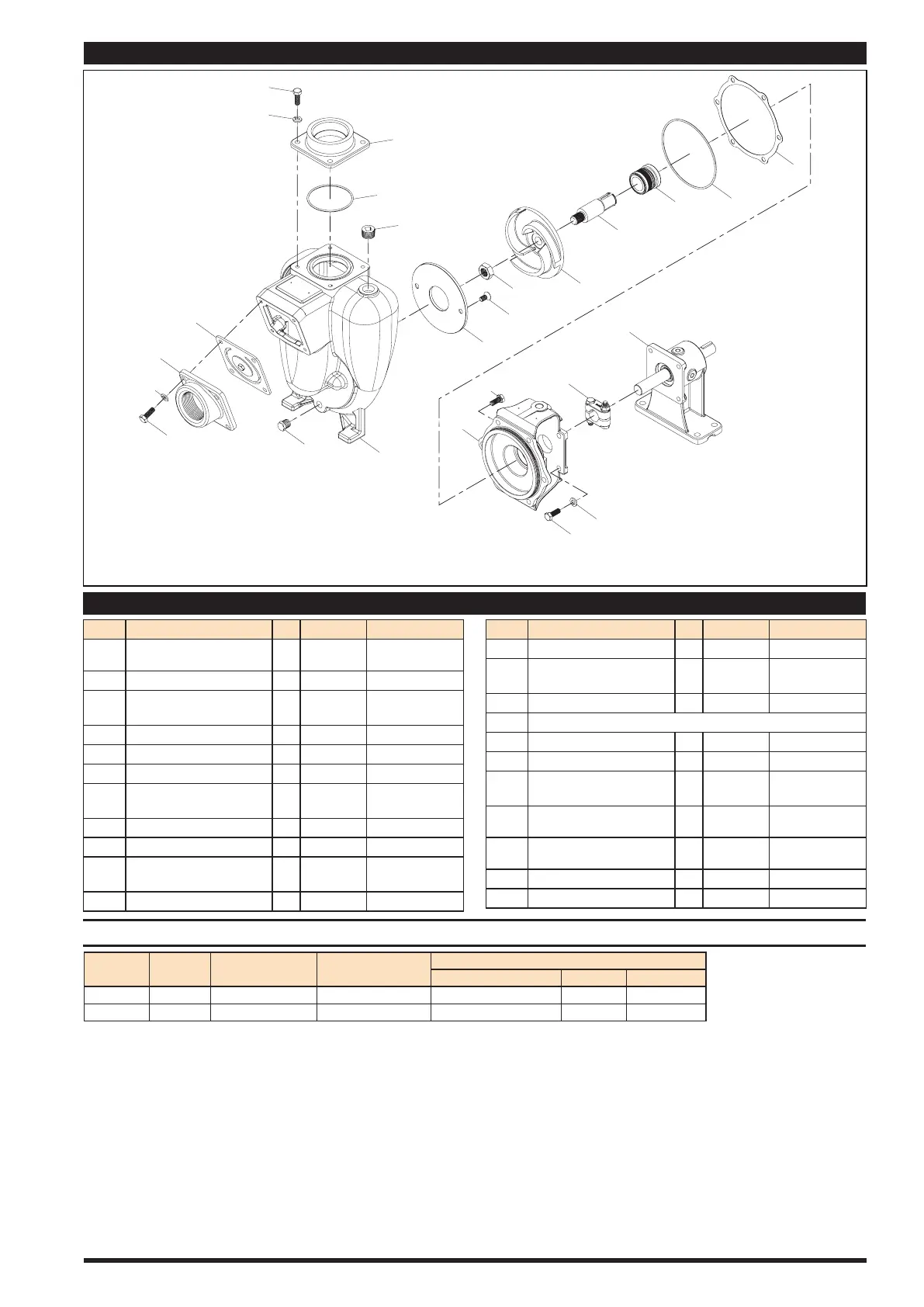

PARTS LIST / FLOMAX 8 PEDESTAL (ALUMINUM)
5
10
11
12
13
14
15
16
17
18
19
21
22
20
2
1
7
8
9
2
6
1
4
3
2
Figure 14
PARTS LIST / FLOMAX 8 PEDESTAL (ALUMINUM)
Item Description
(size)
Qty Part No. Mtl
1
Cap Screw
(HH 5/16” - 18” x 7/8”)
8 MP21242 304 SS
2 Lockwasher
(5/16” x 18”)
14 MP21238 304 SS
3 Suction Flange 1 MP22385
Aluminum
T-6 Cast
4 Flapper Assembly 1 MP23022 Buna
5 Pipe Plug
(HH 1/4” NPT)
1 MP21267 316 SS
6 Housing 1 MP22248 Aluminum T356
7 Flange 1 MP22309
Aluminum
356 T-6 Cast
8 O-Ring
(AS-149)
1 MP37141 Viton
9 Pipe Plug
(1/2" NPT )
1 MP37140 Zinc Plated Steel
10 Wear Plate 1 MP22258
Aluminum #
6061
11 Screw
(FHS 5/1”6 - 18” x 5/8”)
2 MP37137 304 SS
Item Description
(size)
Qty Part No. Mtl
12 Hex Jam Nut 1 MP22655 304 SS
13 Impeller 1 MP22291
Aluminum T-6
Cast
14 Drive Sleeve 1 MP22286 303 SS
15 See table for seal options
16 O-Ring
(AS-568-158)
1 MP34555 Viton
17 Gasket 1 MP22255 Lexide Ni-2085
18 Adapter 1 MP22245
Aluminum
356 T-6 Cast
19
Cap Screw
(5/16” - 18” x 3/4” Patch)
6 MP24965 304 SS
20
Cap Screw
SS
(HH 5/16” - 24” x 0.88”)
4 MP21278 304 SS
21 Clamp Assembly 1 MP23002 303 SS
22 Pedestal Assembly 1 MP26142 Cast Iron
SEAL TYPE OPTIONS
Seal PN Seal Type Shaft Dia. Mating Ring
Material
Primary Ring Elastomer Components
MP22273 21 1" Ceramic Carbon Viton 316 SS
MP22560 21 1" Silicon Carbide Silicon Carbide Viton 316 SS
