PARTS LIST / FLOMAX 8 CC (56C and 145TC) (ALUMINUM)
1
9
10
11
2
7
8
12
6
5
1
13
14
15
16
17
18
19
22
23
21
20
24
4
3
2

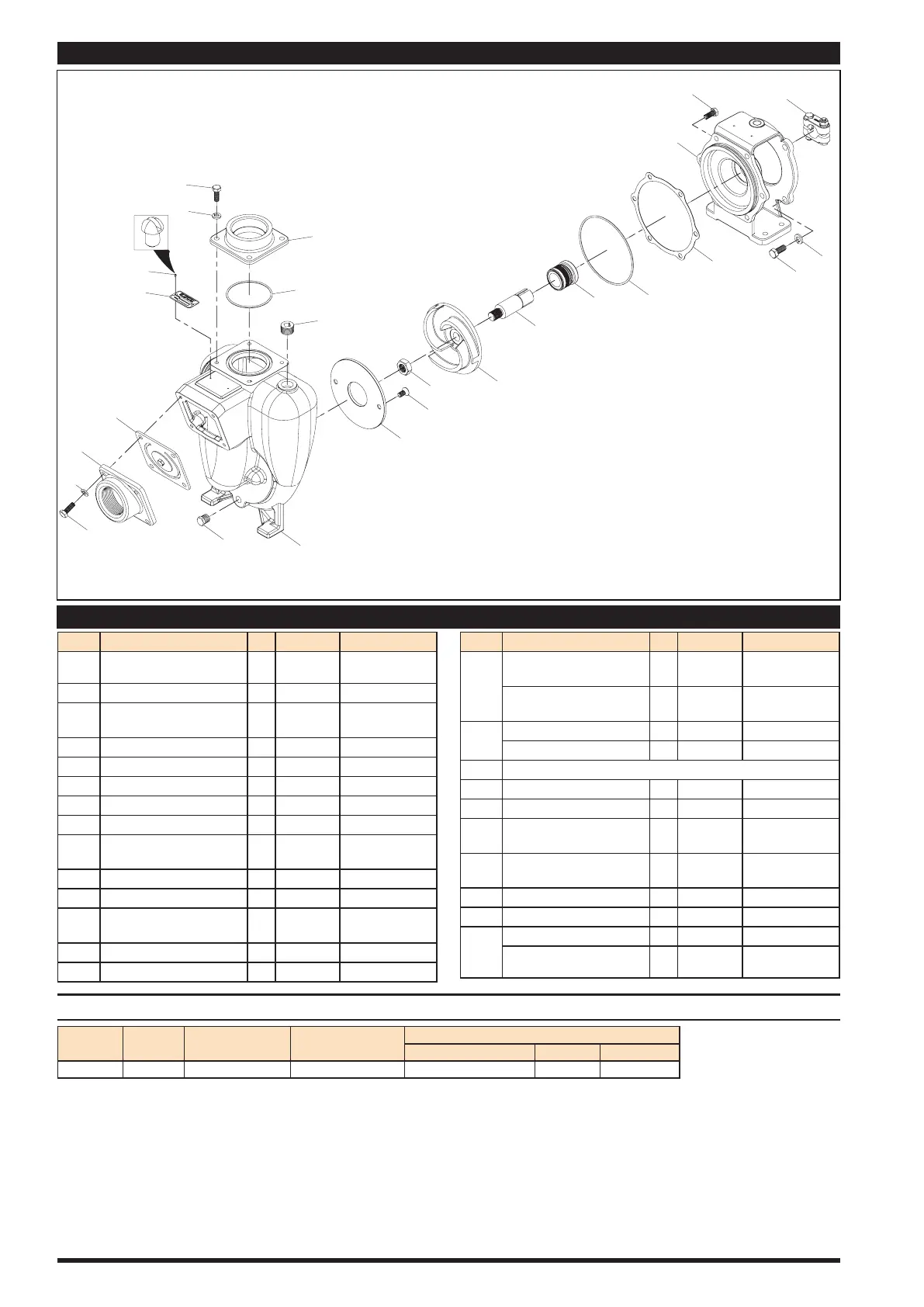

Figure 13
PARTS LIST / FLOMAX 8 CC (56C and 145TC) (ALUMINUM)
Item Description
(size)
Qty Part No. Mtl
1
Cap Screw
(HH 5/16” - 18” x 7/8”)
8 MP21242 304 SS
2 Lockwasher
(5/16” x 18”)
10 MP21238 304 SS
3 Suction Flange 1 MP22385
Aluminum
T-6 Cast
4 Flapper Assembly 1 MP23022 Buna
5 Lockwasher
(5/16” x 18”)
10 MP21238 304 SS
6 Housing 1 MP22248 Aluminum T356
7 Drive Screw 2 MP21122 304 SS
8 Name Plate 1 MP21183 Aluminum
9 Flange 1 MP22309
Aluminum 356
T-6 Cast
10 O-Ring
(AS-149)
1 MP37141 Viton
11 Pipe Plug
(1/2" NPT )
1 MP37140 Zinc Plated Steel
12 Wear Plate 1 MP22258
Aluminum
#6061
13 Screw
(FHS 5/16” - 18” x 5/8”)
2 MP37137 304 SS
14 Hex Jam Nut 1 MP22655 304 SS
Item Description
(size)
Qty Part No. Mtl
15
IMPELLER
(4.6”)
1 MP26007
Aluminum
T-6 Cast
IMPELLER
(5.0”)
1 MP22291
Aluminum
T-6 Cast
16
Drive Sleeve
(5/8”)
1 MP22253 303 SS
Drive Sleeve
(7/8”)
1 MP25664 303 SS
17 See Table For Seal Options
18 O-Ring
(AS-568-158)
1 MP34555 Viton
19 Gasket 1 MP22255 Lexide Ni-2085
20 Adapter 1 MP25946
Aluminum
T-6 Cast
21
Cap Screw
(5/16” - 18” x 3/4” Patch
)
6 MP24965 304 SS
22 Cap Screw
(3/8” - 16” x 7/8”)
4 MP21251 304 SS
23 Lockwasher
(3/8” x 1/8”)
4 MP21266 304 SS
24
Clamp Assembly
(7/8”)
1 MP23003 303 SS
Clamp Assembly
(3/4 “and 5/8”)
1 MP21946 303 SS
SEAL TYPE OPTIONS
Seal PN Seal Type Shaft Dia. Mating Ring
Material
Primary Ring Elastomer Components
MP22273 21 1" Ceramic Carbon Viton 316 SS
