MP PUMPS FLOMAX 8 - Page 15

FLOMAX 8 BZ AL (en) Page 15 of 24

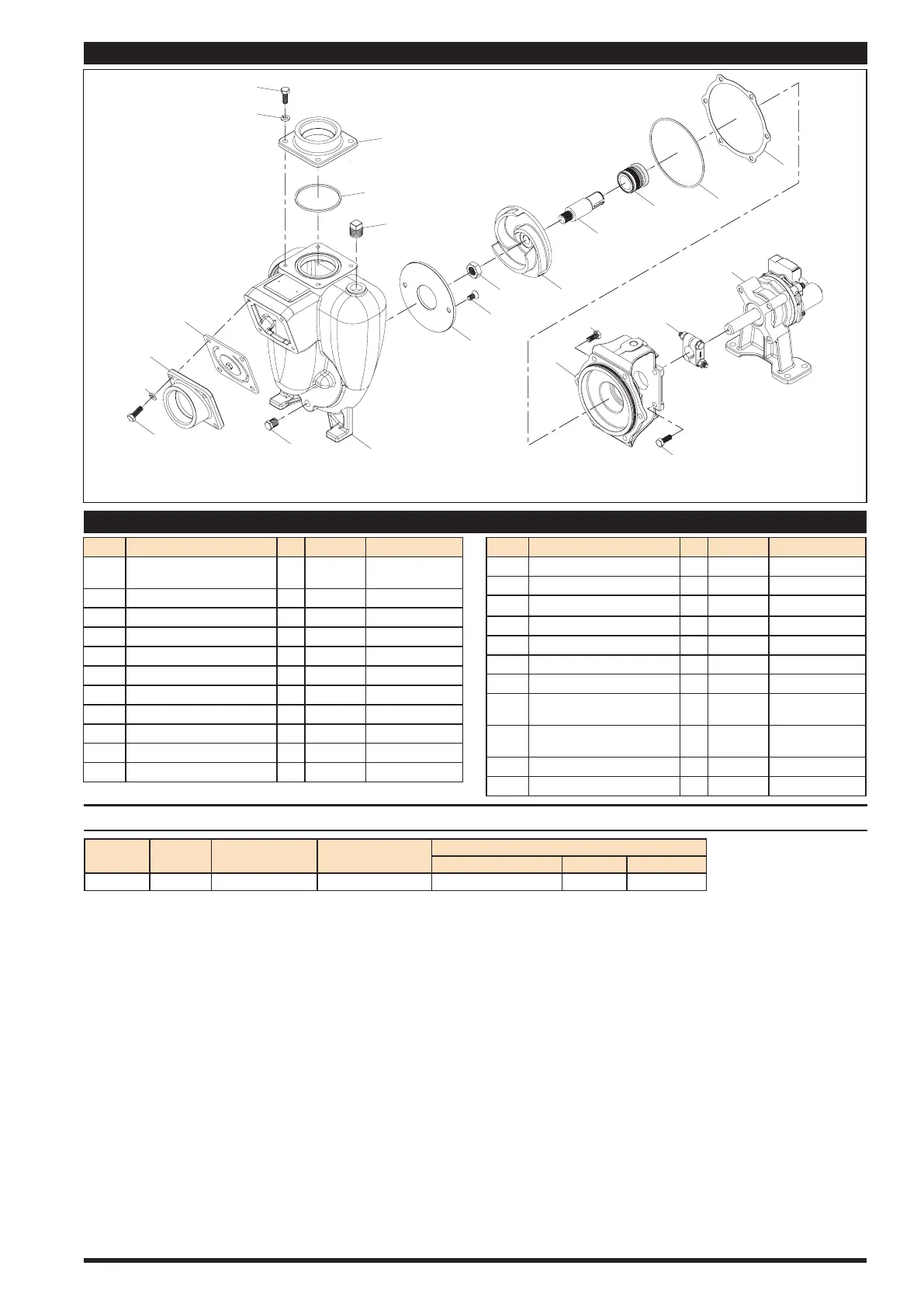

PARTS LIST / FLOMAX 8 HYDRAULIC (0.22, 0.37, 0.45 and 0.58) (BRONZE)
5
10
11
12
13
14
15
16
17
18
19
21
22
20
1
7
8
9
2
6
1
4
3
2
Figure 12
PARTS LIST / FLOMAX 8 HYDRAULIC (0.22, 0.37, 0.45 and 0.58) (BRONZE)
Item Description
(size)
Qty Part No. Mtl
1
Cap Screw
(HH 5/16” - 18” x 7/8”)
8 MP21242 304 SS
2 Lockwasher
(5/16” x 18”)
10 MP21238 304 SS
3 Suction Flange 1 MP22386 Federalloy I-836
4 Flapper Assembly 1 MP23022 Buna
5 Pipe Plug
(1/4” NPT)
1 MP41475 Steel
6 Housing 1 MP22250 Federalloy I-836
7 Discharge Flange 1 MP22310 Federalloy I-836
8 Square Ring 1 MP39436 Viton
9 Pipe Plug 1 MP22656 303 SS
10 Wear Plate 1 MP22259 Brass
11 Screw
(FHS 5/16”-18” x 5/8”)
2 MP37137 304 SS
Item Description
(size)
Qty Part No. Mtl
12 Hex Jam Nut 1 MP22655 304 SS
13 Impeller 1 MP22292 Federalloy I-836
14 Drive Sleeve 1 MP22286 303 SS
15 Seal Assembly 1 MP22272 Ccs Viton
16 O-Ring
(AS-568-158)
1 MP34555 Viton
17 Gasket 1 MP22255 Lexide Ni-2085
18 Adapter 1 MP22246 Federalloy I-836
19
Cap Screw
(5/16”-18” x 3/4” Patch)
6 MP24965 304 SS
20
Cap Screw SS
(HH 5/16” - 24” x 0.88”)
4 MP21278 304 SS
21 Clamp Assembly 2 MP23002 303 SS
22 Hyd Ped Asy
(0.372”)
1 MP36447 Cast Iron
SEAL TYPE OPTIONS
Seal PN Seal Type Shaft Dia. Mating Ring
Material
Primary Ring Elastomer Components
MP22273 21 1" Ceramic Carbon Viton 316 SS
