MP PUMPS FLOMAX 8 - Page 14

Page 14 of 24 FLOMAX 8 BZ AL (en)

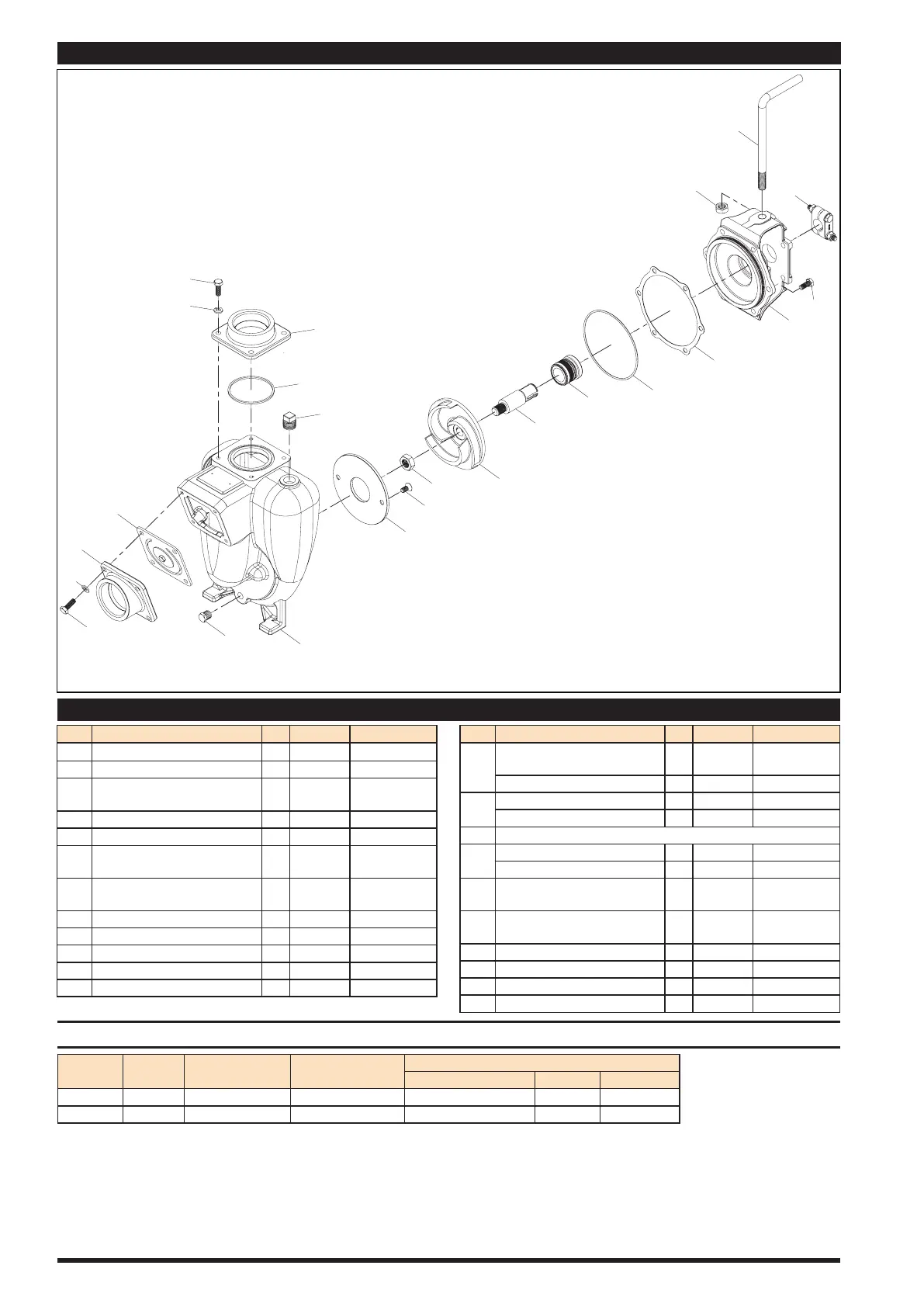

PARTS LIST / FLOMAX 8 PEDESTAL ENGINE MOUNT (BRONZE)
1
7
8
9
2
10
6
5
1
11
12
13
14
15
16
17
18
19
20
21
22
4
3
2
Figure 11
PARTS LIST / FLOMAX 8 PEDESTAL ENGINE MOUNT (BRONZE)
Item Description
(size)
Qty Part No. Mtl
1 Cap Screw
(HH 5/16”-18” x 7/8”)
8 MP21242 304 SS
2 Lockwasher
(5/16” x 18”)
10 MP21238 304 SS
3 Suction Flange 1 MP22386
Federalloy
I-836
4 Flapper Assembly 1 MP23022 Buna
5 Pipe Plug
(HH 1/4” NPT)
1 MP21267 316 SS
6 Housing 1 MP22250
Federalloy
I-836
7 Discharge Flange 1 MP22310
Federalloy
I-836
8 Square Ring 1 MP39436 Viton
9 Pipe Plug 1 MP22656 303 SS
10 Wear Plate 1 MP22259 Brass
11 Screw
(FHS 5/16” - 18” x 5/8”)
2 MP37137 304 SS
12 Hex Jam Nut 1 MP22655 304 SS
Item Description
(size)
Qty Part No. Mtl
13
Impeller
(5.0”)
1 MP22292
Federalloy
I-836
Impeller
(5.0”)
1 MP22294 316 SS
14
Drive Sleeve 1 MP22286 303 SS
Drive Sleeve 1 MP33592 Duplex 2205
15 See Table for seal options
16
O-Ring
(AS-568-158)
1 MP34555 Viton
O-Ring
(AS-568-158)
1 MP36910 Buna
17 Gasket 1 MP22255
Lexide
Ni-2085
18 Adapter 1 MP22246
Federalloy
I-836
19 Cap Screw
(5/16” - 18” x 3/4” Patch)
6 MP24965 304 SS
20 Hex Jam Nut
(1/2” - 13”)
1 MP22637 Steel
21 Handle 1 MP21938 Steel
22 Clamp Assembly
(3/4" and 5/8" )
1 MP23002 304 SS
SEAL TYPE OPTIONS
Seal PN Seal Type Shaft Dia. Mating Ring
Material
Primary Ring Elastomer Components
MP22273 21 1" Ceramic Carbon Viton 316 SS
MP25015 21 1" Ceramic Carbon Buna 18-8 SS
