MPM MPM-45-IM-07 - Technical Information and Installation; Technical Specifications; Installation Requirements

TECHNICAL SPECIFICATION
Cooking Hob MPM-45-IM-07 MPM-60-IM-04 MPM-60-IM-05
Cooking Zones 3 Zones 4 Zones 4 Zones
Supply Voltage 220-240 V AC 220-240 V AC 220-240 V AC
Installed Electric Power 5000-6100 W 6600-7200 W 6600-7200 W
Product Size L×W×H(mm) 450x510x55 590×520×55 590×520×55
Building-in Dimensions A×B (mm) 425x495 565×495 565×495
Weight and Dimensions are approximate. Because we continually strive to improve our pro-
ducts we may change specifications and designs without prior notice.
SECTION 5. INSTALLATION
5.1. SELECTION OF INSTALLATION EQUIPMENT

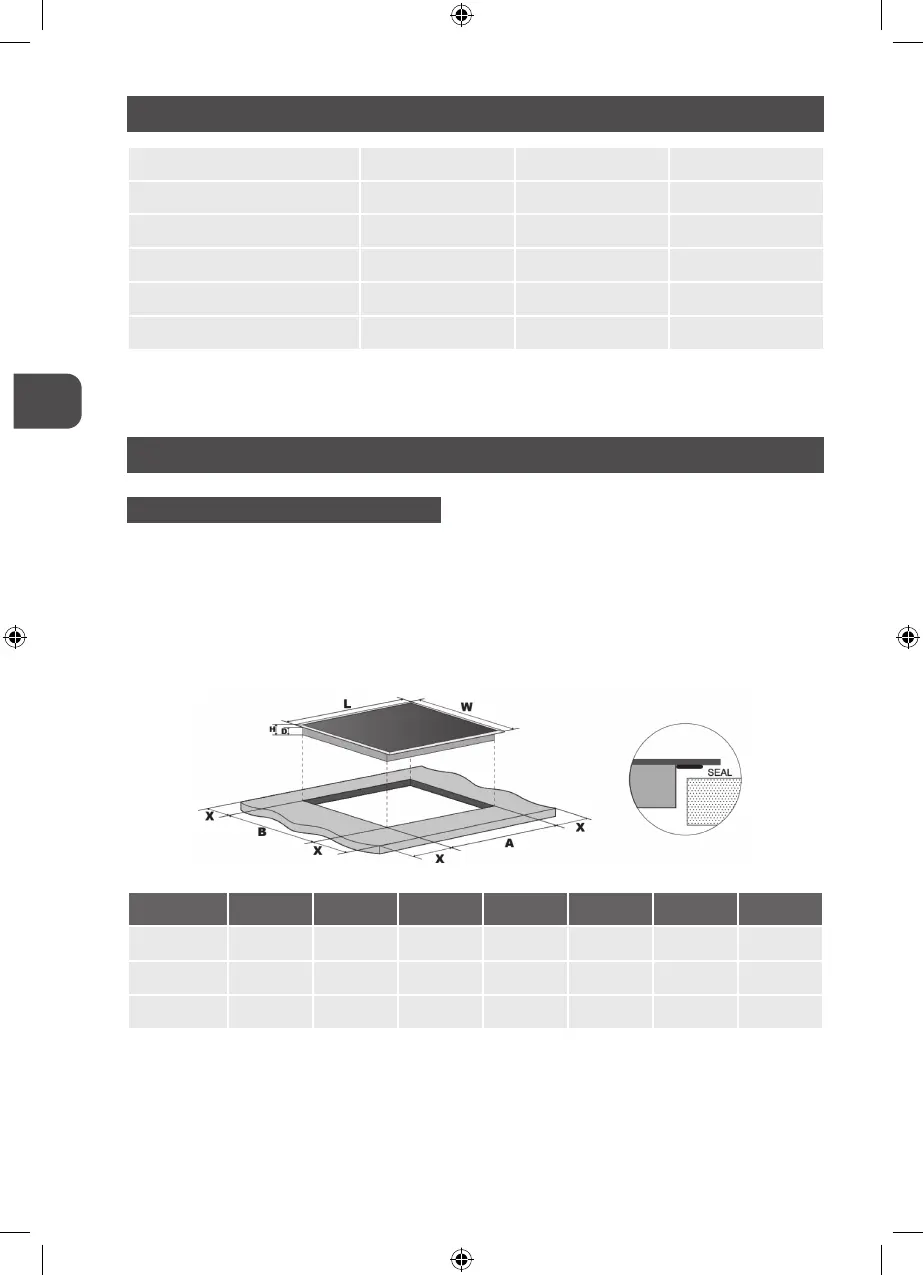

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be preserved around
the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work
surface material to avoid larger deformation caused by the heat radiation from the hotplate.
As shown below:
MODEL L [mm] W[mm] H [mm] D [mm] A[mm] B [mm] X [mm]
MPM-45-IM-07 450 510 62 58 425 495 50 min.
MPM-60-IM-04 590 520 62 58 560 490 50 mini
MPM-60-IM-05 590 520 62 58 560 490 50 mini
