MPP Solar 5KW User Manual

19

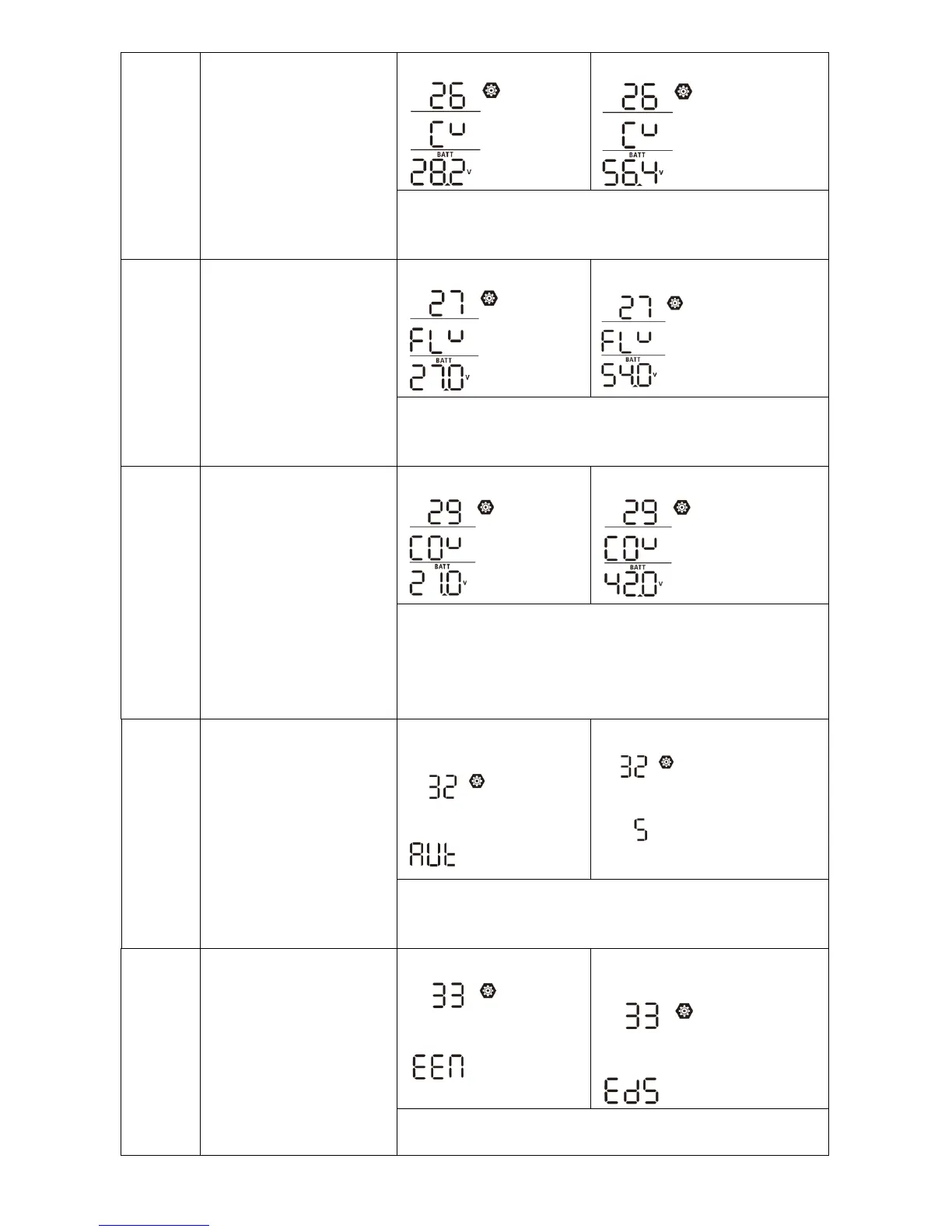

26
Bulk charging voltage
(C.V voltage)
3KW default setting: 28.2V
5KW default setting: 56.4V
If self-defined is selected in program 5, this program can be set
up. Setting range is from 24.0V to 32.0V for 3KW model and
48.0V to 64.0V for 5KW model. Increment of each click is 0.1V.
27
Floating charging voltage
3KW default setting: 27.0V
5KW default setting: 54.0V
If self-defined is selected in program 5, this program can be set
up. Setting range is from 24.0V to 32.0V for 3KW model and
48.0V to 64.0V for 5KW model. Increment of each click is 0.1V.
29
Low DC cut-off voltage
3KW default setting: 21.0V
5KW default setting: 42.0V
If self-defined is selected in program 5, this program can be set
up. Setting range is from 20.0V to 27.0V for 3KW model and
40.0V to 54.0V for 5KW model. Increment of each click is 0.1V.
Low DC cut-off voltage will be fixed to setting value no matter
what percentage of load is connected.
32
Bulk charging time
auto-charging time
(default)
5min
If “User-Defined” is selected in program 05, this program can be
set up. Setting range is from 5min to 900min. Increment of each
click is 5min. Otherwise, Keeping auto-charging time.
33
Battery equalization
Battery equalization enable
Battery equalization disable
(default)
If “Flooded” or “User-Defined” is selected in program 05, this
program can be set up.
