INTRODUCTION
This hybrid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery
power.
Battery

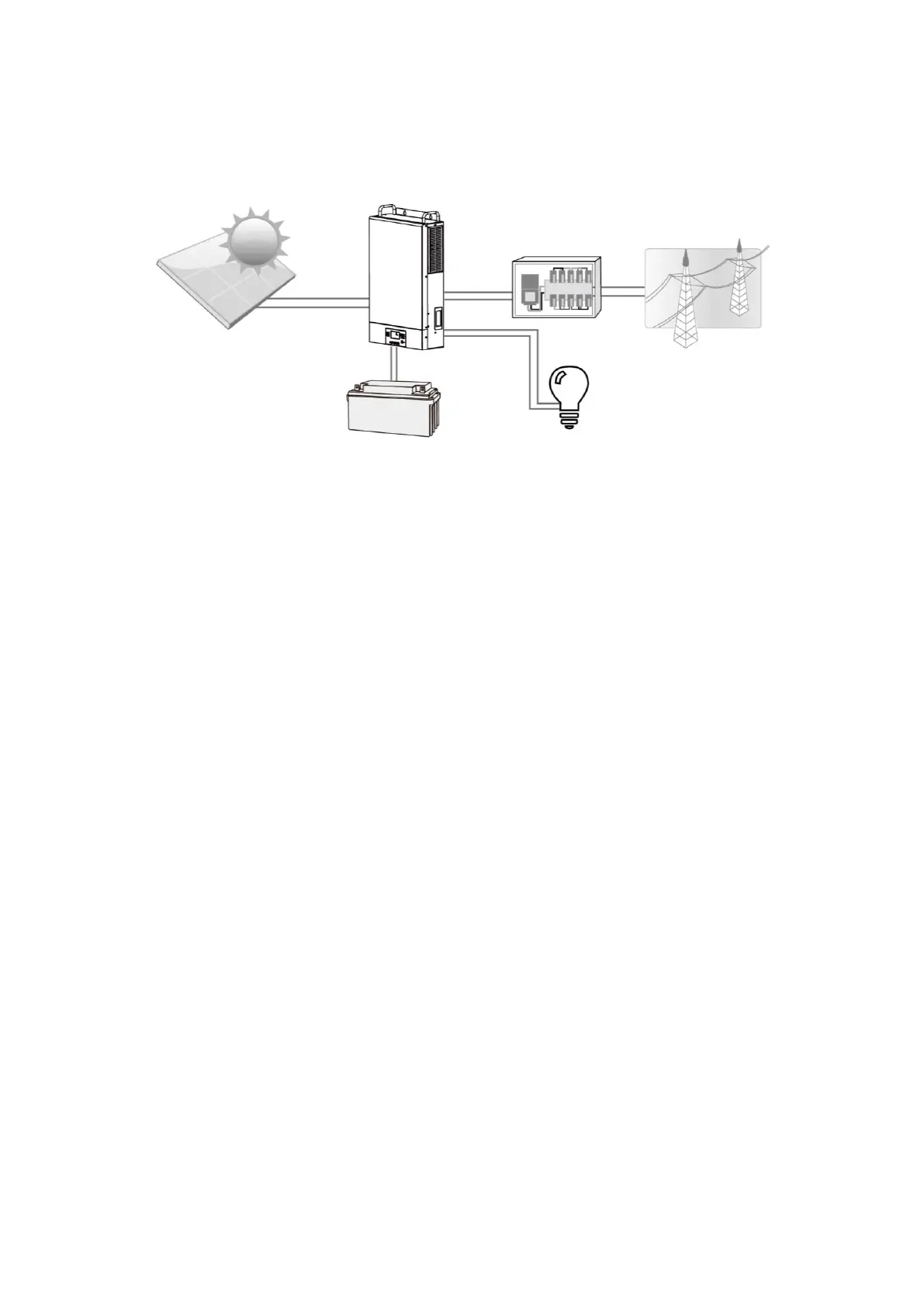

Figure 1 Basic hybrid PV System Overview
Depending on different power situations, this hybrid inverter is designed to generate continuous power from PV
solar modules (solar panels), battery, and the utility. When MPP input voltage of PV modules is within
acceptable range (see specification for the details), this inverter is able to generate power to feed the grid
(utility) and charge battery. Never connect the positive and negative terminals of the solar panel to
the ground. See Figure 1 for a simple diagram of a typical solar system with this hybrid inverter.
