MPP Solar LV2424 User Manual

37
 Nine inverters in parallel
④
① ② ③
⑨⑧
⑤ ⑥ ⑦

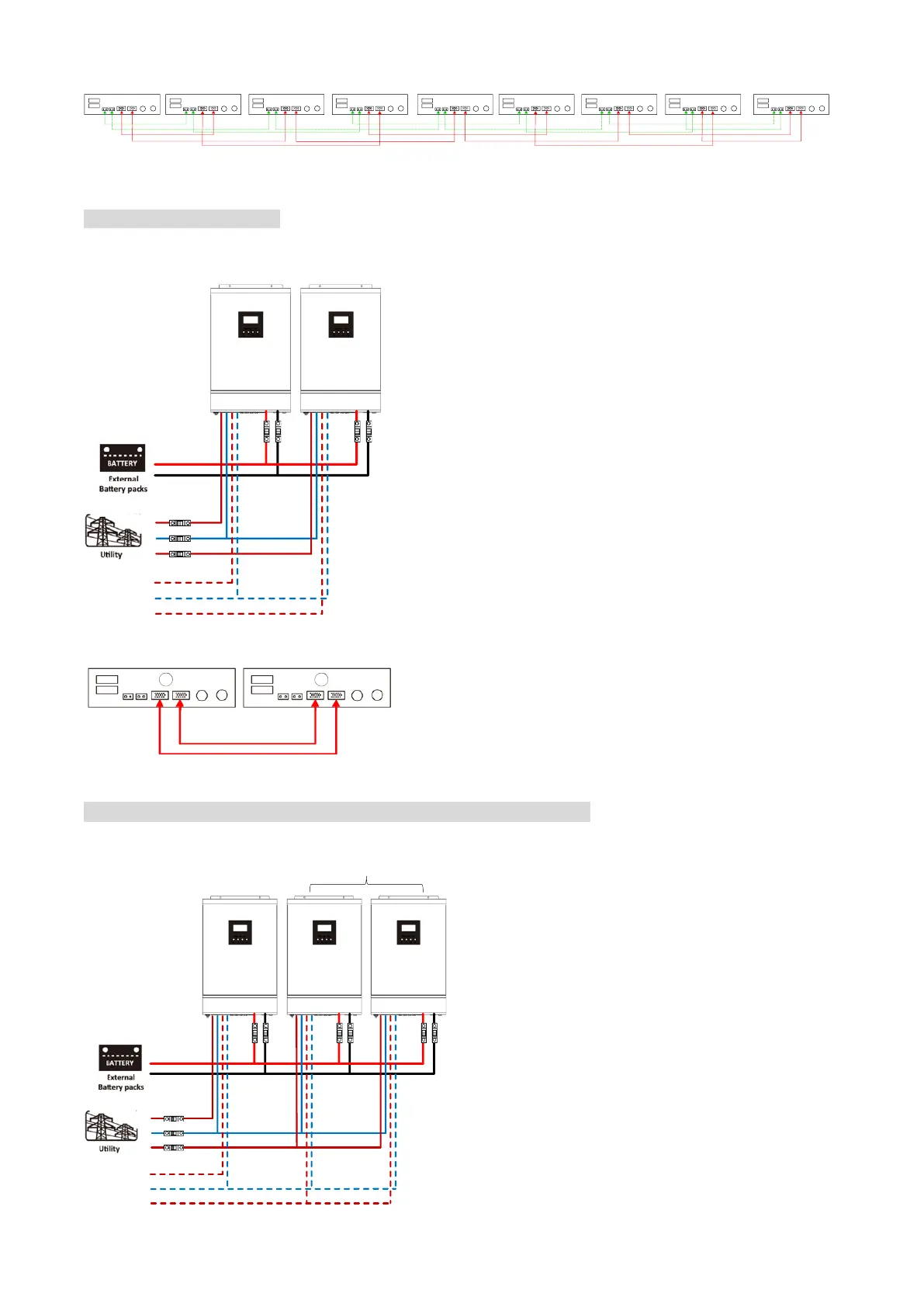

5-2. Support 2-phase equipment (only for 2.4KW model)
Two inverters in each phase:
Power Connection
●
L1
N
L2
Load
●
L1
N
L2
P1 P2
●
Communication Connection
❶ ❷
Two inverters in one phases and one inverter for the remaining phase:
Power Connection
●
L1
N
L2
Load
●
L1
N
L2
P1 P2
●
●
●
●
● ●
●
●
