Communication Connection
❶ ❷
❸
P1 P2

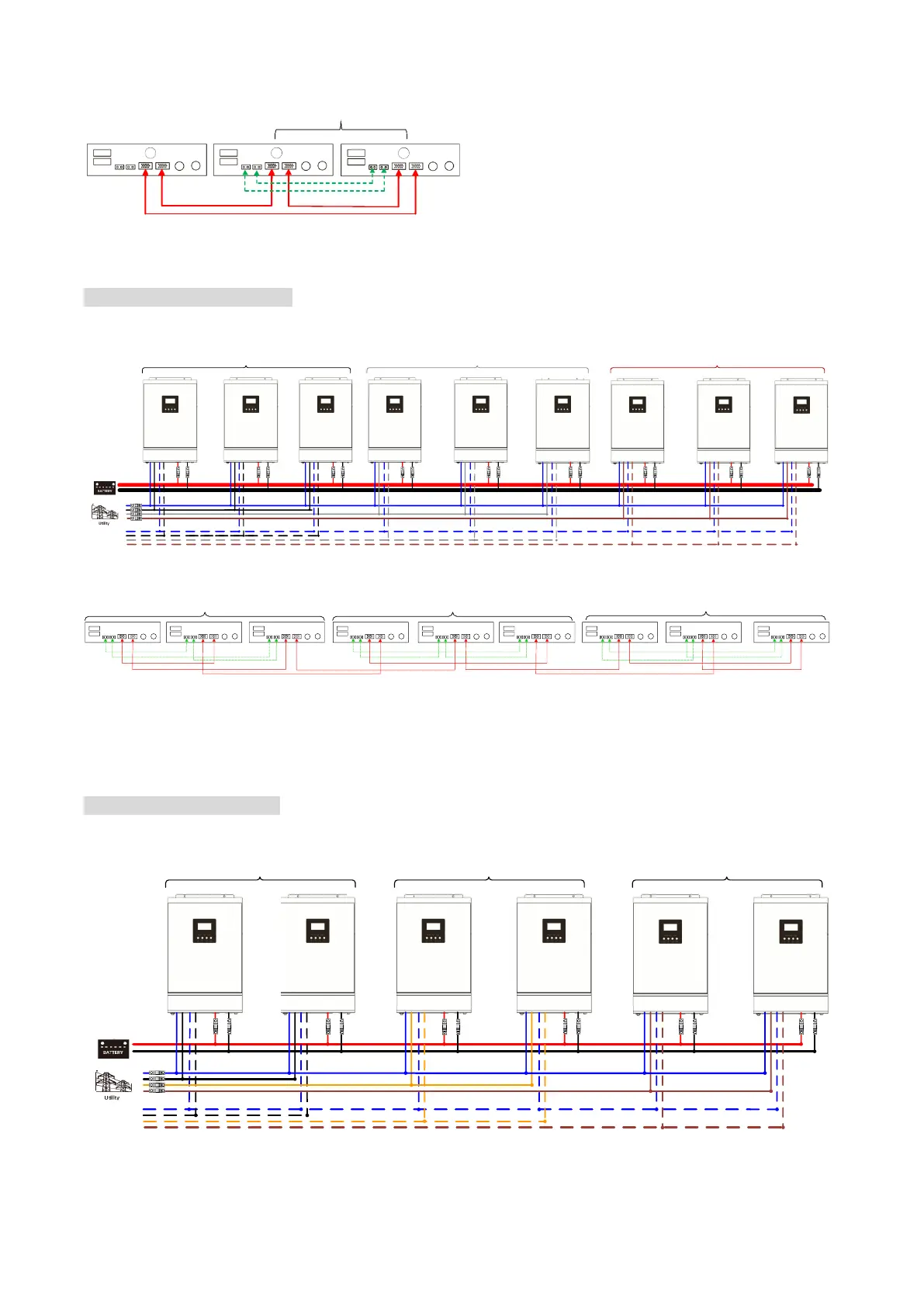

5-3. Support 3-phase equipment
Three inverters in each phase:
Power Connection
N
P1
P2
P3
N
P1
P2
P3
Load
P1 P2
P3
Communication Connection
P1
P2
P3
④
① ② ③
⑨⑧
⑤ ⑥ ⑦
WARNING: Do not connect the current sharing cable between the inverters which are in different phases.
Otherwise, it may damage the inverters.
Two inverters in each phase:
Power Connection
N
L1
L2
L3
N
L1
L2
L3
Load
P1 P2 P3
