MPP Solar LV2424 User Manual

39
Communication Connection

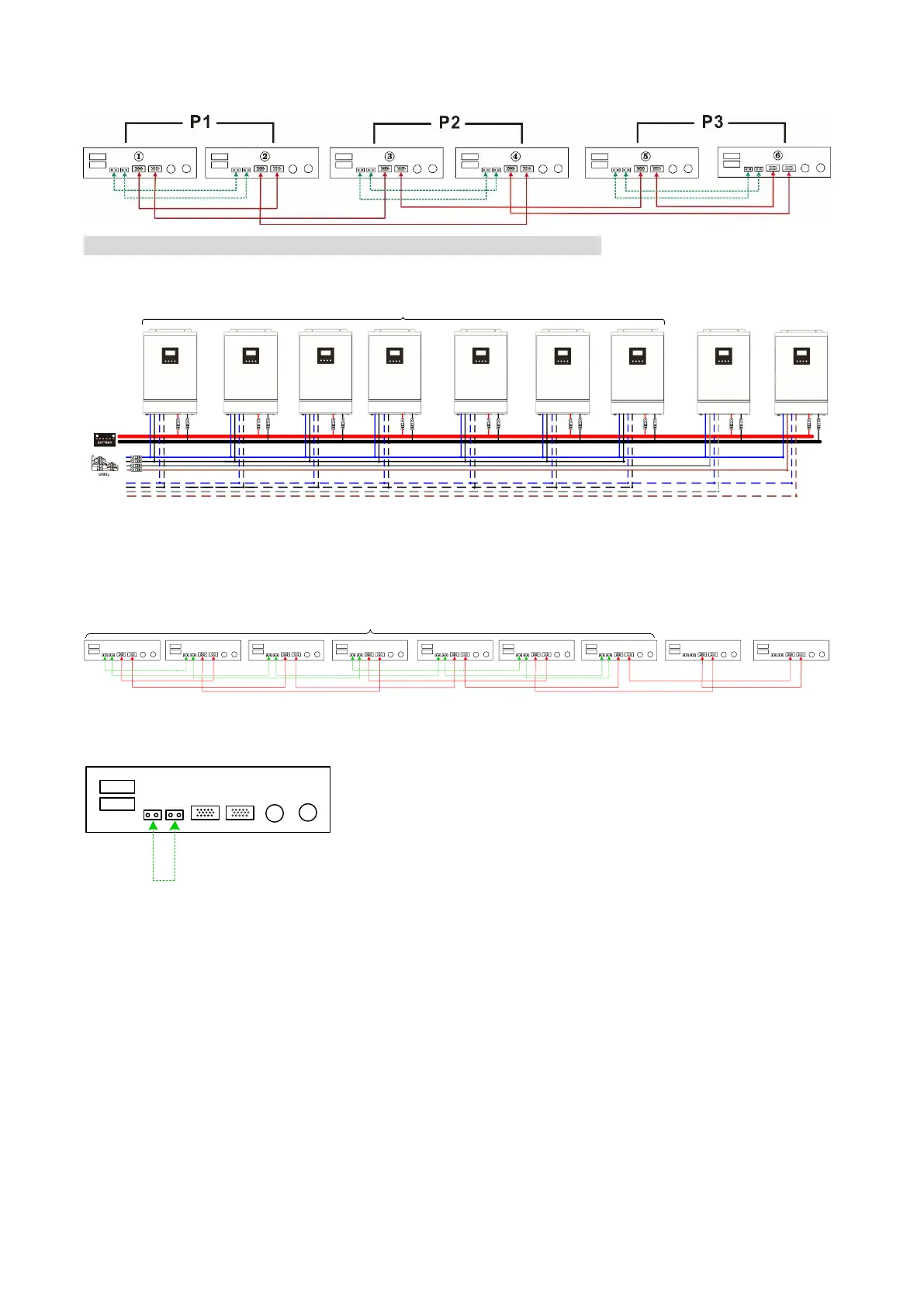

Seven inverters in one phase and one inverter for the other two phases:
Power Connection
N
P1
P2
P3
N
P1
P2
P3
Load
P1
P2 P3
Note: It’s up to customer’s demand to pick 7 inverters on any phase.
P1: L1-phase, P2: L2-phase, P3: L3-phase.
Communication Connection
④
① ② ③
⑨⑧
⑤ ⑥ ⑦
P1
P2
P3
Note: If there is only one unit in one phase, this unit doesn’t need to connect the current sharing cable.
Or you connect it like as below:
⑧
