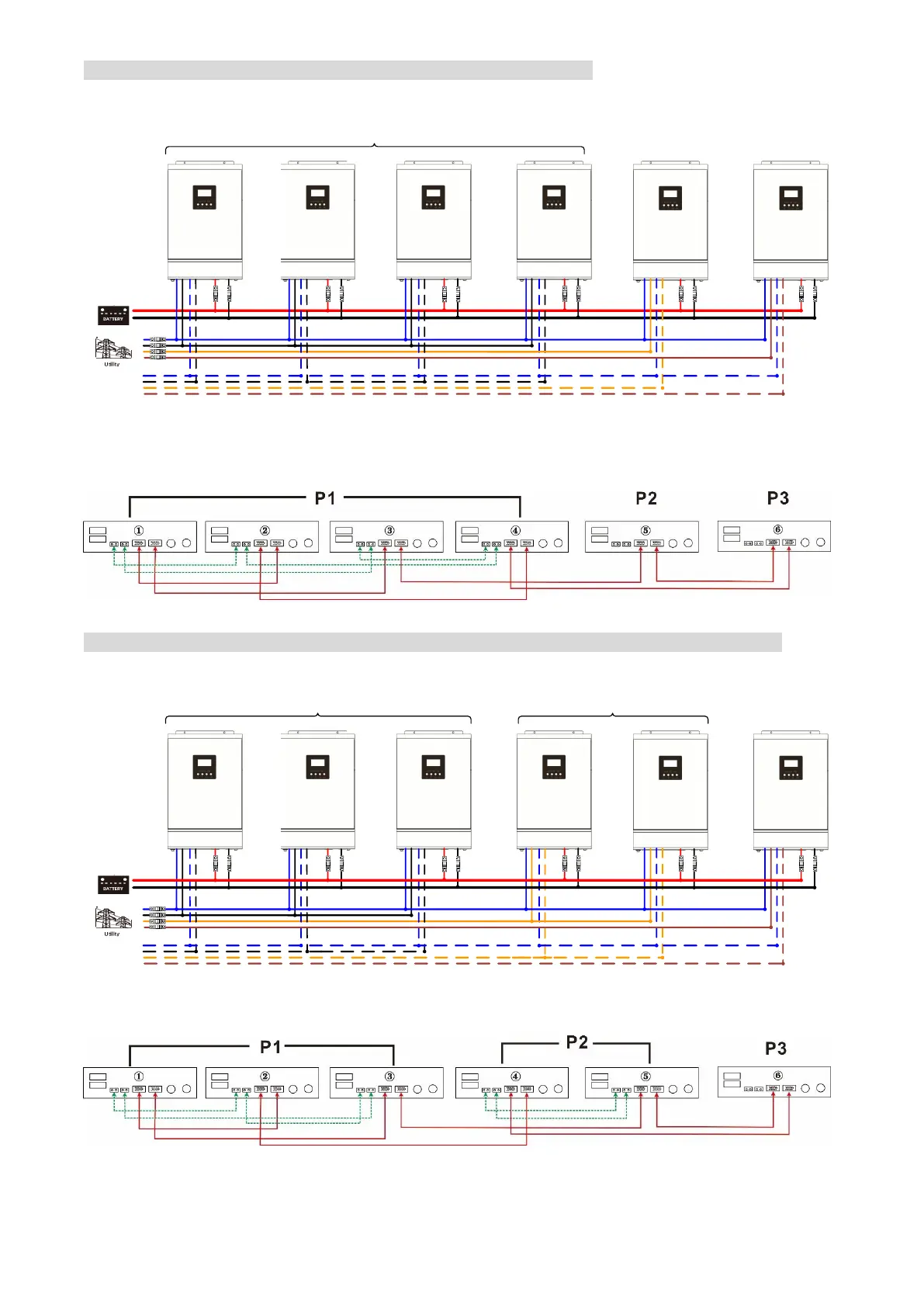

Four inverters in one phase and one inverter for the other two phases:
Power Connection
N
L1
L2
L3
N
L1
L2
L3
Load
P1
P2 P3
Note: It’s up to customer’s demand to pick 4 inverters on any phase.
P1: L1-phase, P2: L2-phase, P3: L3-phase.
Communication Connection
Three inverters in one phase, two inverters in second phase and one inverter for the third phase:
Power Connection
N
L1
L2
L3
N
L1
L2
L3
Load
P1 P2
P3
Communication Connection
