Display Setting
The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable
information is switched as below order: input voltage, input frequency, PV voltage, charging current,
battery voltage, output voltage, output frequency, load percentage, load in Watt, load in VA, load in Watt,
DC discharging current, main CPU Version and second CPU Version.

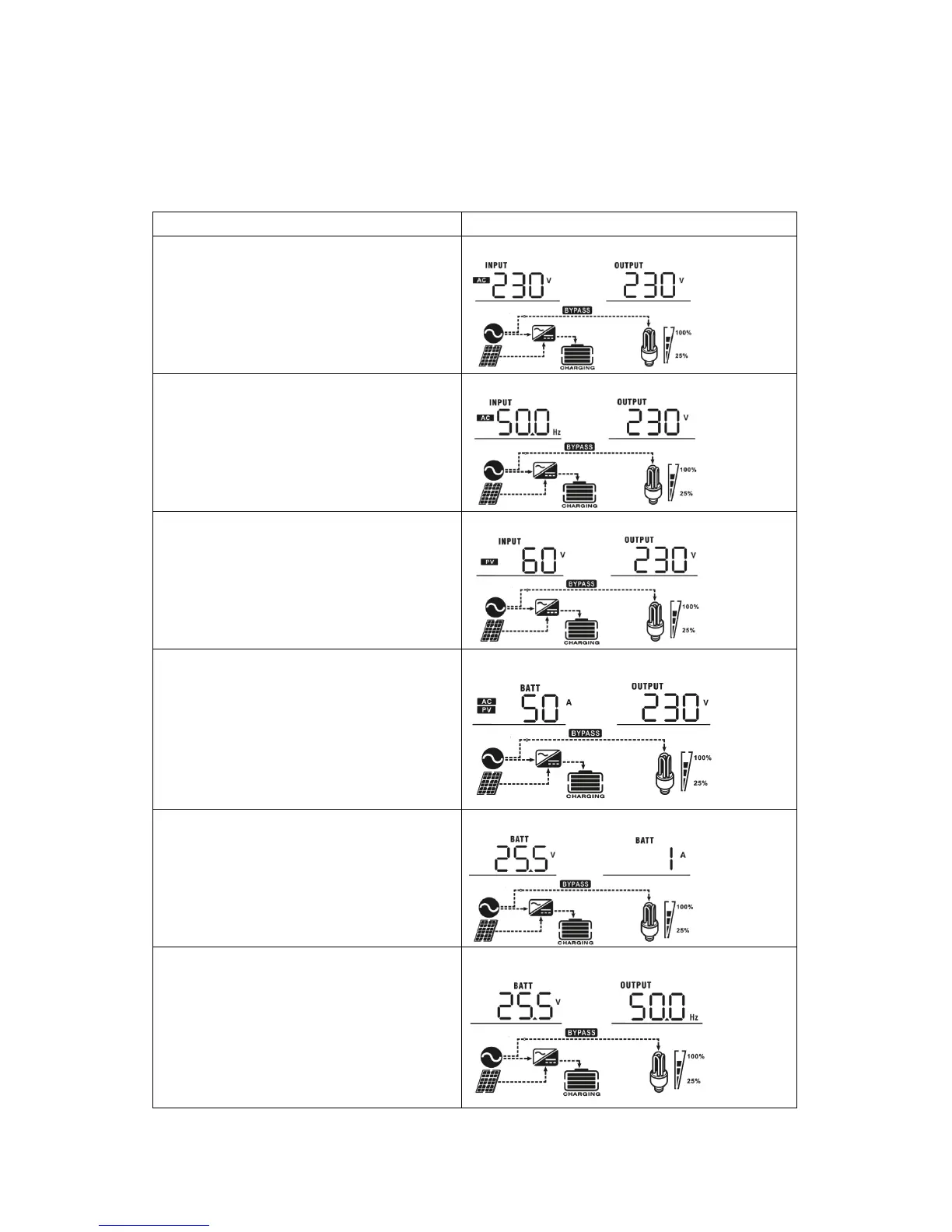

Selectable information
LCD display
Input voltage/Output voltage
(Default Display Screen)
Input Voltage=230V, output voltage=230V
Input frequency
Input frequency=50Hz
PV voltage
PV voltage=60V
Charging current
Charging current=50A
Battery voltage/ DC discharging current
Battery voltage=25.5V, discharging current=1A
Output frequency
Output frequency=50Hz
