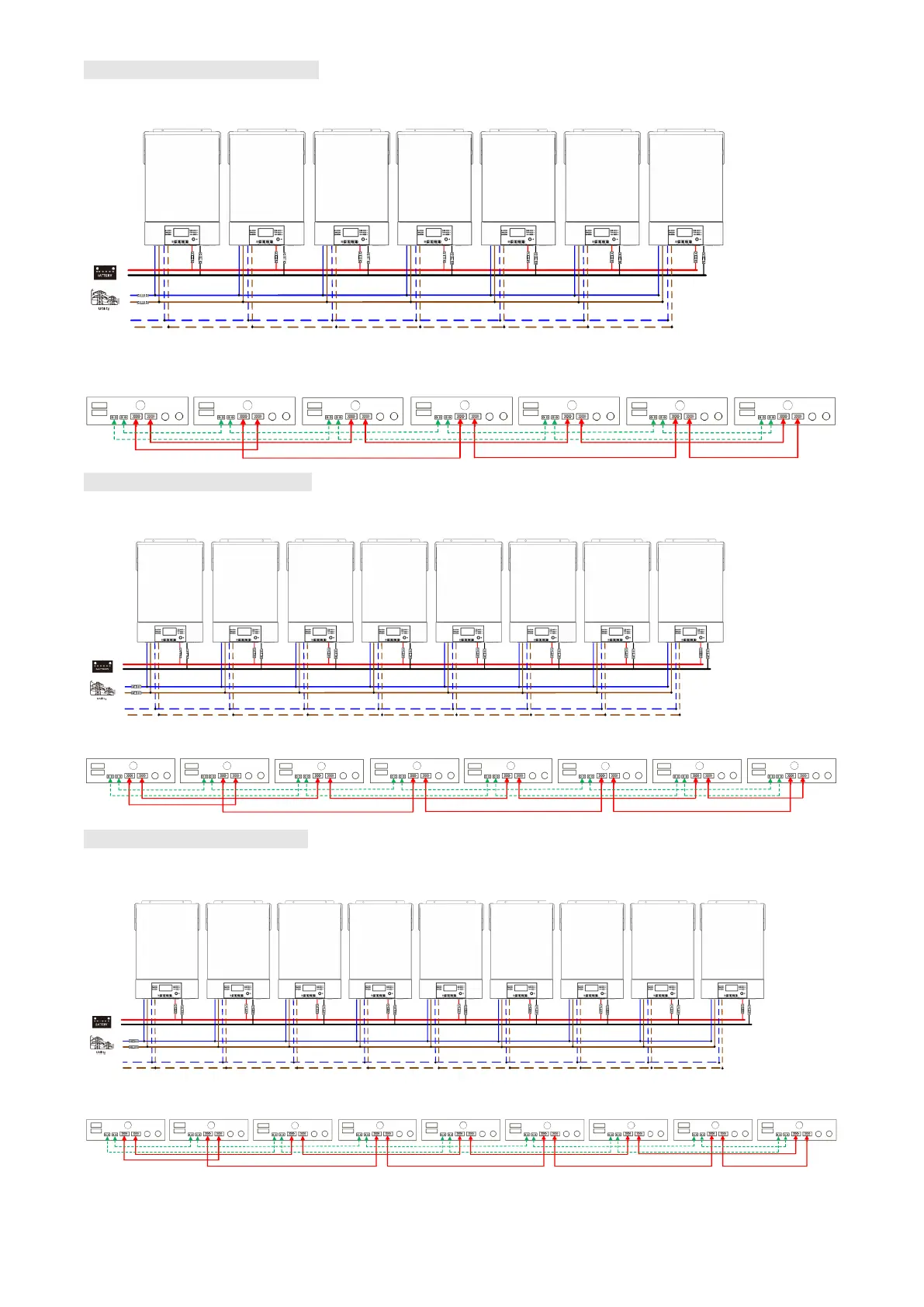

Seven to nine inverters in parallel:
Power Connection
Load
N
L
N
L
Communication Connection
❶ ❷
❸ ❹ ❺
❻
❼
Eight to nine inverters in parallel:
Power Connection
Load
N
L
N
L
Communication Connection
❶ ❷
❸ ❹ ❺
❻
❼
❽
Nine to nine inverters in parallel:
Power Connection
Load
N
L
N
L
Communication Connection
❶ ❷
❸ ❹ ❺
❻
❼
❽ ❾
