OPERATION
Power ON/OFF
Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch
to turn on the unit.
Operation and Display Panel

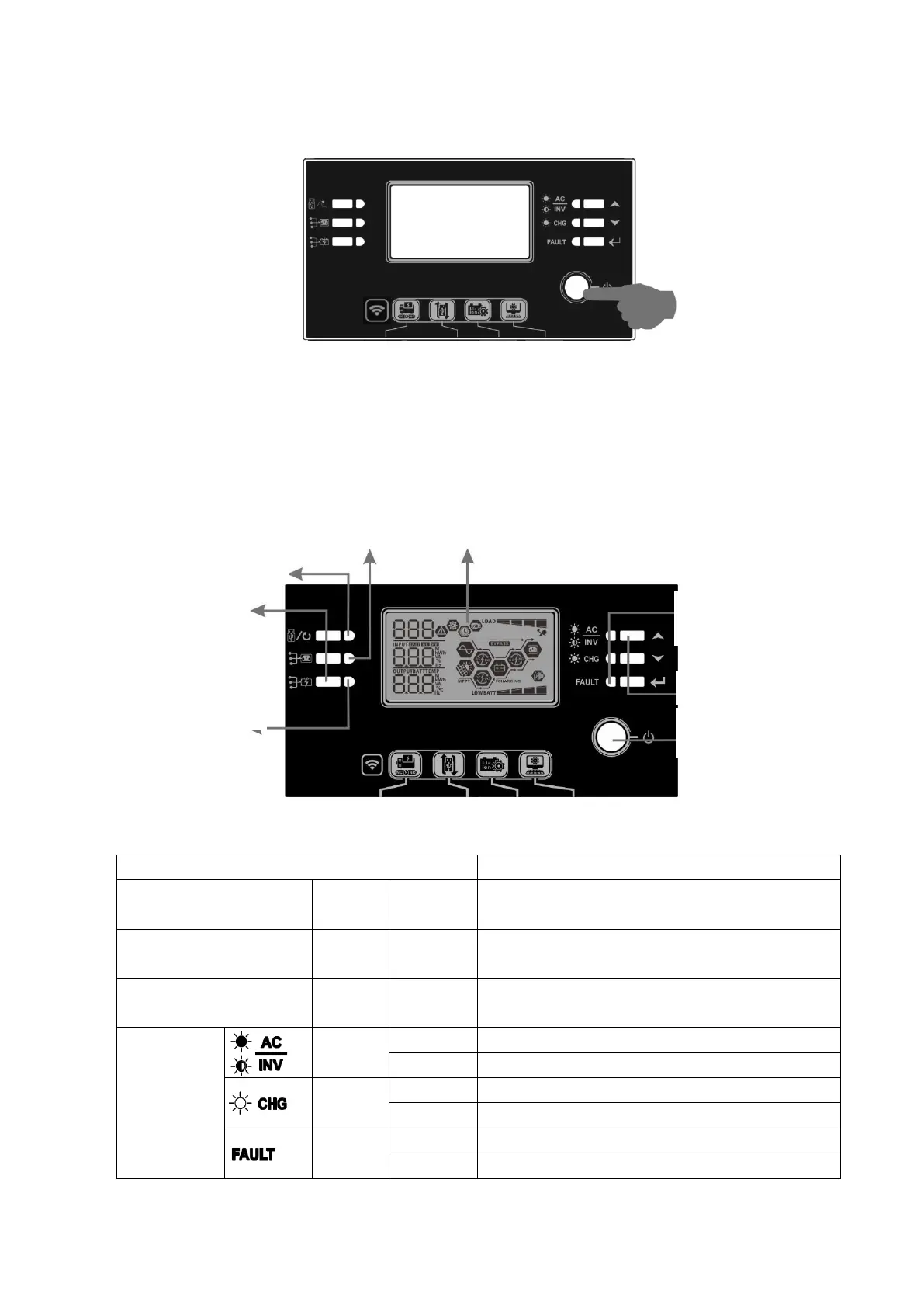

The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes
three indicators, four function keys and a LCD display, indicating the operating status and input/output
power information.
LCD display
LED Indicators
LED Indicator
Messages
Setting LED1
Green
Solid On
Output powered by utility
Setting LED2
Green
Solid On
Output powered by PV
Setting LED3
Green
Solid On
Output powered by battery
Status
Indicator
Green
Solid On
Output is available in bypass mode
Flashing
Output is powered by battery or AC in inverter mode
Green
Solid On
Battery is fully charged
Flashing
Battery is charging.
Red
Solid On
Fault mode
Flashing
Warning mode
Status
indicators
Function keys
On/off switch
Function keys
Setting LED 3
Setting LED 1
Setting LED 2
