PAGE 46 — DCA25SSIU4F 60 HZ GENERATOR • OPERATION MANUAL — REV. #4 (01/17/18)

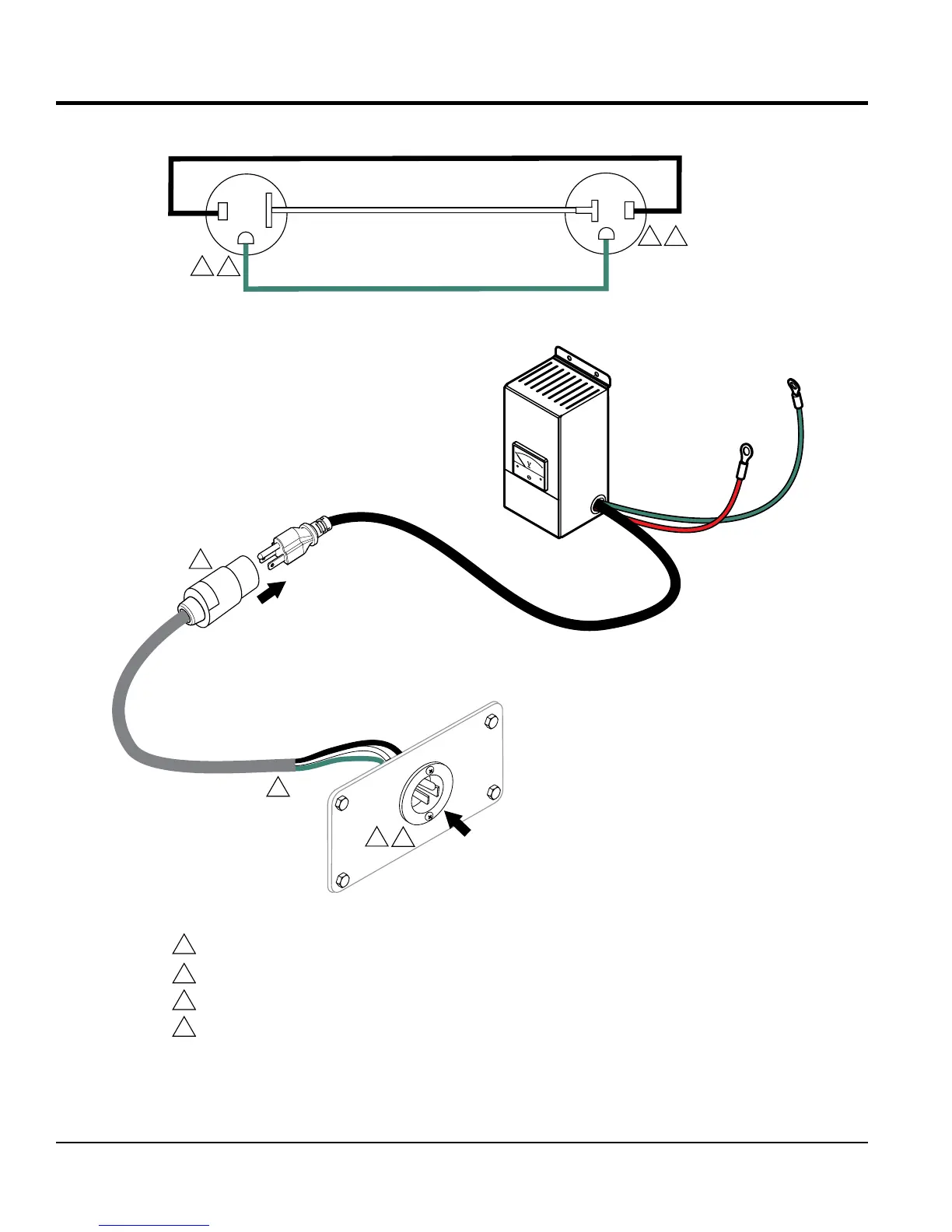

BATTERY CHARGER WIRING DIAGRAM
TO STARTER “B”
TERMINAL
RED 16 AWG.
TO CHASSIS
GROUND
GREEN 16 AWG.
NEMA 5-15, 15A, 120 VAC, P/N EE6176 (HBL5278C/HUBBLE RECEPTACLE).
NOTES:
1
2
RECEPTACLE IS MOUNTED ON OUTPUT TERMINAL PANEL ASSY.
20 AMP, 5-20R RECEPTACLE, P/N EE6131 (HBL5369C/HUBBLE RECEPTACLE).
3
4
CORD, CAROL 3/C 14 AWG., P/N EE56557.
120 VAC INPUT, INSERT EXTERNAL
POWER CORD HERE.
3
1
2
4
BLACK 14 AWG. LINE (L)120VAC INPUT
WHITE 14 AWG. NEUTRAL (N)
GREEN 14 AWG. GROUND (G)
1
2
3
4
A
B
AB
