Three Phase Wiring Diagram with TEMPO/PLUS control
Installation Instructions for Models:
MS-Super 4T, MS-Super 5T and MS-Super 6T
1. Install each unit as in a single installation as close to each other as possible.
2. IMPORTANT: Power must be disconnected at the main electrical supply. Remove steam generator covers.
3. Connect the TEMPO/PLUS control to either unit per instructions supplied
with the TEMPO/PLUS control.
4. Remove one knock-out on each generator as shown. Insert the ends of interconnecting cable provided
(PN 103904) through the knock-outs as shown in diagram A, page 3. Connect each end to the printed
circuit board as shown.
5. Connect separate plumbing and power supplies for each unit.
TRANSFORMER
HEATING
ELEMENT
HEATING
ELEMENT
CONTROL BOARD
CONTACTOR
GROUND
WATER
FEED
SOLENOID
VALVE
WATER
FEED
SOLENOID
VALVE
C
S
G
GREEN
BLACK
BLACK
L1 L2 L3
WHITE
DARK
BLUE
TO PROBE
AUTOFLUSH (optional)
TANDEM
CABLE
103904
CONTROL BOARD
GROUND
CONTACTOR
LIGHT
BLUE
LIGHT
BLUE
WHITE
PURPLE
PURPLE
GREEN
C
S
WHITE
GRAY
WHITE
GRAY
G
POWER INPUT
POWER INPUT
BLACK
BLACK
L3L2L1
WHITE
DARK
BLUE
TRANSFORMER
TO PROBE
TEMPO/EXT
(optional)
TEMPO/PLUS
AUTOFLUSH
(optional)
CABLE
CABLE
CABLE
CABLE
FACTORY
WIRING
FIELD
WIRING
LEGEND
(All Diagrams)

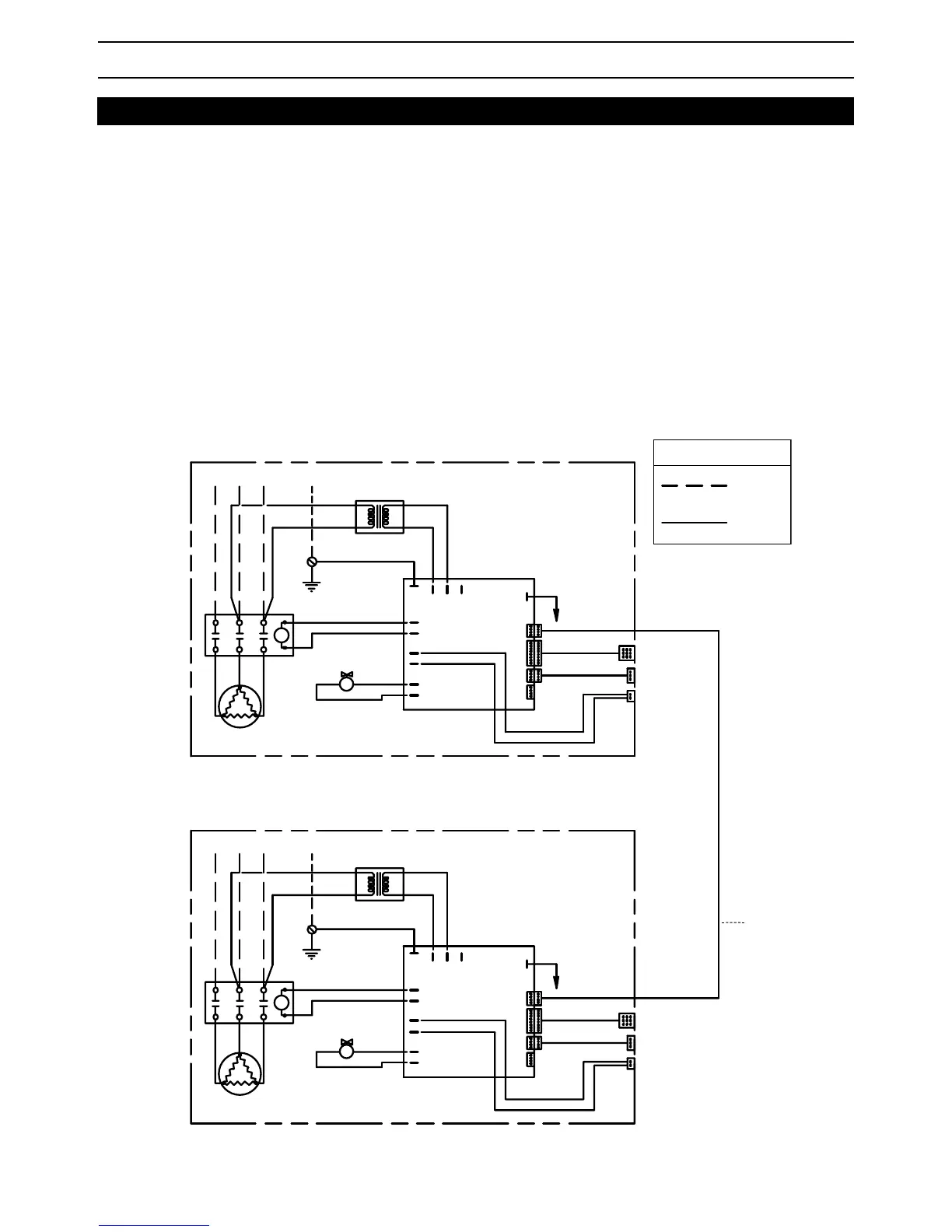

Wiring Diagram: MS-Super 4T, MS-Super 5T,
MS-Super 6T Three Phase Models
NOTE:
Cable length is 12 feet
