mr. steam MX4E - Wiring Diagrams

I N S T A L L E R
14
CONTACTOR
EXPRESS
STEAM
(optional)
3/4 PL
Terminal
Block
HEATING ELEMENT
TO PROBE
CIRCUIT BOARD
TRANSFORMER
TRANSFORMER
HEATER
THERMOSTAT
POWER INPUT
GROUND
WATER
FEED
SOLENOID
VALVE
FUSES
AutoFlush
(optional)
HomeWizard
iGenie (optional)
iSteam, AirTempo
iTempo/Plus or
iTempo Control

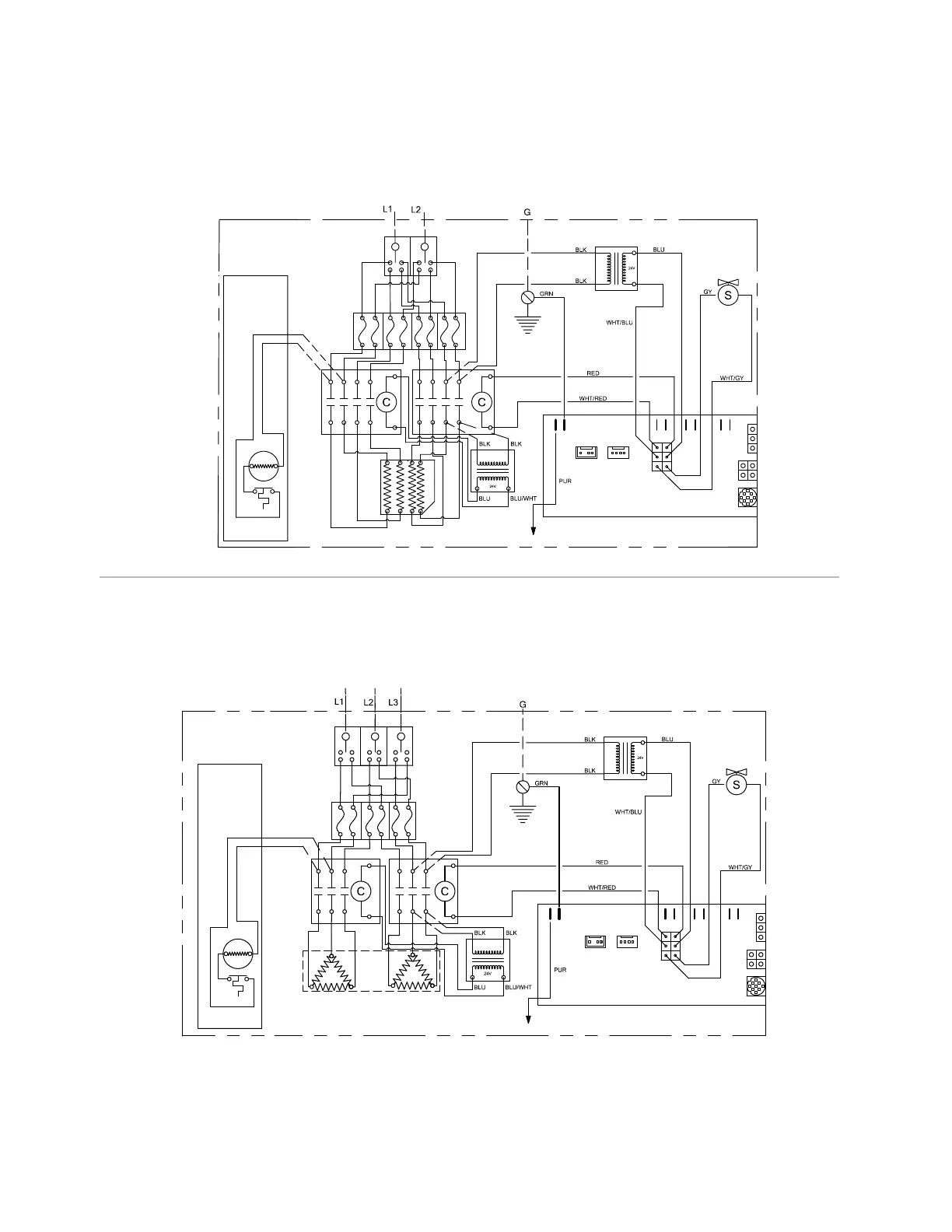

THREE PHASE 208/240 VOLT WIRING DIAGRAM
MODELS MX4E, MX5E, MX6E
mr
.
steam
®
Installation, Operation & Maintenance Manual
__________________________________________________________________________
CONTACTOR
EXPRESS
S
TEAM
(
optional)
2
/4PL
Terminal
Block
H
EATING ELEMENT
T
O PROBE
CIRCUIT BOARD
AutoFlush
HomeWizard
iGenie (optional)
iSteam, AirTempo
iTempo/Plus or
iTempo Control
TRANSFORMER
TRANSFORMER
HEATER
THERMOSTAT
POWER INPUT
GROUND
WATER
FEED
S
OLENOID
VALVE
FUSES
SINGLE PHASE 208/240 VOLT WIRING DIAGRAM
M
ODELS MX4E, MX5E, MX6E
