mr. steam MX4E - Clearance Specifications

I N S T A L L E R
7
All drawings are for illustrative purposes only
mr
.
steam
®
Installation, Operation & Maintenance Manual
__________________________________________________________________________
24
”
Min.
Service Area Clearance
18
”
Min.
Service Area Clearance
21
”
Min. Ceiling Height
Clearance Area
58
”
Min.
Clearance Area
0
”
Min.
Provide a minimum of
12 inches of clearance
as required for steam
piping, drain,
AutoFlush, water feed
and pressure
relief plumbing

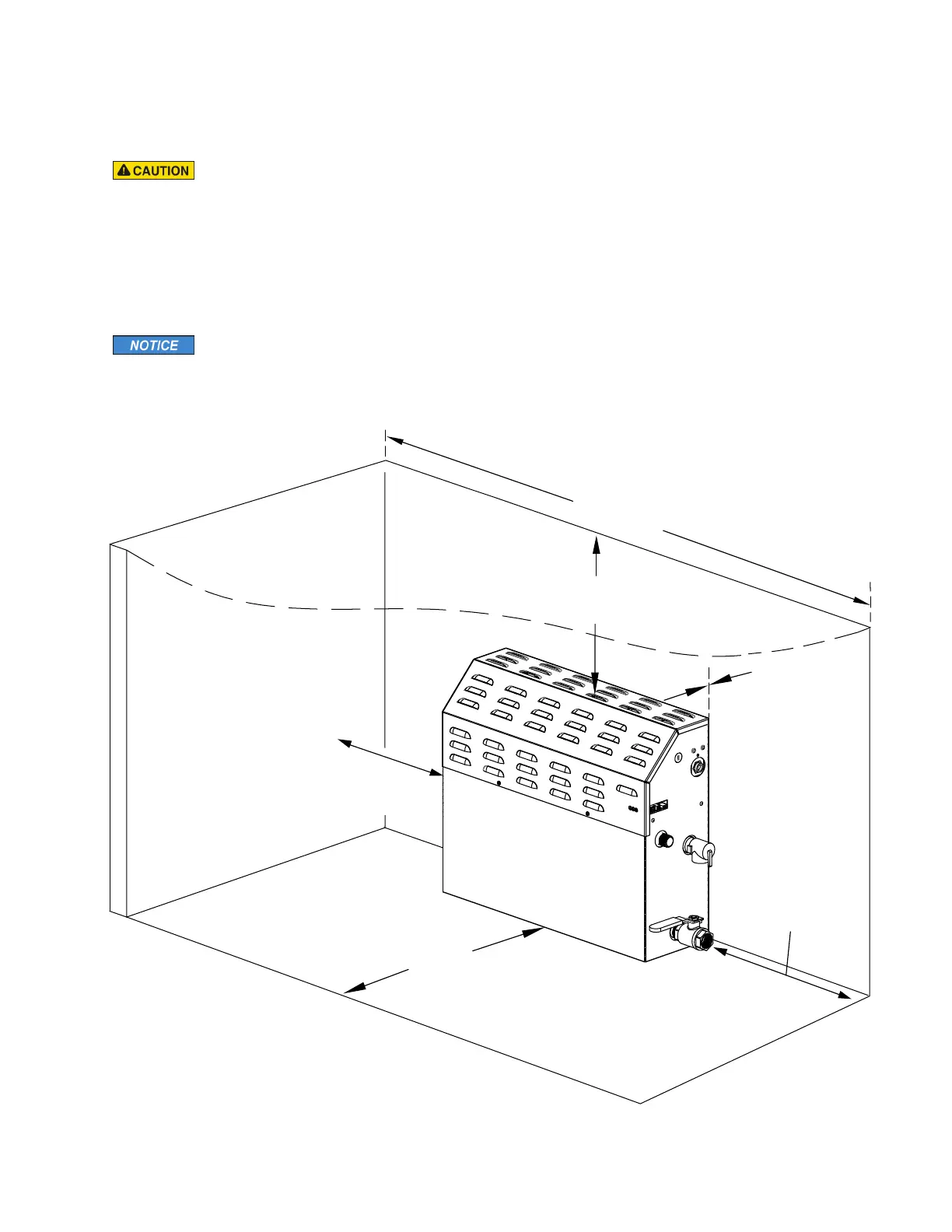

STEAM GENERATOR CLEARANCE SPECIFICATIONS
Applies to 1-2
1. Do not install MAX series inside a vanity or other small enclosed spaces. Do
not install under the steam room bench. Installing the MAX steam generator in
a small enclosed space may result in elevated temperatures and an inoperable
steam generator.
2. Locate the MAX series generator in a room with ventilation as required to pre-
vent an increase in ambient temperature. Failure to provide adequate ventila-
tion may result in elevated temperature and an inoperable steam generator.
Applies to 3-4
3. Minimum Clearance from Combustible Surfaces is zero all around.
4. For ease of servicing and installation, MrSteam recommends a minimum
clearance around the steam generator as shown.
