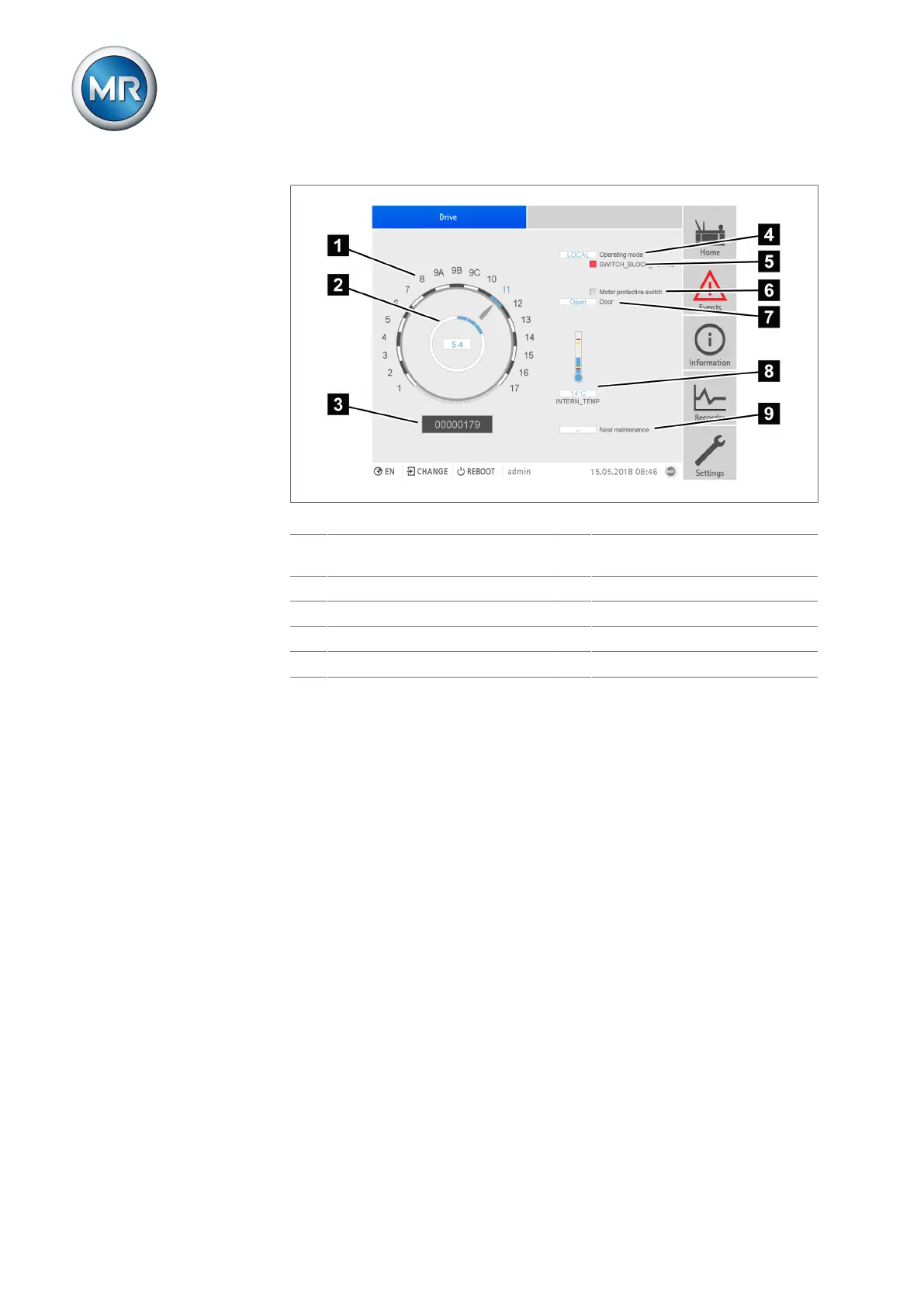

Figure100: Drive overview
1 Tap position 2 Tap-change indicator section
(SSE)
3 Operation counter 4 Operating mode
5 Switching blocking 6 Motor protective switch
7 Door open/closed 8 Temperatures
9 Next maintenance
► Go to Information > Motor and control cabinet > Drive.
9.13 Displaying power characteristics
You can display the recorded power characteristics of the motor-drive unit
for the last 1000 tap-change operations. The following data is displayed:
▪ Tap position
▪ Active power of motor-drive unit
▪ Active power limit value
