5.4.6.2 Connecting the micro-switches using the M plug (Compact RM)

Devices with a plug connection may be set up with either only

extra-low-voltage circuits or only low-voltage circuits using the

device plug.

In order to connect the M plug, proceed as follows:

1. NOTICE! Damage to cables and conductors! When installing the M plug

connector on the M plug, the cable can twist. Twisting can cause cable

breaks. Push the plug connector onto the device plug, hold the cable and

turn the threaded cap clockwise to the stop. The cable may not rotate

while this is happening.

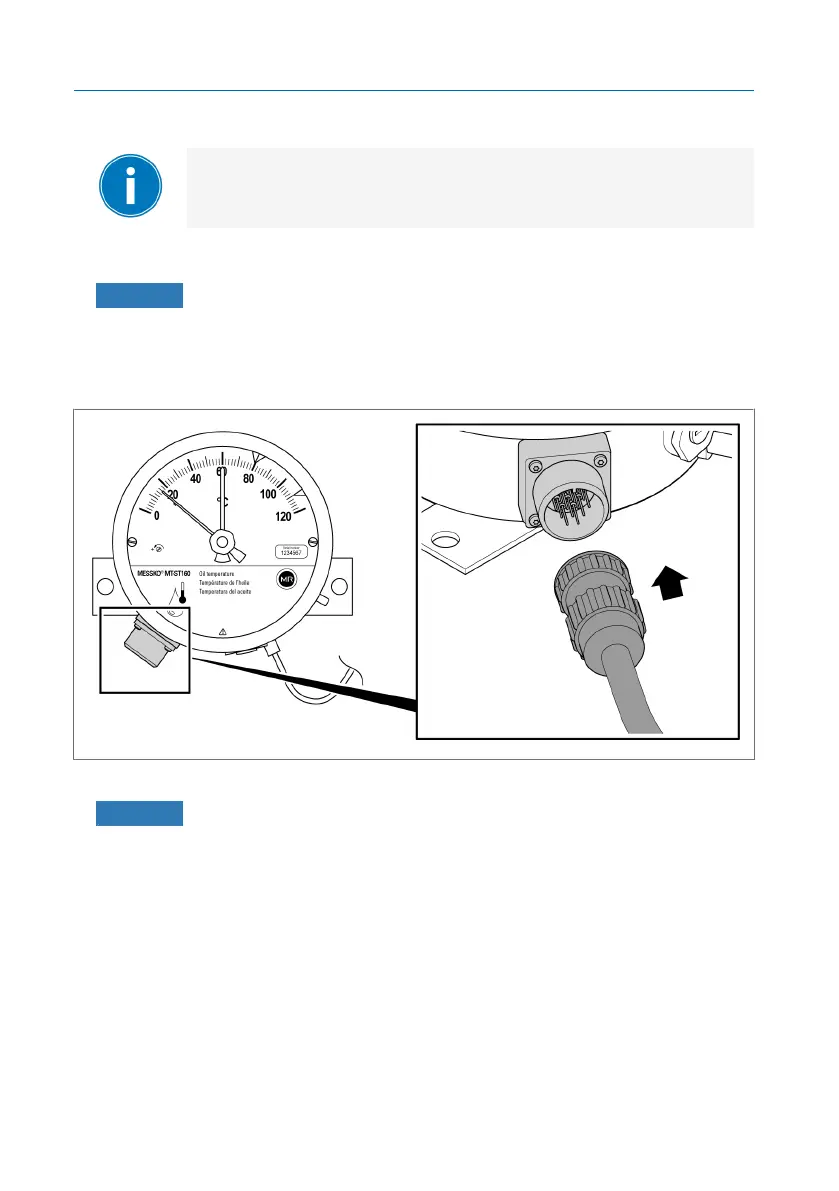

Figure40: Connecting the M plug

2. NOTICE! Interruption of the plug connection! If the connection cable is

not routed and secured sufficiently, the plug connector can be ripped out

of the housing plug. Secure the connection cable sufficiently and make

sure that the plug connector is not under tension.
