5 Installation and commissioning
58 BA5831400-00 EN
To connect the micro-switches, proceed as follows:
1. NOTICE! Damage to cables and conductors! When installing the ANSI
plug connector on the ANSI plug, the cable can twist. Twisting can cause
cable breaks. Push the plug connector onto the device plug, hold the ca-
ble and turn the threaded cap clockwise to the stop. The cable may not ro-
tate while this is happening.

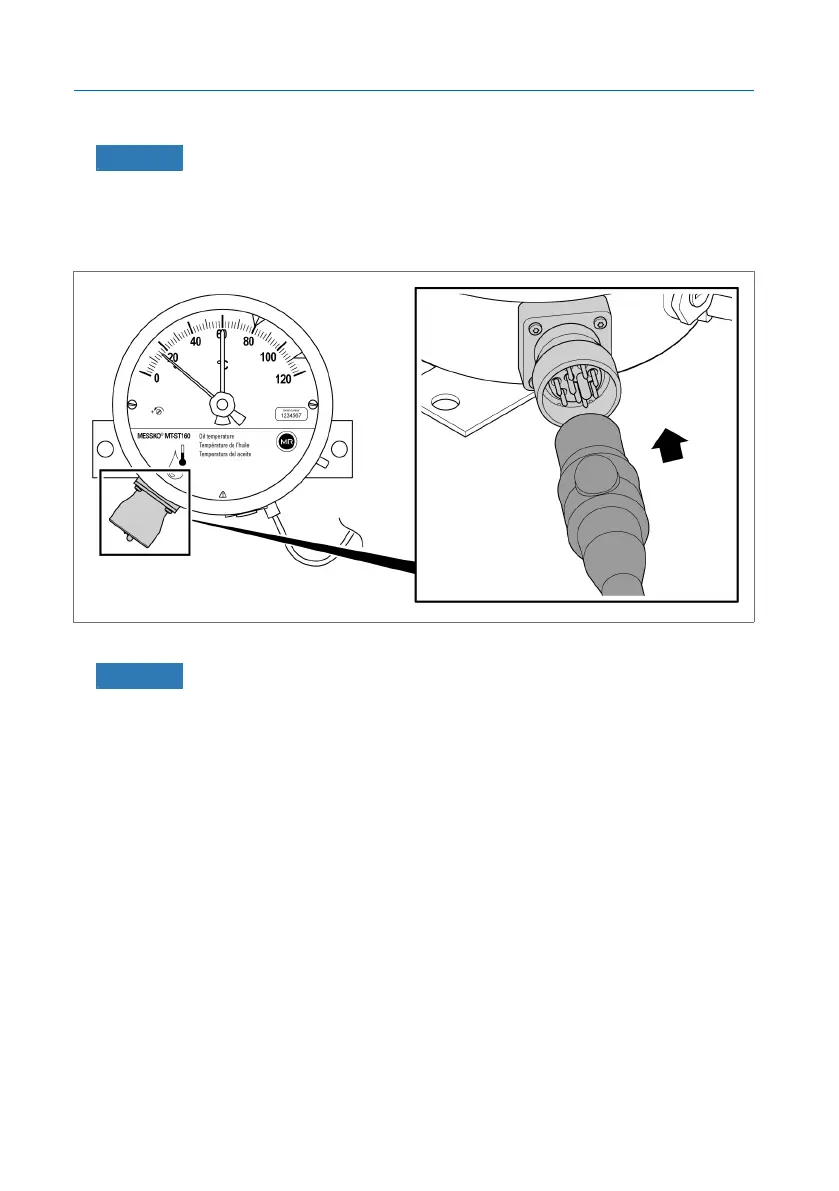

Figure42: Connecting the ANSI plug
2. NOTICE! Interruption of the plug connection! If the connection cable is
not routed and secured sufficiently, the plug connector can be ripped out
of the housing plug. Secure the connection cable sufficiently and make
sure that the plug connector is not under tension.
