MR MESSKO MT-ST Compact RM User Manual

5 Installation and commissioning
66 BA5831400-00 EN
Setting curve for the heating current
The heating current to be set is given by the following setting curve based on
the required temperature gradientgr:
5
10
15
20
25
0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6
30
[K]
40
I
gr
H
35
[A]

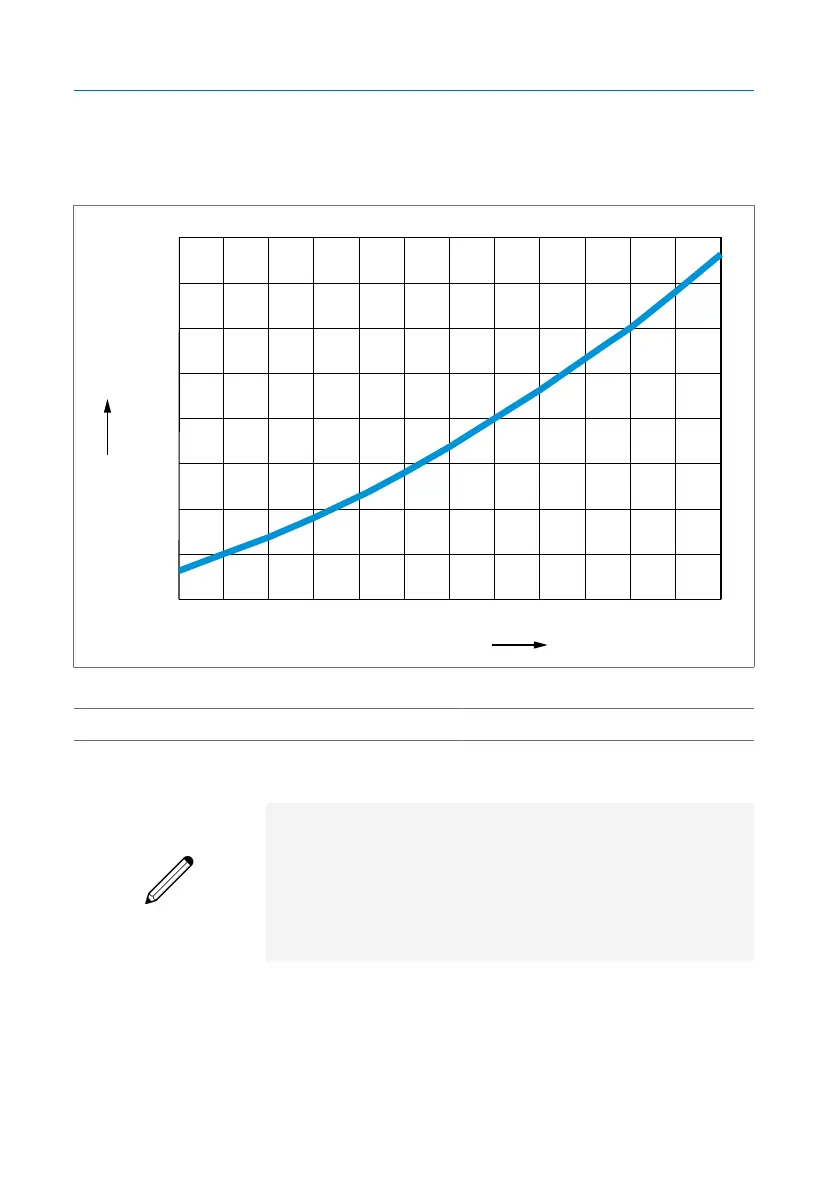

Figure49: Setting curve
gr Temperature gradient I
H
Heating current
Example:
Temperature read: 30°C
Required temperature gradient: 20K
Required display temperature: 30°C + 20K = 50°C
Nominal secondary transformer current: 2.0A
Heating current from setting curve: 1.1A
Setting temperature gradients
ü Make sure that the temperature on the temperature sensor remains con-
stant during the setting process.
ü Open the cover plate.
