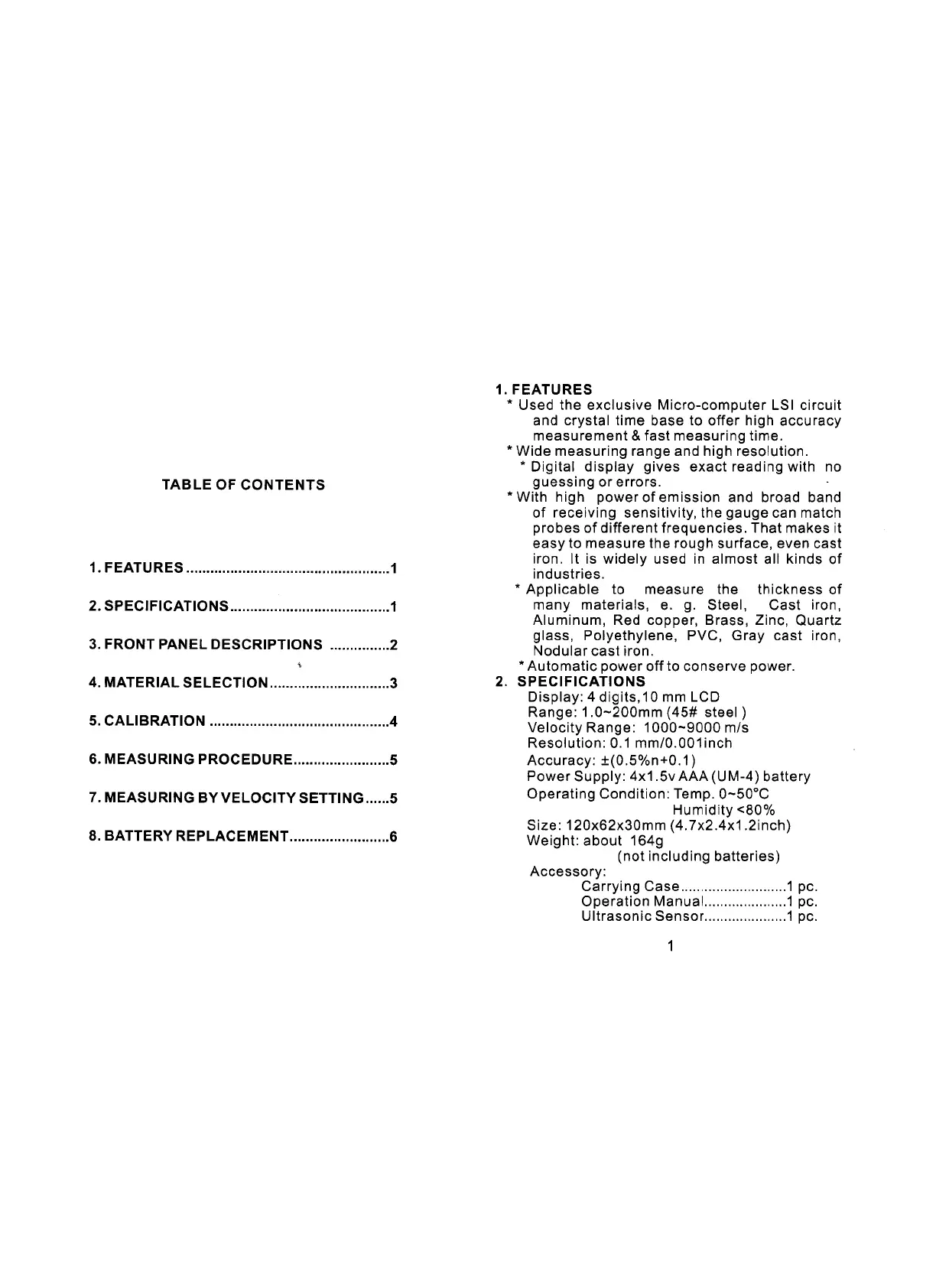

TABLE
OF
CONTENTS
1.
FEATURES
1
2.
SPECIFICATIONS
1
3.
FRONT PANEL DESCRIPTIONS
2
•%
4.
MATERIAL SELECTION
3
5.
CALIBRATION
4
6.
MEASURING PROCEDURE
5
7.
MEASURING
BY
VELOCITY SETTING
5
8.
BATTERY REPLACEMENT
6
FEATURES
*
Used
the
exclusive Micro-computer
LSI
circuit
and
crystal time base
to
offer high
accuracy
measurement
&
fast measuring time.
*
Wide measuring range
and
high resolution.
*
Digital display gives exact reading with
no
guessing
or
errors.
'With
high power
of
emission
and
broad band
of
receiving sensitivity,
the
gauge
can
match
probes
of
different frequencies. That makes
it
easy
to
measure
the
rough surface, even
cast
iron.
It is
widely used
in
almost
all
kinds
of
industries.
*
Applicable
to
measure
the
thickness
of
many
materials,
e. g.
Steel, Cast iron,
Aluminum,
Red
copper, Brass, Zinc,
Quartz
glass, Polyethylene, PVC, Gray cast
iron,
Nodular cast iron.
*
Automatic power
off to
conserve power.
SPECIFICATIONS
Display:
4
dig
its,
10 mm LCD
Range:
1.0~200mm
(45# steel
)
Velocity Range:
1000-9000
m/s
Resolution:
0.1
mm/0.001inch
Accuracy:
±(0.5%n+0.1)
Power Supply:
4x1.5vAAA(UM-4)
battery
Operating Condition: Temp.
0~50°C
Humidity
<80%
Size:
120x62x30mm
(4.7x2.4x1.2inch)
Weight: about 164g
(not including batteries)
Accessory:
Carrying Case
1 pc.
Operation Manual
1 pc.
Ultrasonic Sensor
1 pc.
1
